Power Window Control System (Double Cab): Location

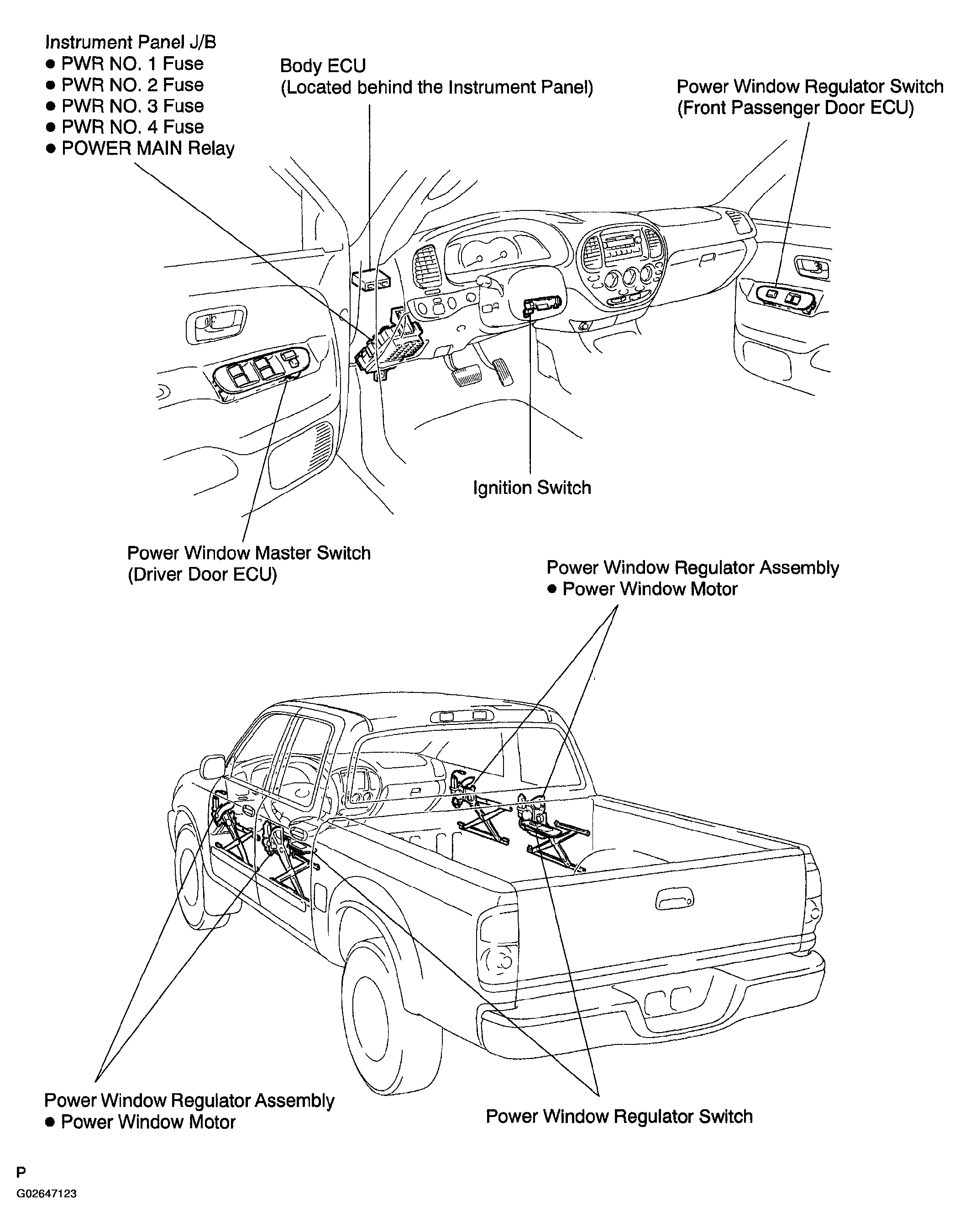

Fig 1: Locating Power Window Control System (Double Cab) Component

G02647123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
