Front Door: Components

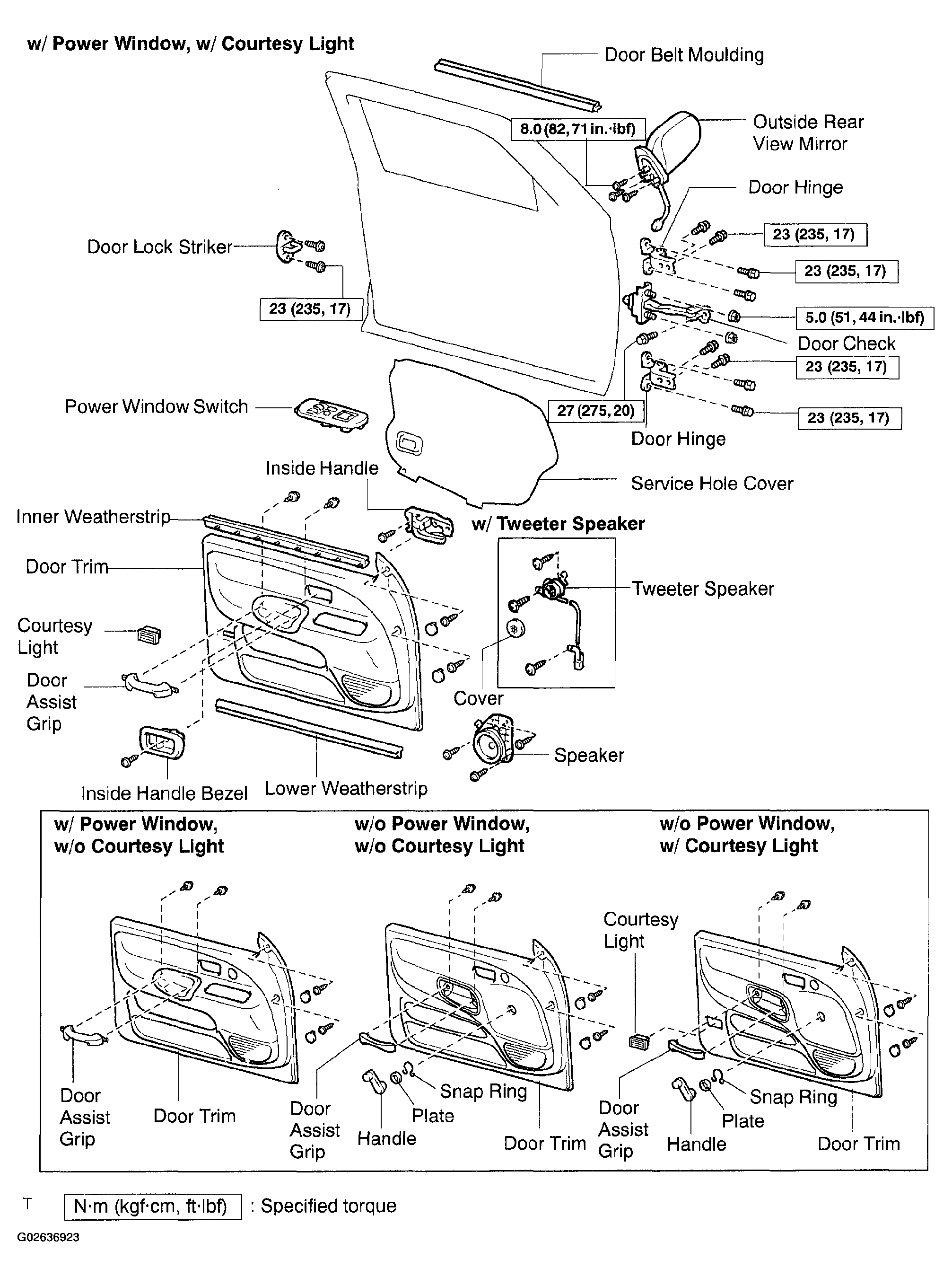

Fig 1: Exploded View Of Front Door Components (1 Of 2)
G02636923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

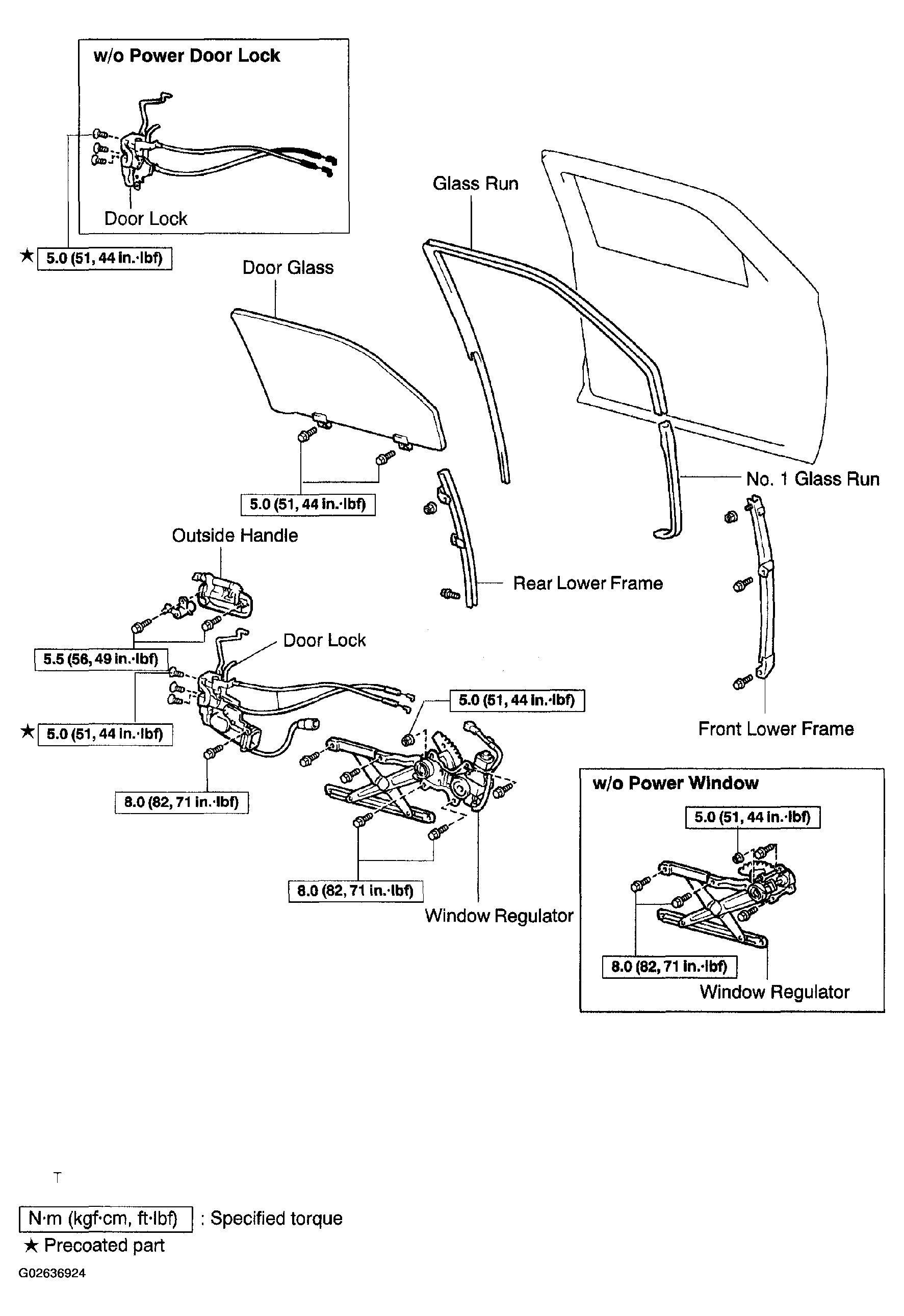

Fig 2: Exploded View Of Front Door Components (2 Of 2)
G02636924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
