Back Window Glass: Components

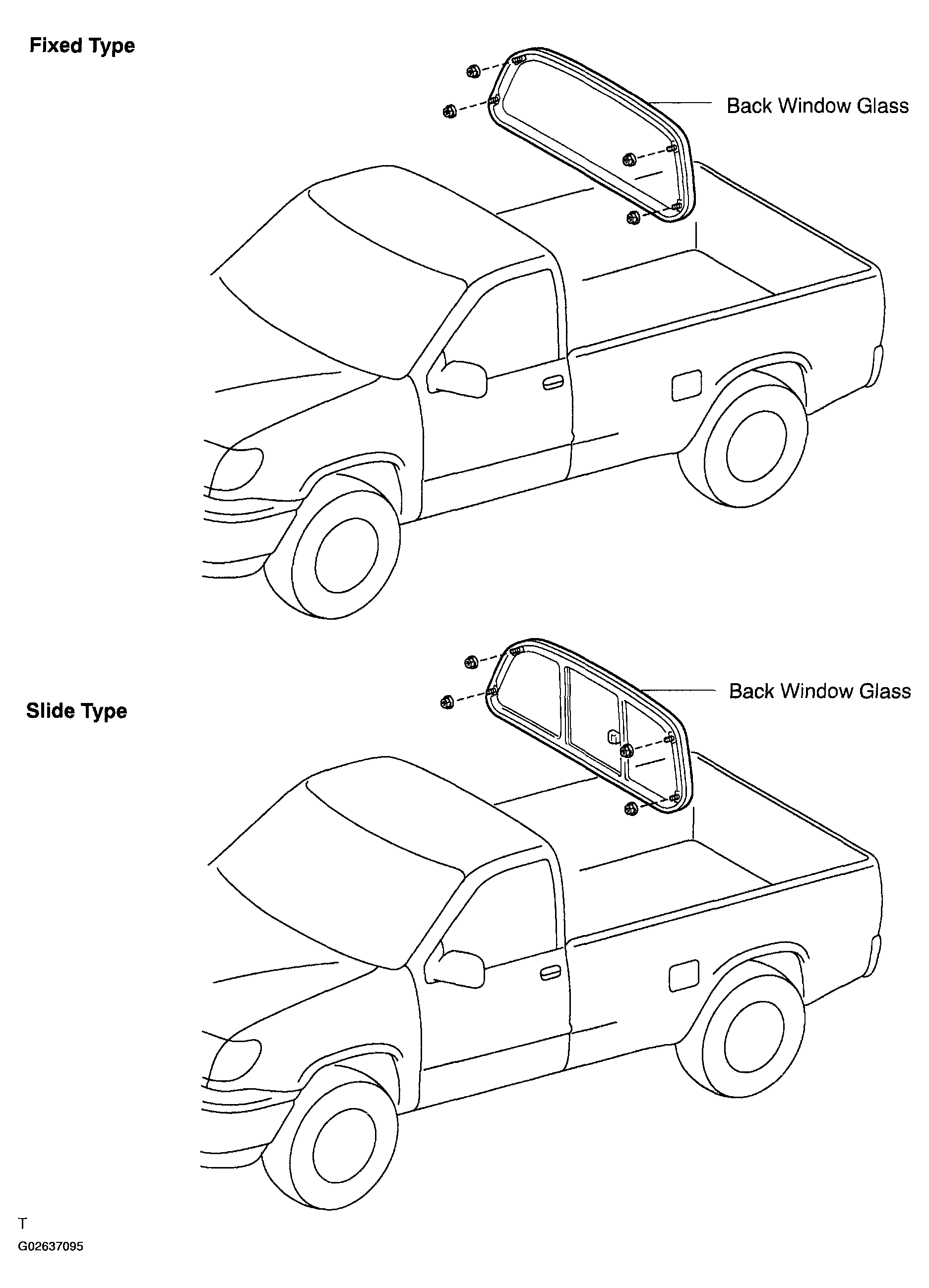

Fig 1: Identifying Components Back Window Glass
G02637095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

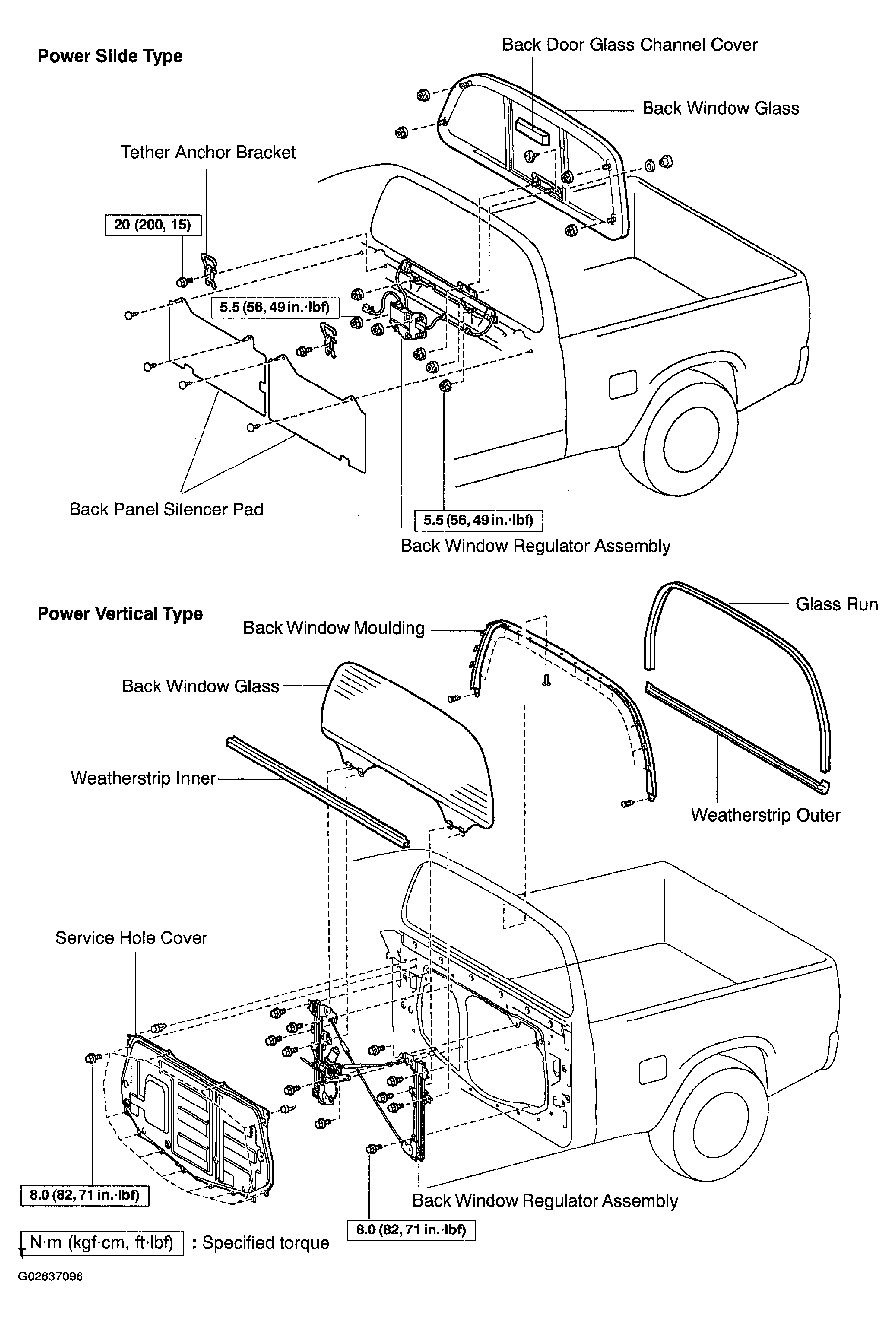

Fig 2: Replacement Components Back Window Glass With Torque Specifications
G02637096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
