Power Seat Control System: Location

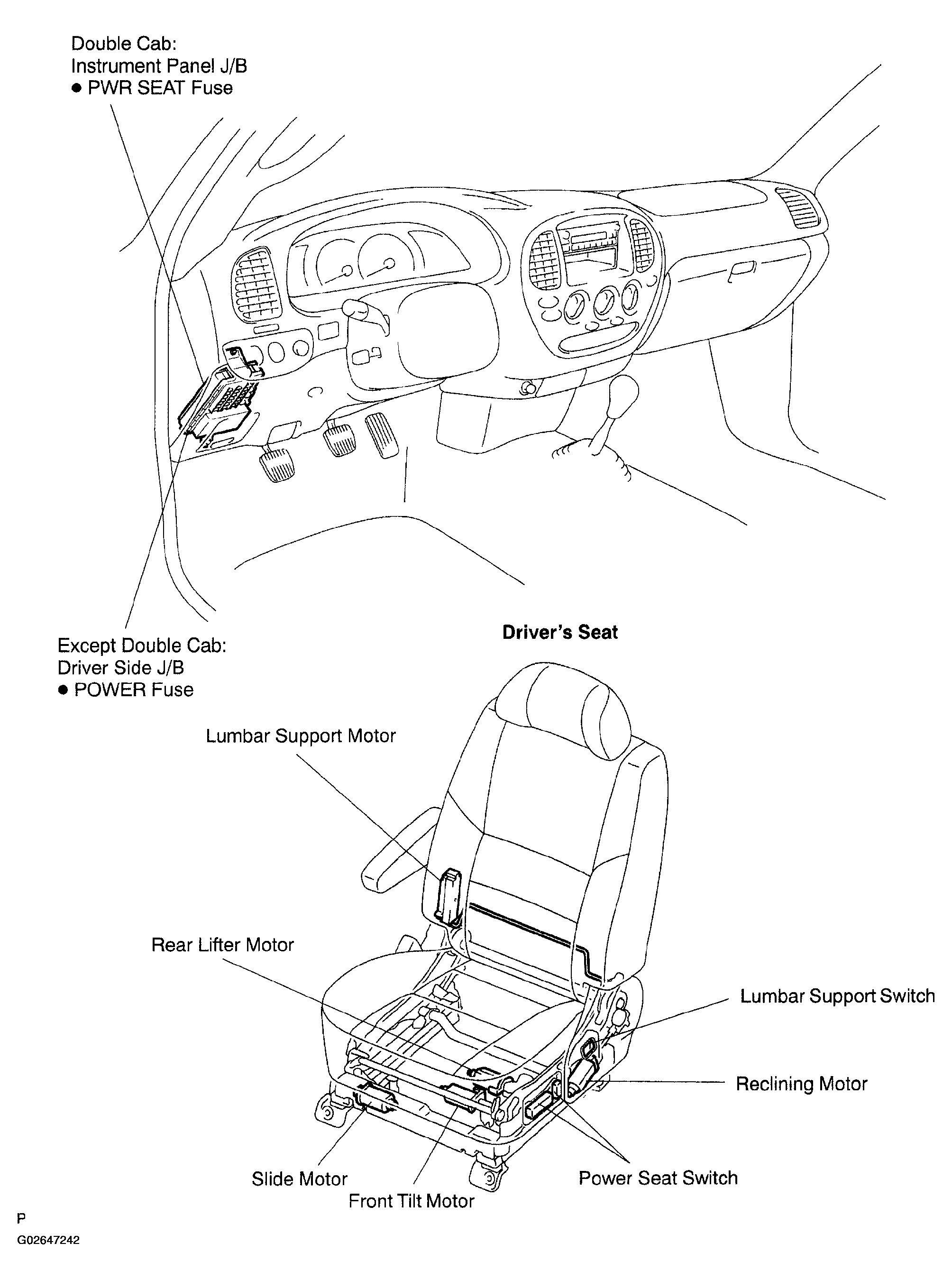

Fig 1: Identifying Power Seat Control System Location

G02647242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
