Transfer Assy: Components

WARNING: This page is about a different variant/trim than selected.

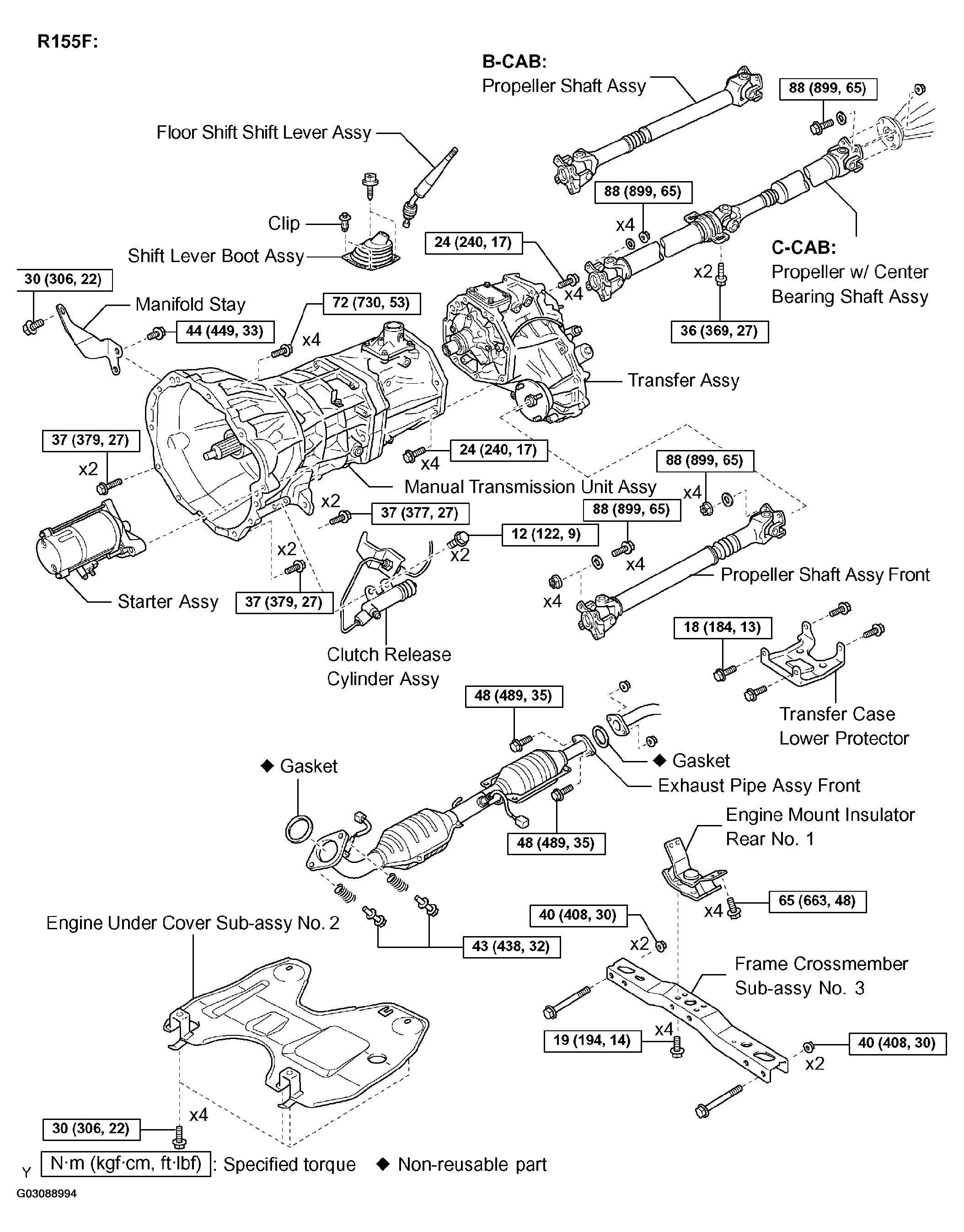

Fig 1: Exploded View Of Transfer Assy Replacement Components (R155F)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

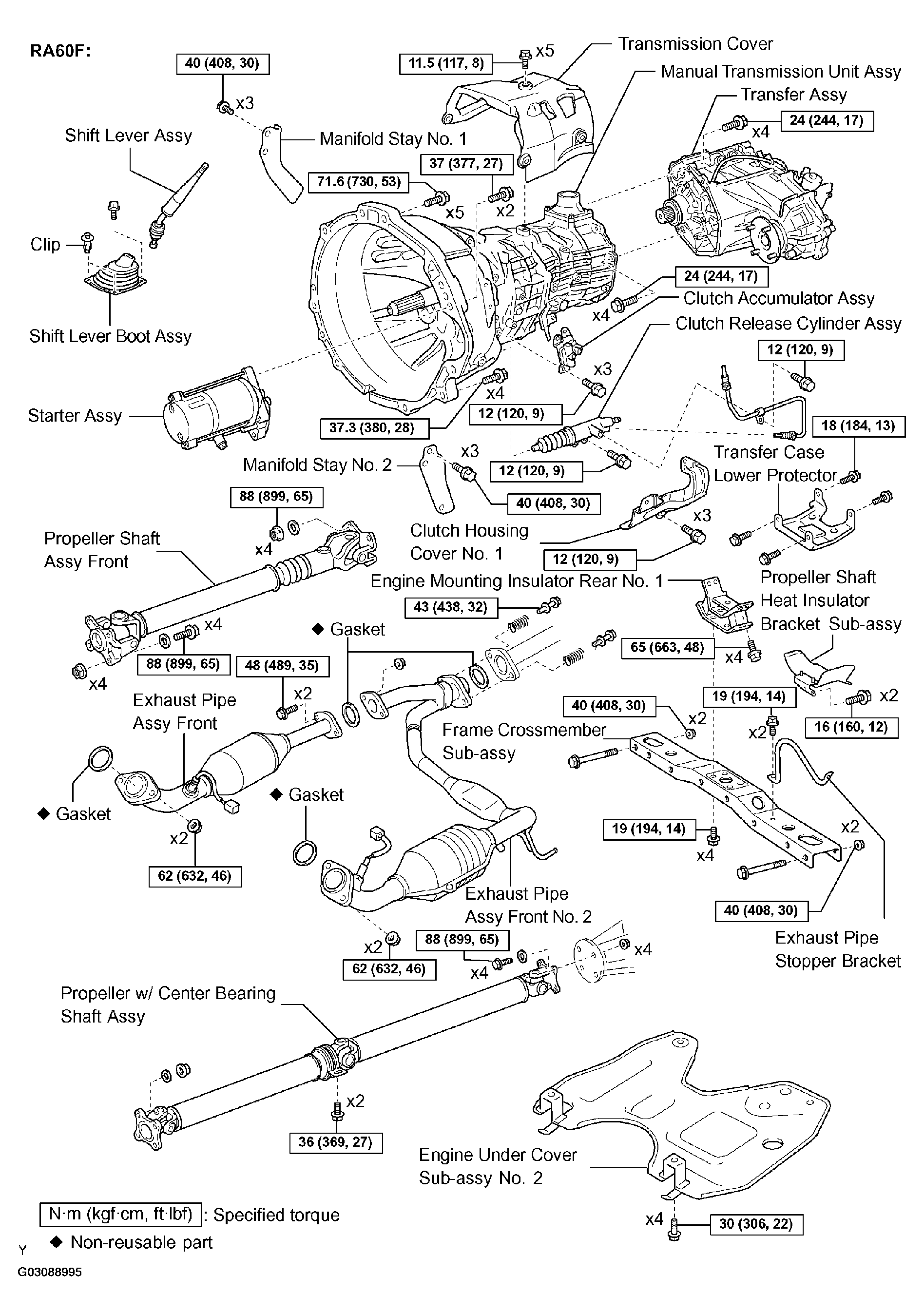

Fig 2: Exploded View Of Transfer Assy Replacement Components (RA60F)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

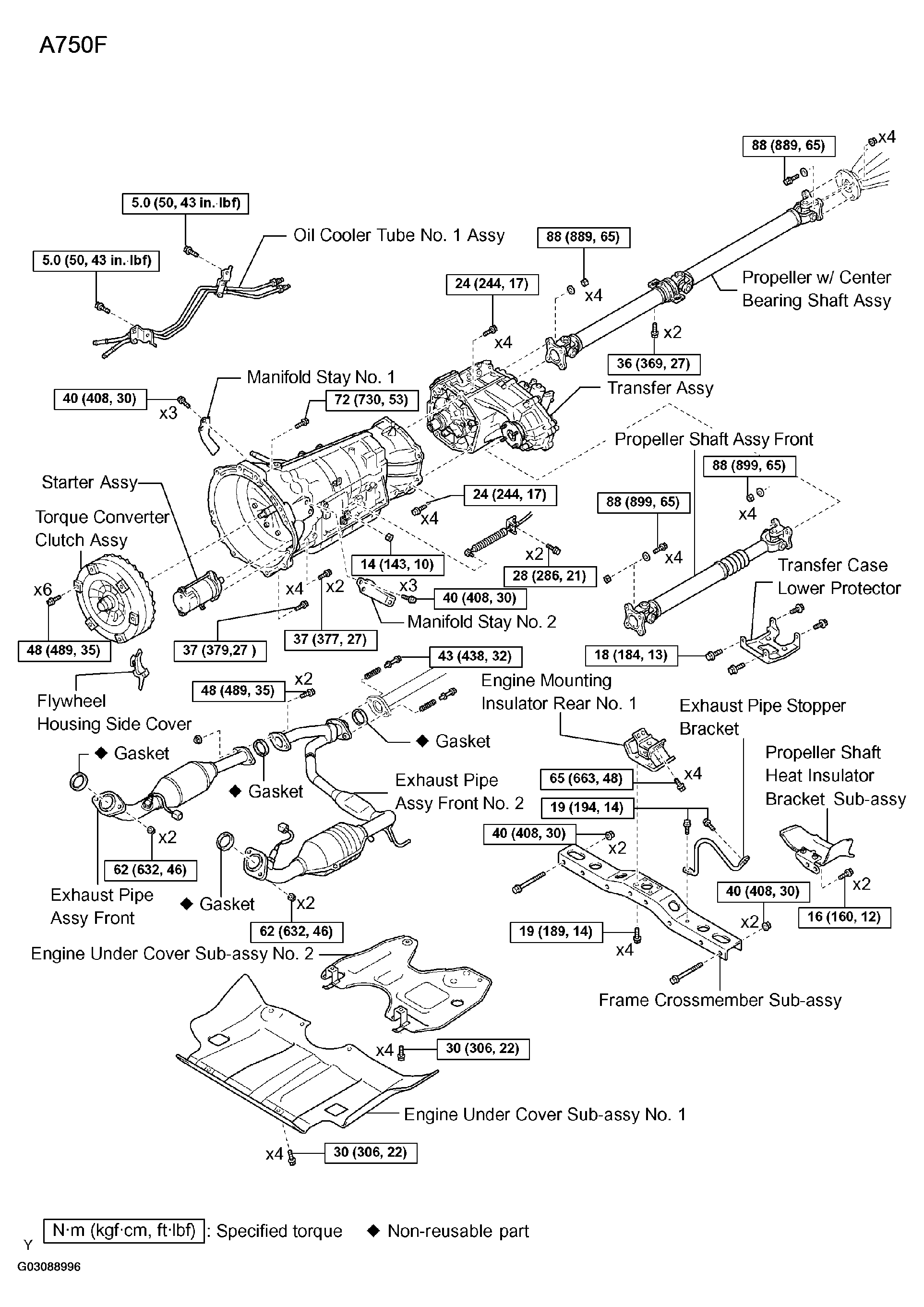

Fig 3: Exploded View Of Transfer Assy Replacement Components (A750F)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Exploded View Of Transfer Assy Interior Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Transfer Assy Interior Replacement Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

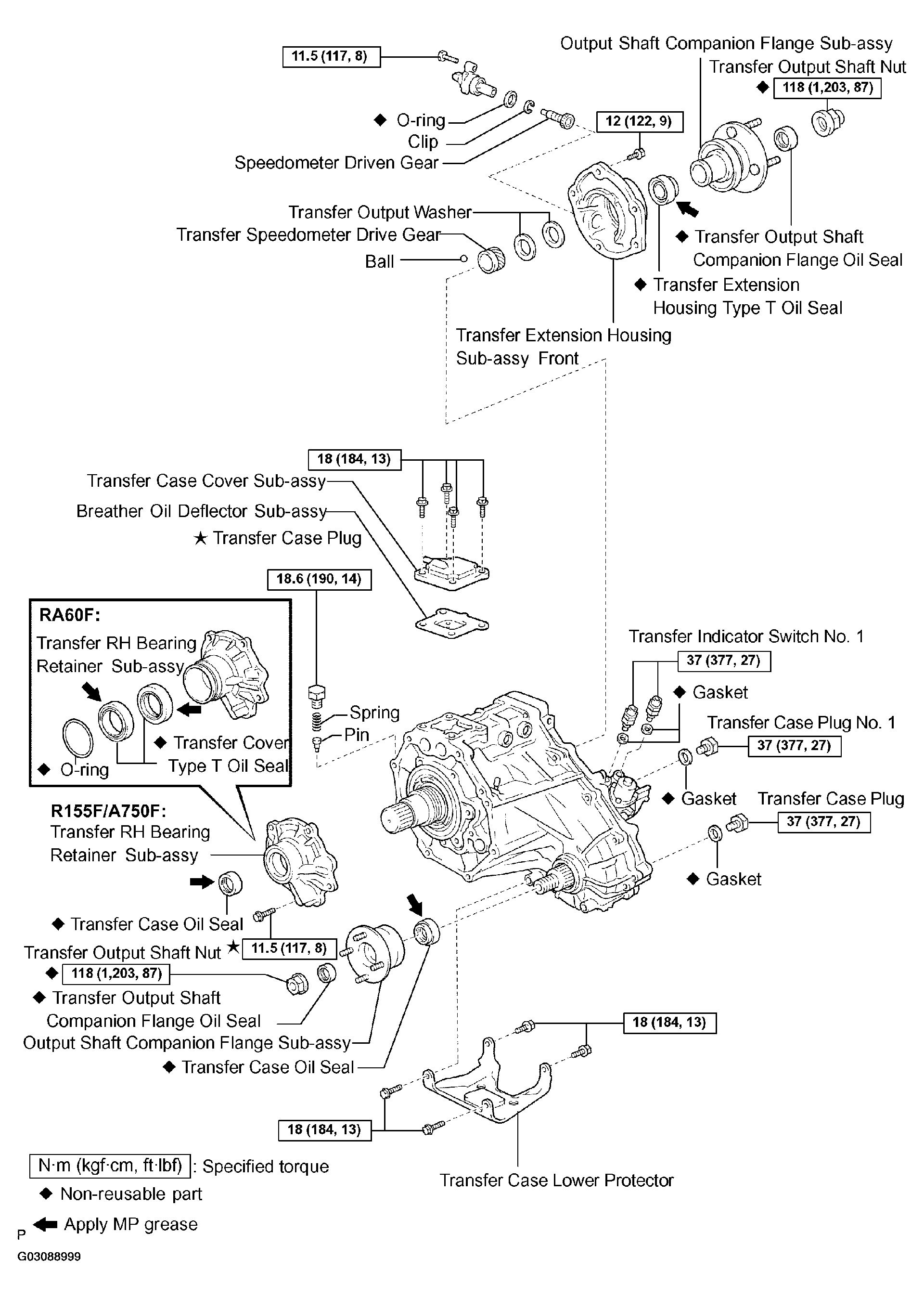

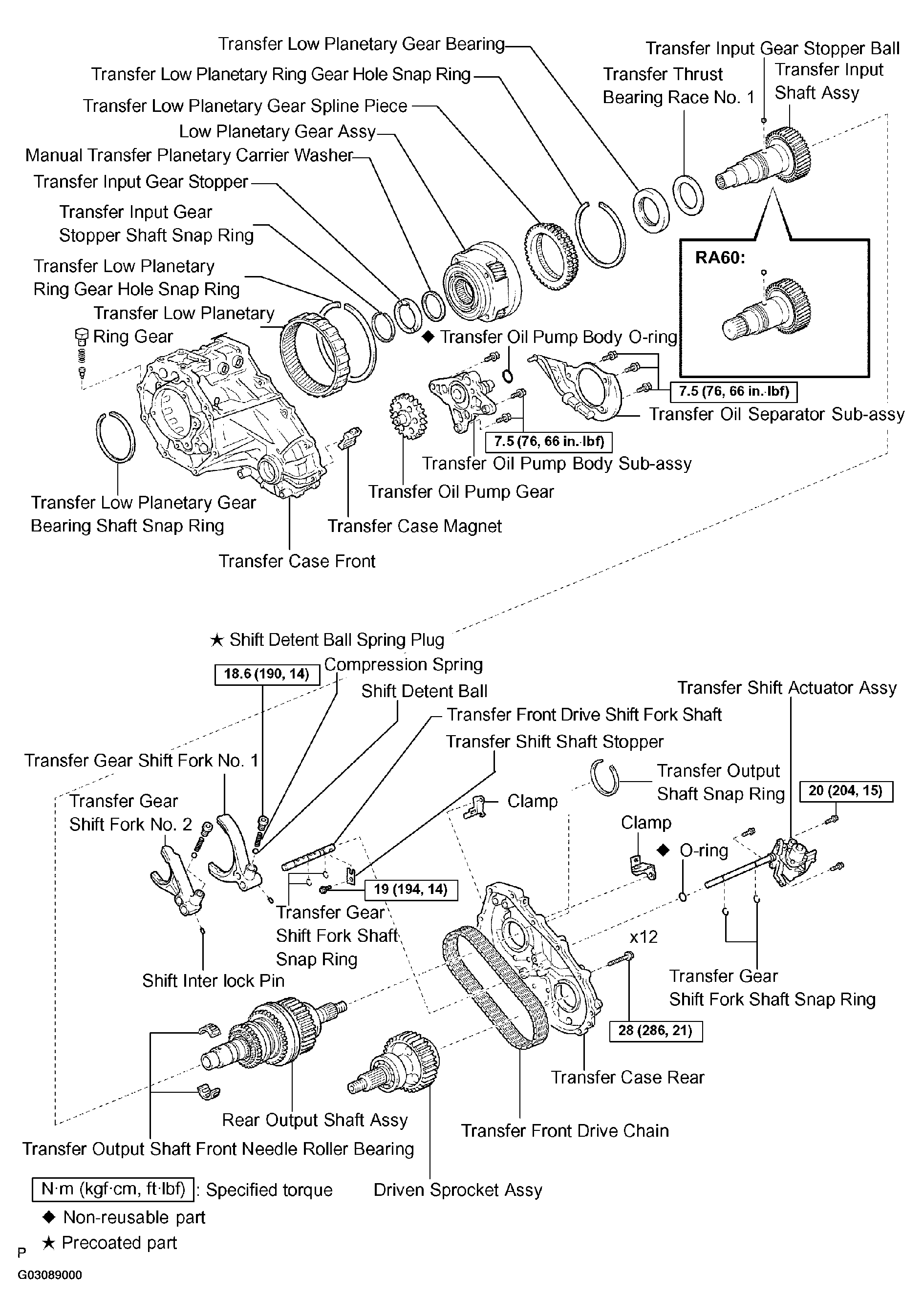

Fig 6: Exploded View Of Transfer Assembly (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Exploded View Of Transfer Assembly (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

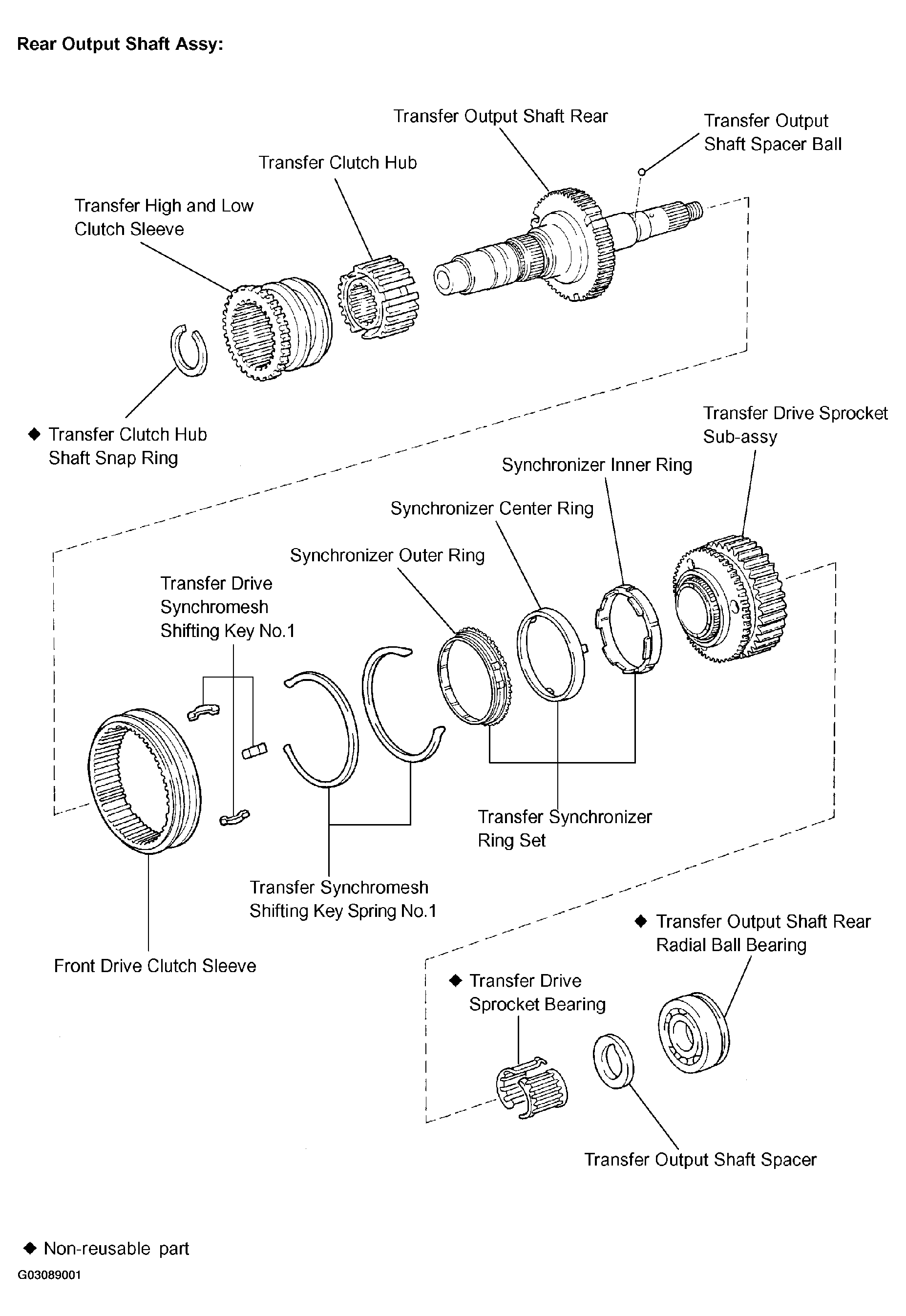

Fig 8: Exploded View Of Rear Output Shaft Assy

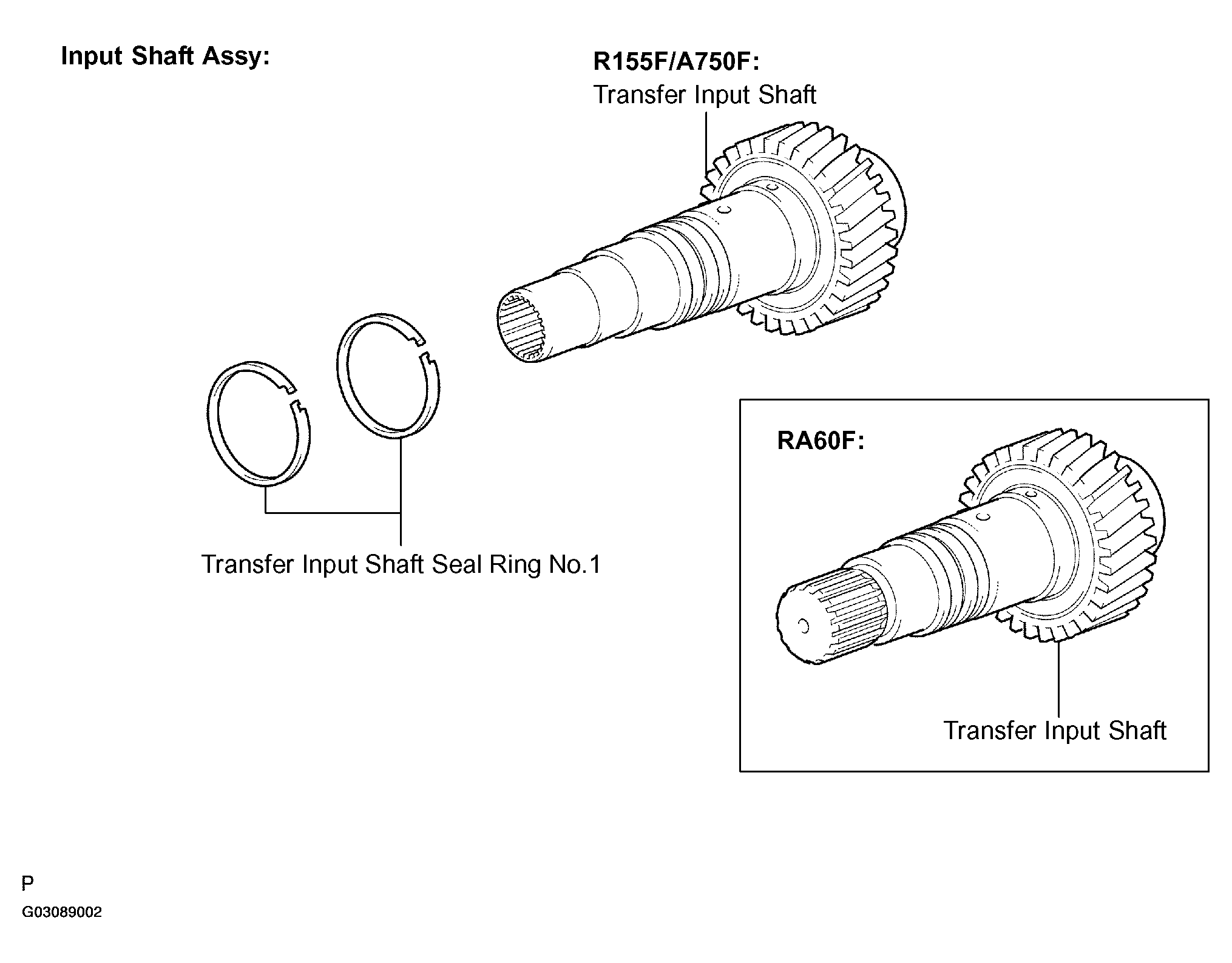

Fig 9: Exploded View Of Input Shaft Assy

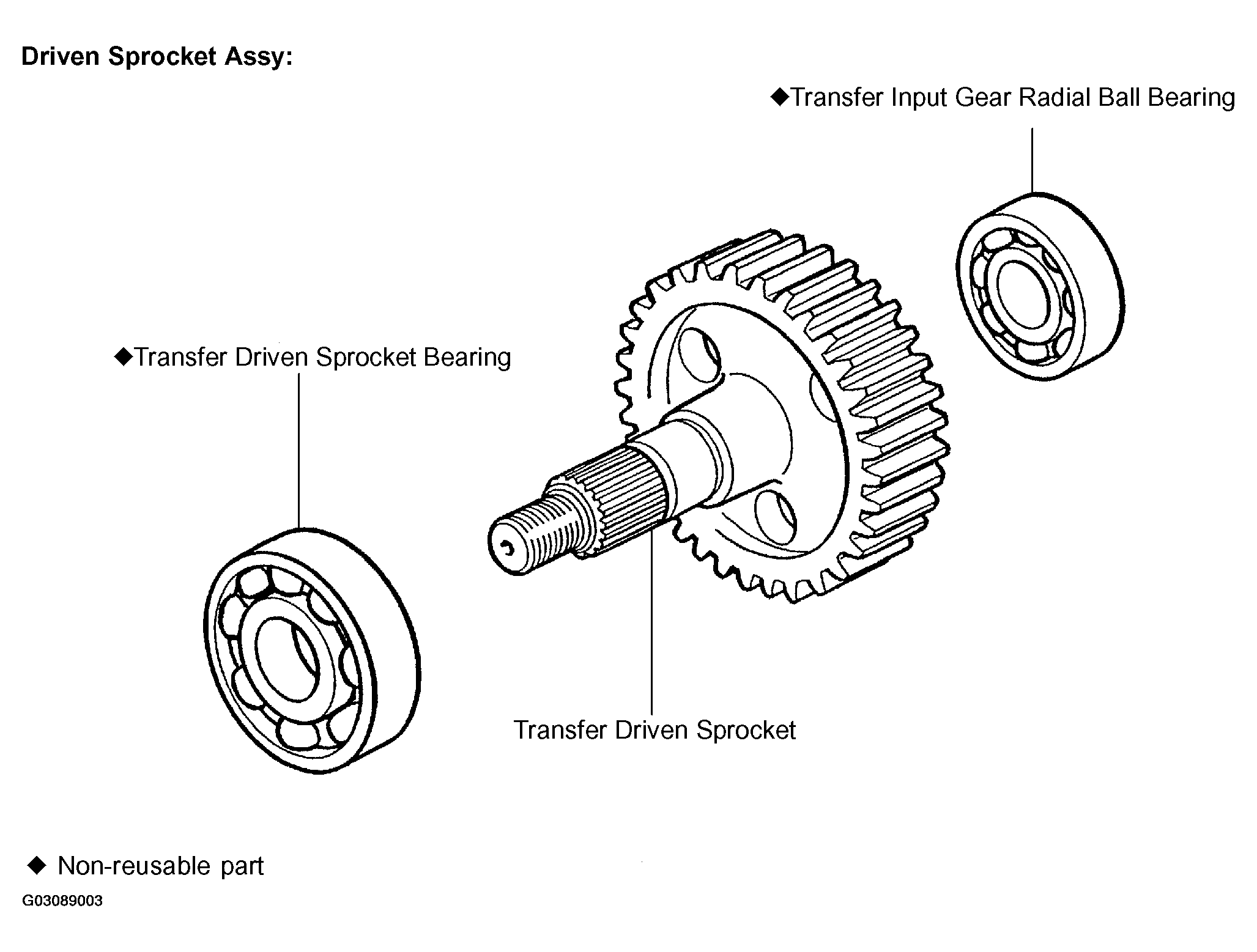

Fig 10: Exploded View Of Driven Sprocket Assy

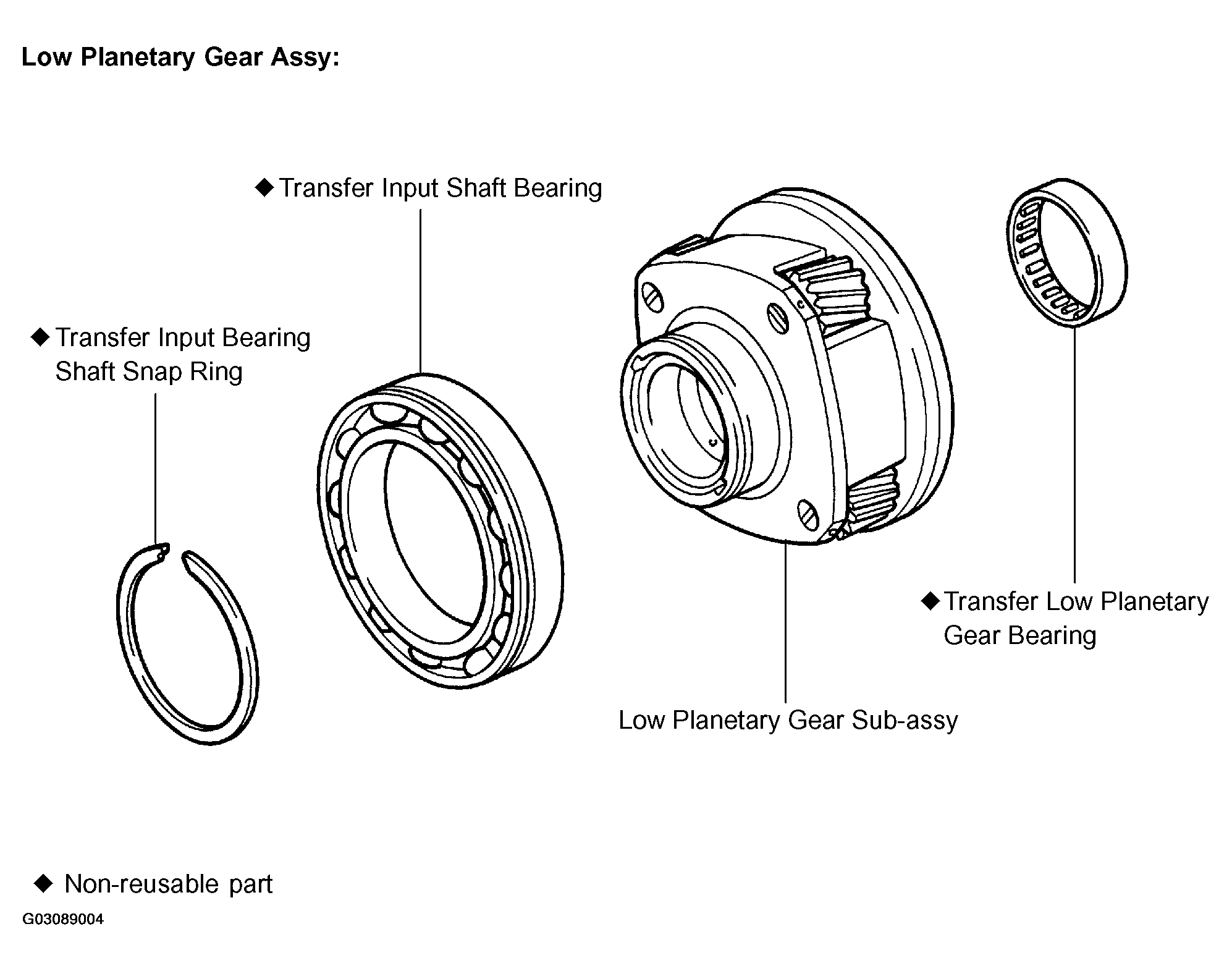

Fig 11: Exploded View Of Low Planetary Gear Assy
