Section 5 (Transfer Case)
>>
Select 2-4 And High-Low System
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

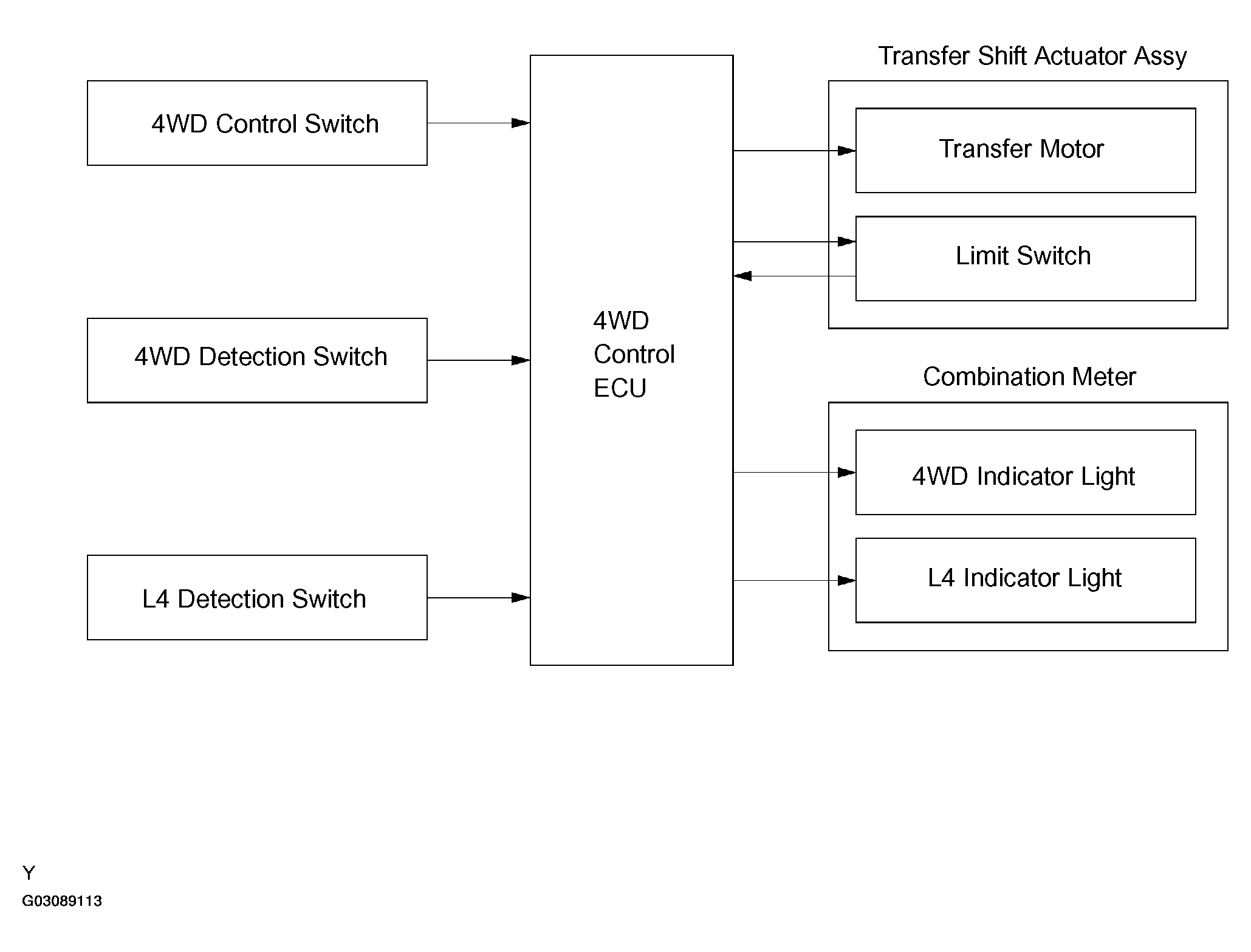

Fig 1: Select 2-4 And High-Low System - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
