Ignition System (2TR-FE)
>>
System Diagram
System Diagram

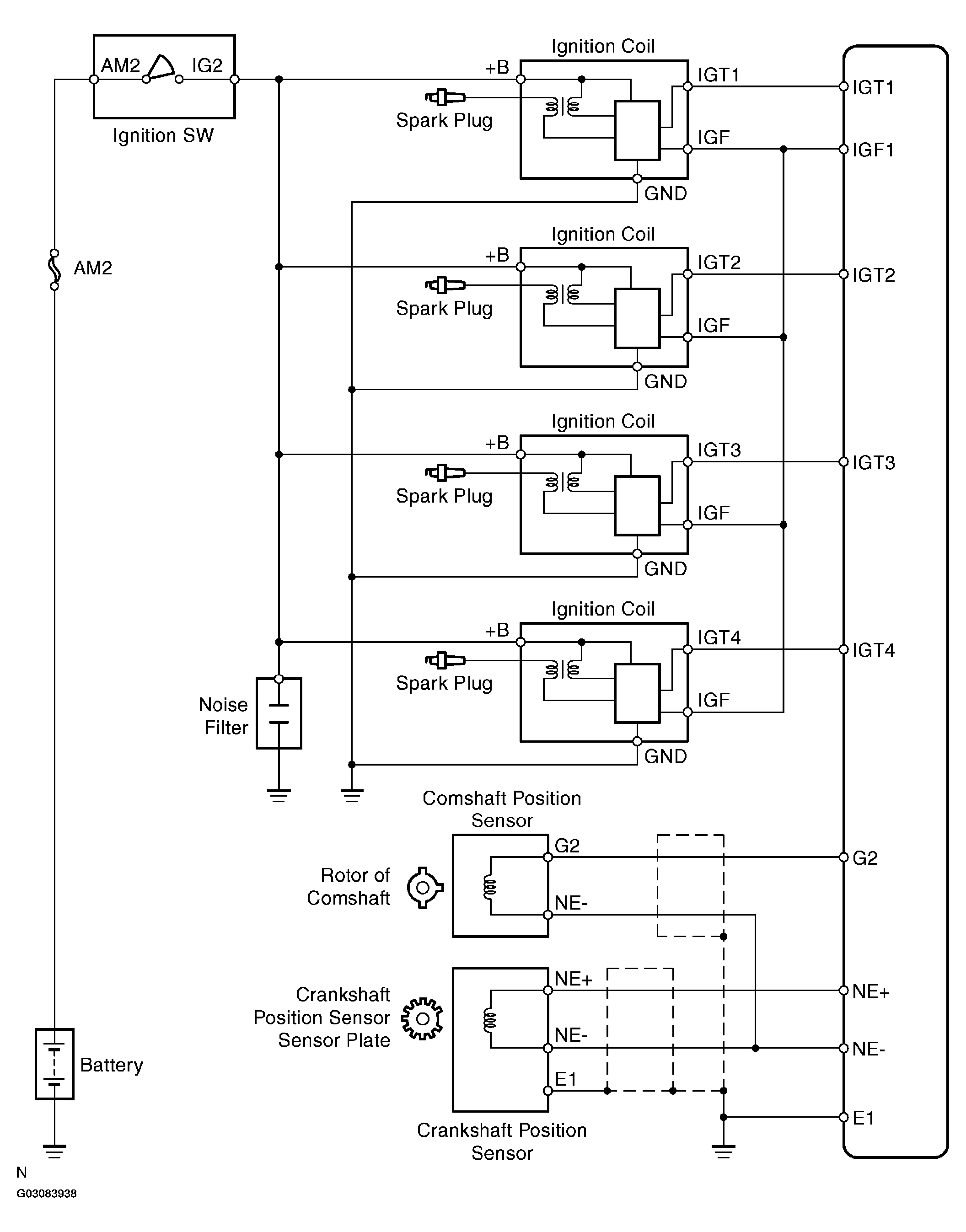

Fig 1: Identifying System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
