Crankshaft Position Sensor (2TR-FE): Replacement

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE ENGINE UNDER COVER SUB-ASSY NO. 1 (PRE RUNNER AND 4WD TYPE)
  3. REMOVE FAN AND GENERATOR V BELT (W/ AIR CONDITIONING)  (See REPLACEMENT )
  4. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING)  (See REPLACEMENT )
    Fig 1: Removing Engine Under Cover Sub-Assembly
    G03083945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE IDLE PULLEY ASSY W/BRACKET (W/ AIR CONDITIONING)

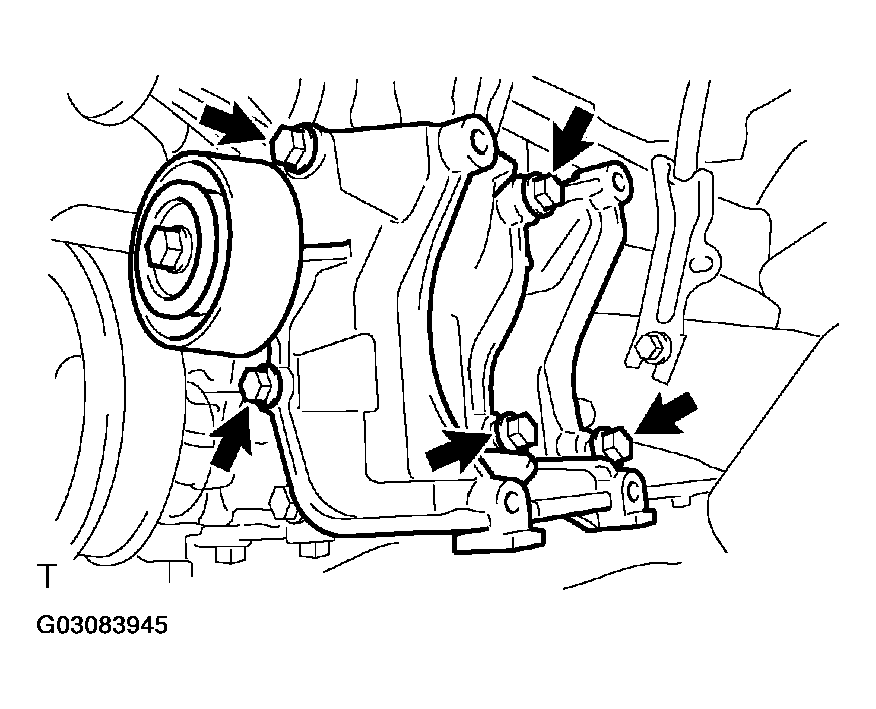

    1. Remove the 5 bolts, then remove the idle pulley with bracket.
      Fig 2: Removing Idle Pulley With Bracket
      G03083946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector and the 2 wire harness clamps.
      Fig 3: Disconnecting Crankshaft Position Sensor Connector
      G03083947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, then remove the crankshaft position sensor.
  7. INSTALL CRANKSHAFT POSITION SENSOR
    1. Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.
      Fig 4: Installing Crankshaft Position Sensor
      G03083948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the camshaft position sensor with the bolt.

      Torque: 8.5 N.m (87 kgf.cm, 75 in..lbf)

      NOTE: Make sure that the O-ring is not cracked or jammed when installing.

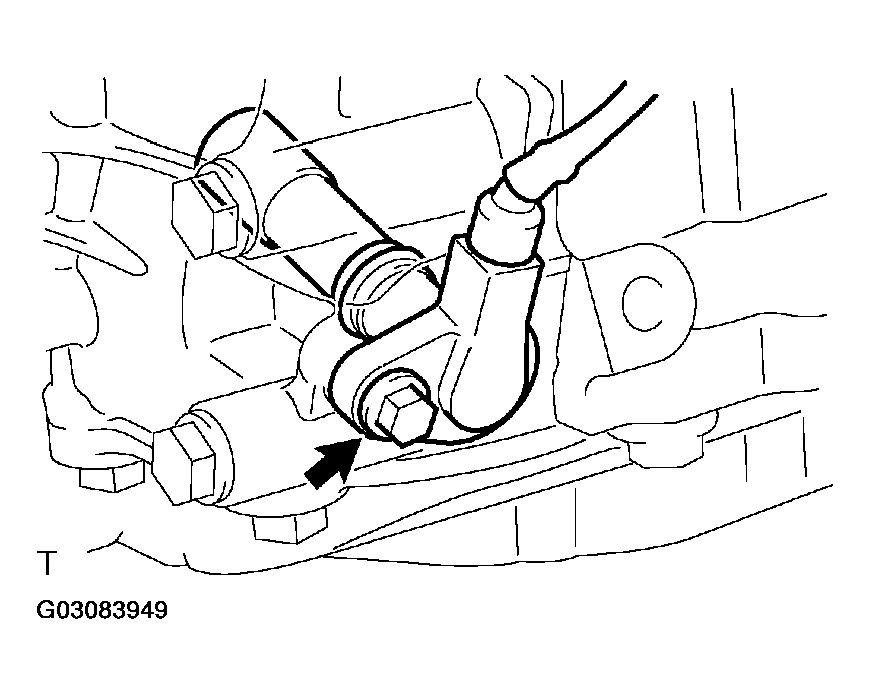

      Fig 5: Installing O-Ring
      G03083949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

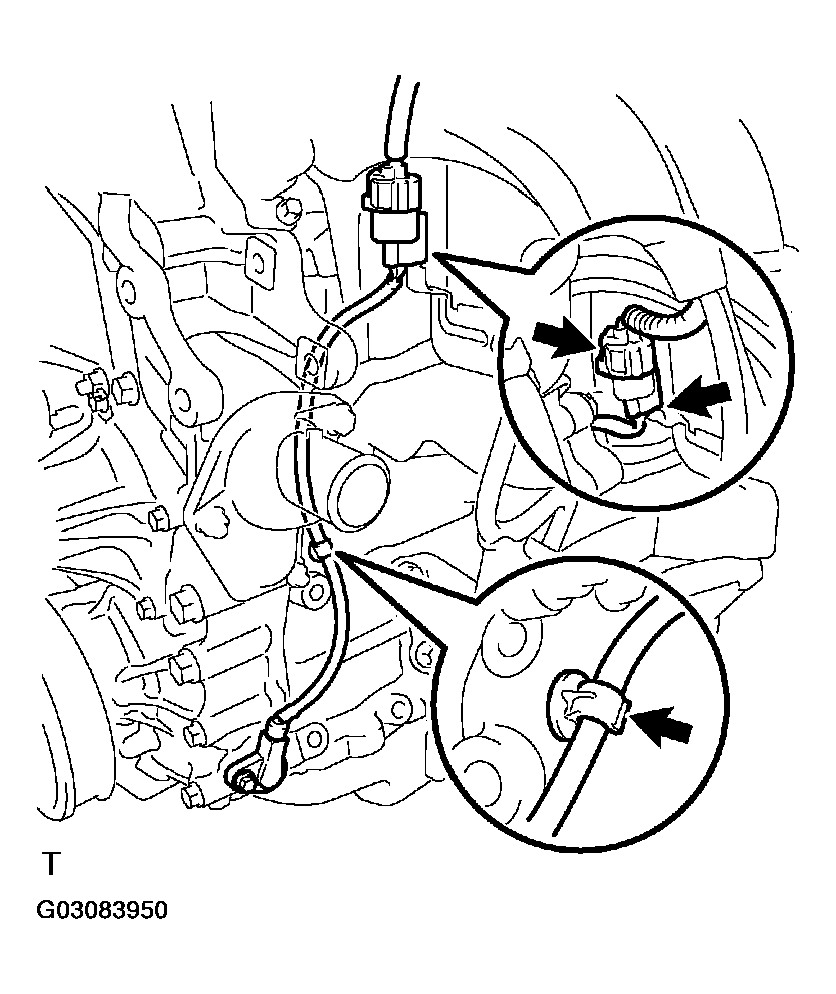

    3. Connect the crankshaft position sensor connector and the 2 wire harness clamps.
      Fig 6: Connecting Crankshaft Position Sensor Connector
      G03083950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL IDLE PULLEY ASSY W/BRACKET (W/ AIR CONDITIONING)

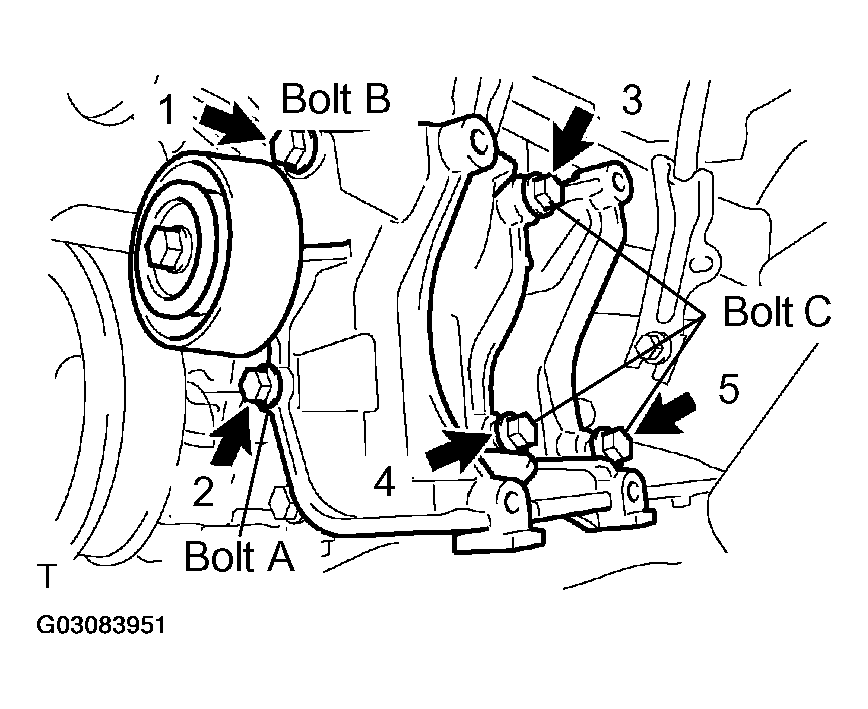

    1. Using several steps, uniformly install and tighten the 5 bolts in the sequence shown in the illustration.

    Torque:

    21 N.m (214 kgf.cm, 16 ft.lbf) for bolt A

    43 N.m (438 kgf.cm, 32 ft.lbf) for bolt B, C

    Fig 7: Installing Idle Pulley Assembly
    G03083951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (W/ AIR CONDITIONING)  (See REPLACEMENT )
  10. INSTALL FAN AND GENERATOR V BELT (W/ AIR CONDITIONING)  (See REPLACEMENT )
  11. INSTALL ENGINE UNDER COVER SUB-ASSY NO. 1 (PRE RUNNER AND 4WD TYPE)
  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL  (See PRECAUTION )

    Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)
