Camshaft Position Sensor (2TR-FE): Replacement

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE CAMSHAFT POSITION SENSOR
1. Disconnect the camshaft position sensor connector.
2. Remove the bolt, then remove the camshaft position sensor.

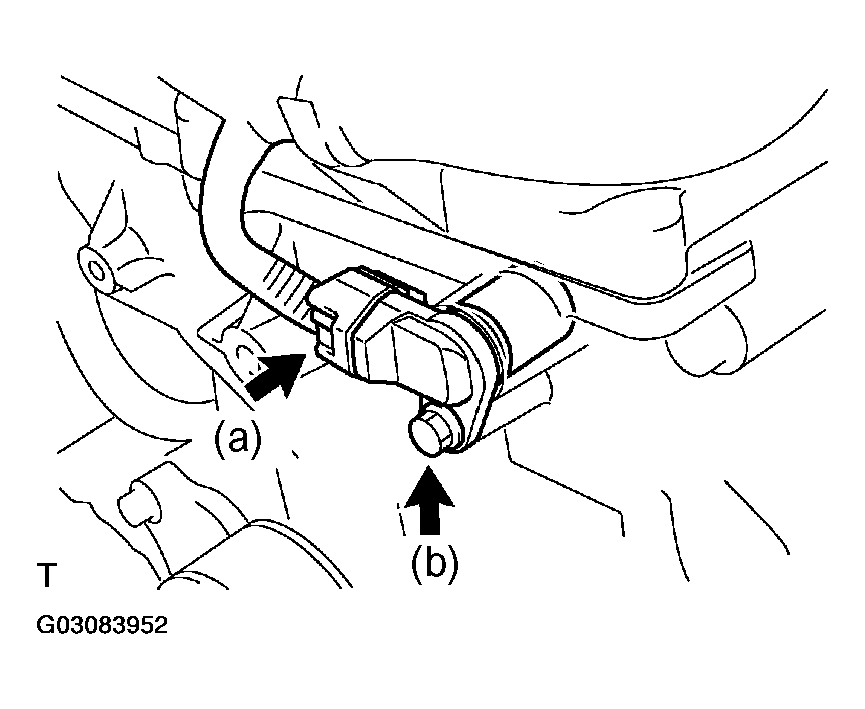

  Fig 1: Disconnecting Camshaft Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CAMSHAFT POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring of the camshaft position sensor.

  Fig 2: Applying Light Coat Of Engine Oil To O-Ring Of Camshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camshaft position sensor with the bolt.
  Torque: 8.5 N.m (87 kgf.cm, 75 in..lbf)

  NOTE: Make sure that the O-ring is not cracked or jammed when installing.
3. Connect the camshaft position sensor connector.

  Fig 3: Connecting Camshaft Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See PRECAUTION )
Torque: 3.9 N.m (40 kgf.cm, 35 in..lbf)
