Fuel Injector ASSY (2TR-FE): Components

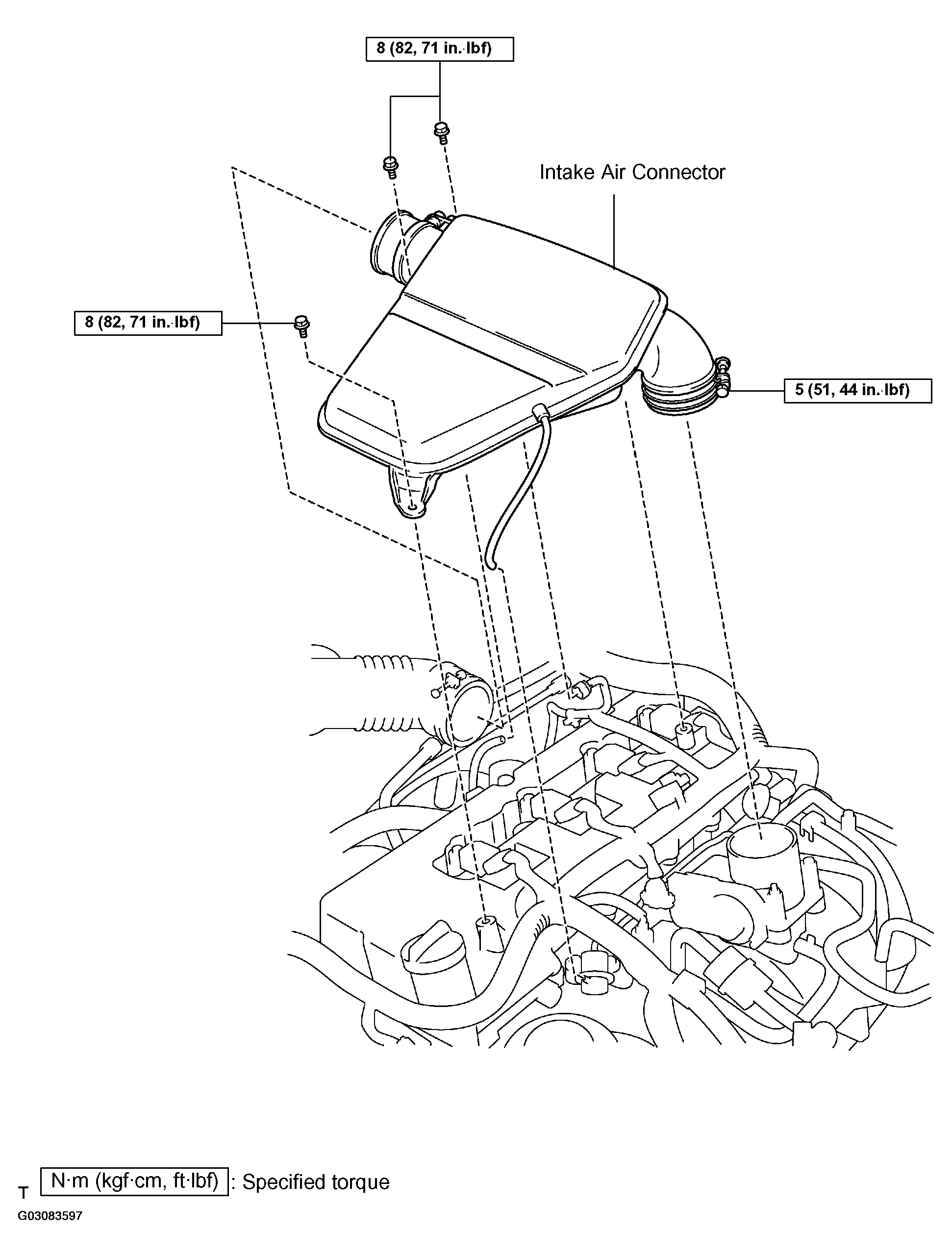

Fig 1: Fuel Injector Assy (2TR-FE) Replacement Components & Torque Specification (1 Of 3)
G03083597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Assy (2TR-FE) Replacement Components & Torque Specification (2 Of 3)
G03083598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

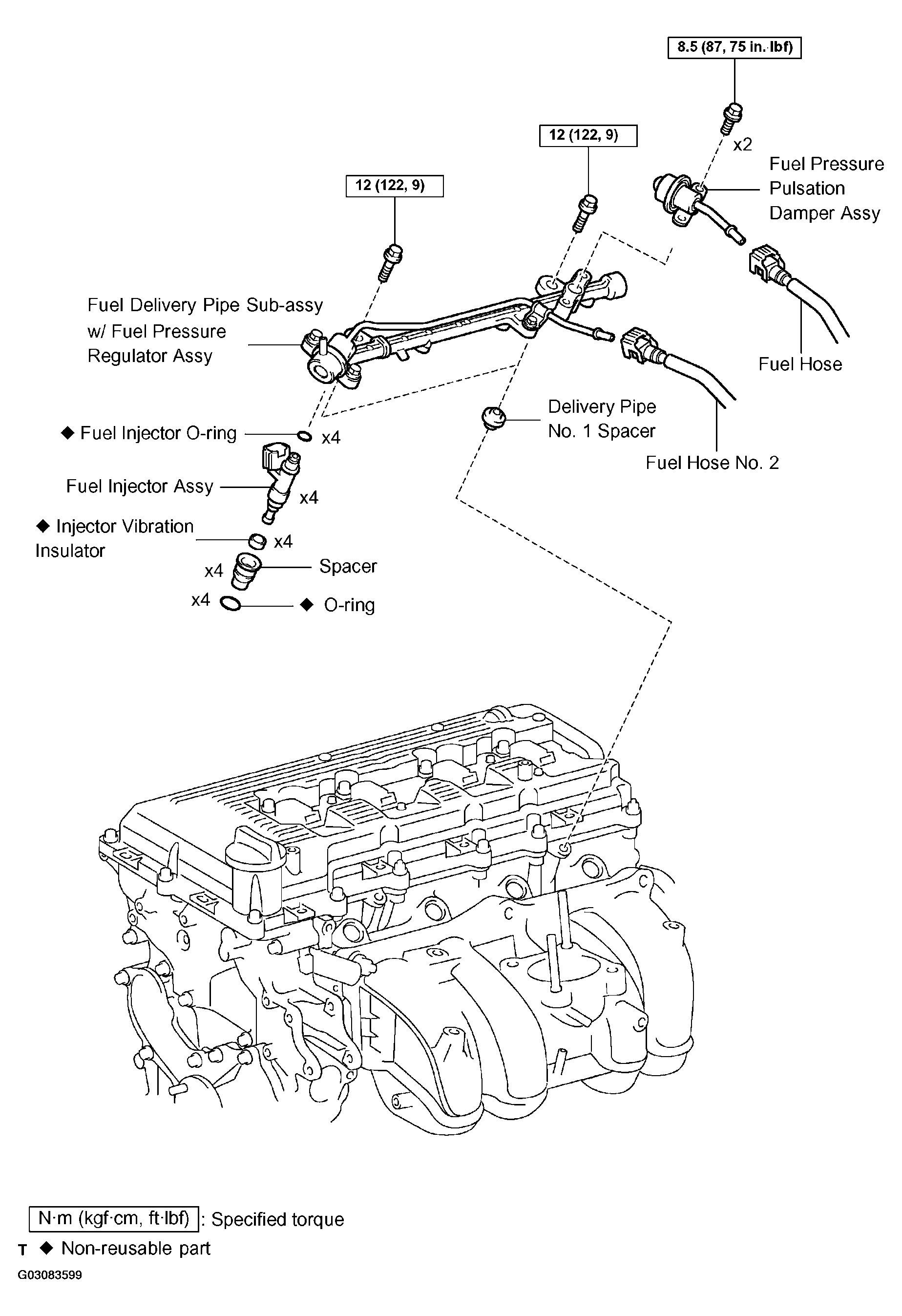

Fig 3: Fuel Injector Assy (2TR-FE) Replacement Components & Torque Specification (3 Of 3)
G03083599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
