Instrument Panel-Meter: Components

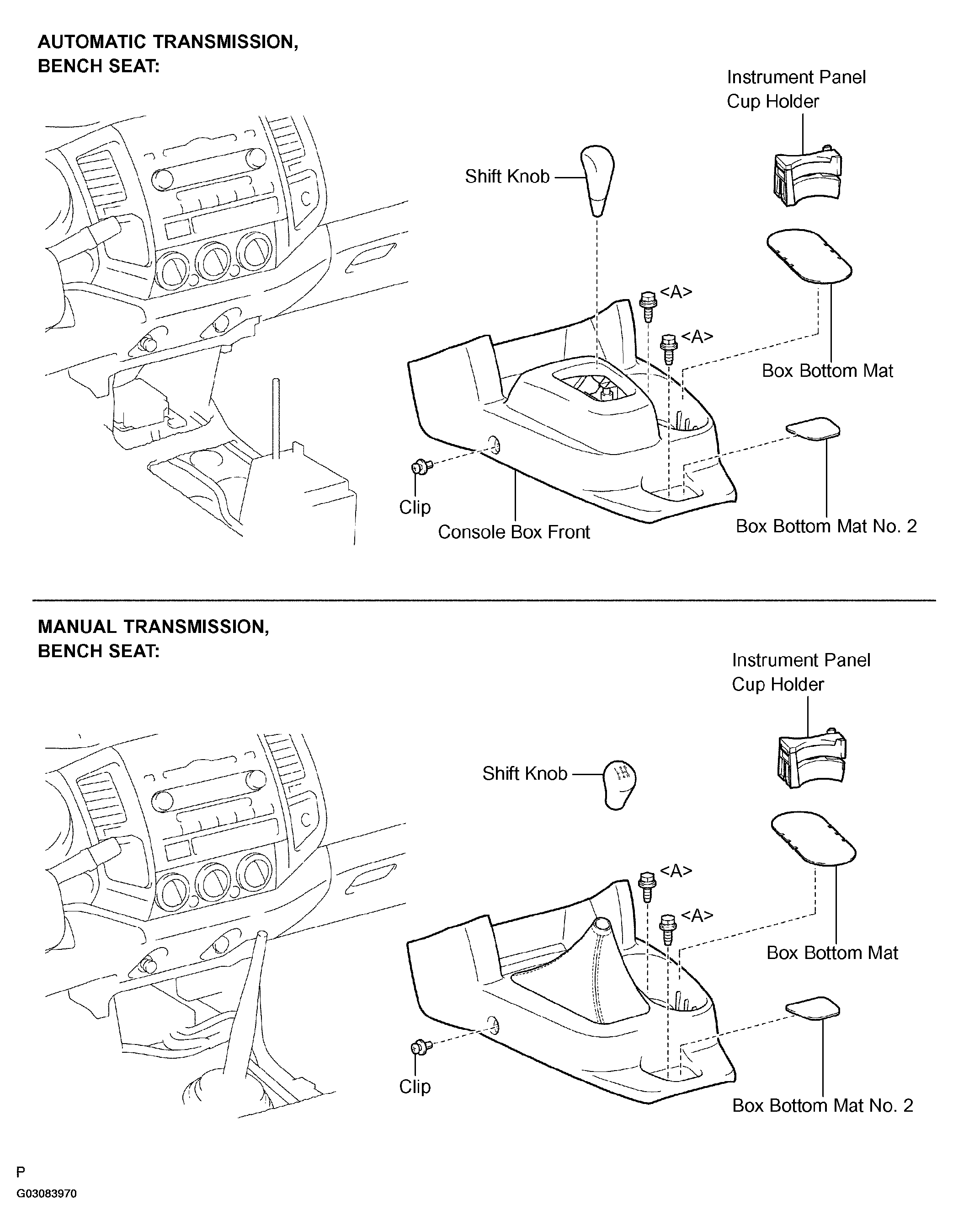

Fig 1: Identifying Instrument Panel/Meter Components (1 Of 6)
G03083970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Instrument Panel/Meter Components (2 Of 6)
G03083971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

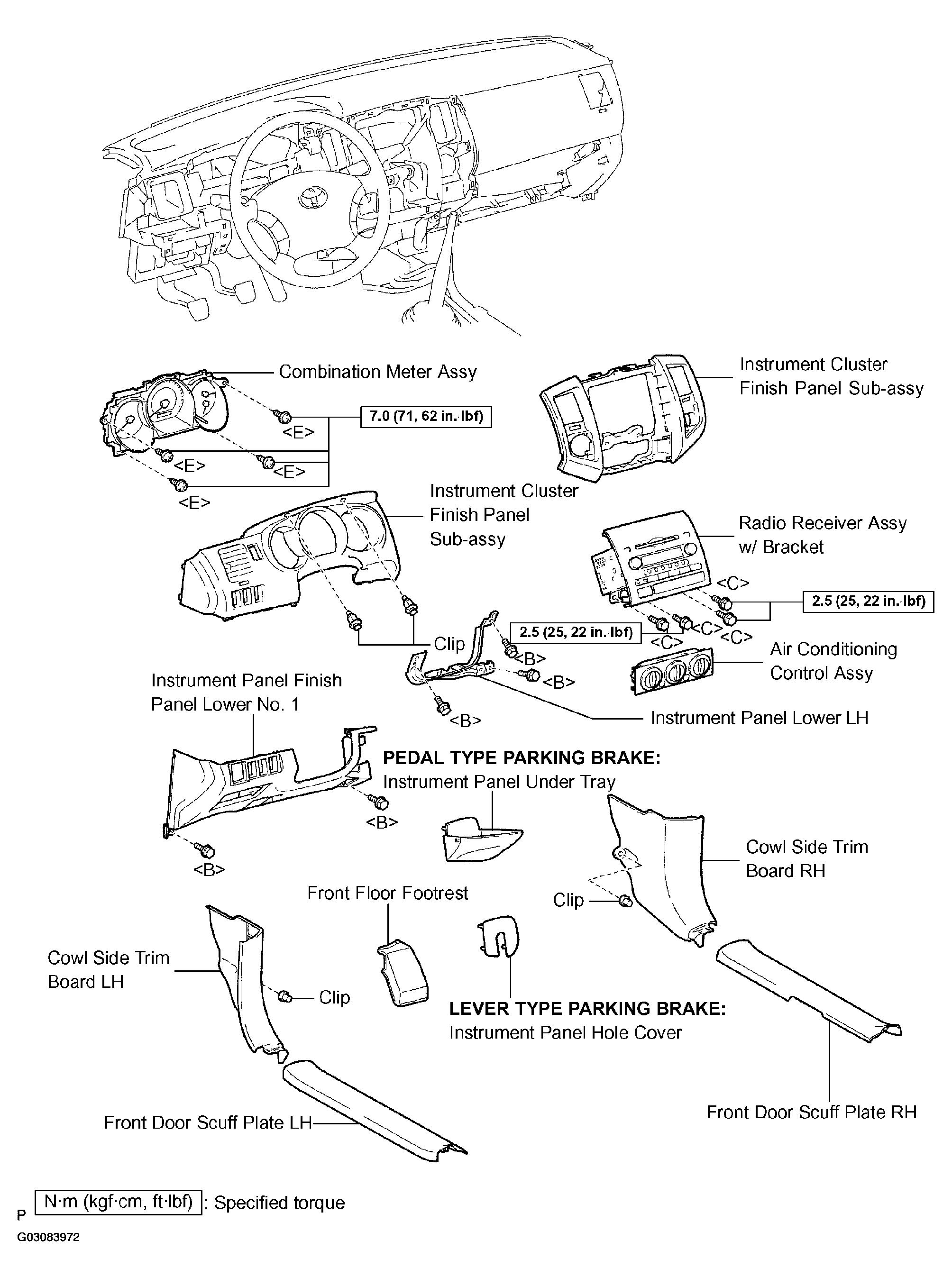

Fig 3: Identifying Instrument Panel/Meter Components (3 Of 6)
G03083972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

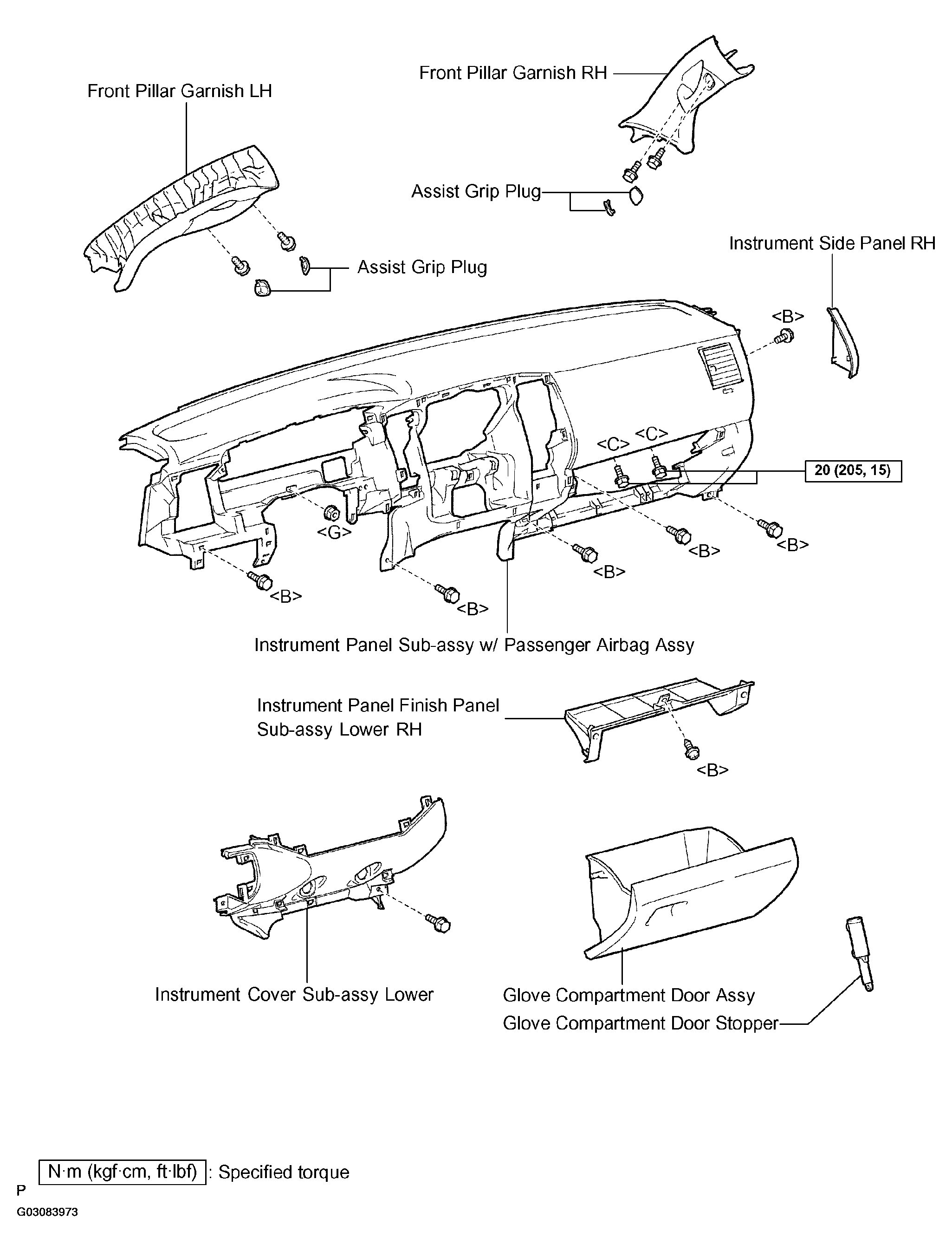

Fig 4: Identifying Instrument Panel/Meter Components (4 Of 6)
G03083973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

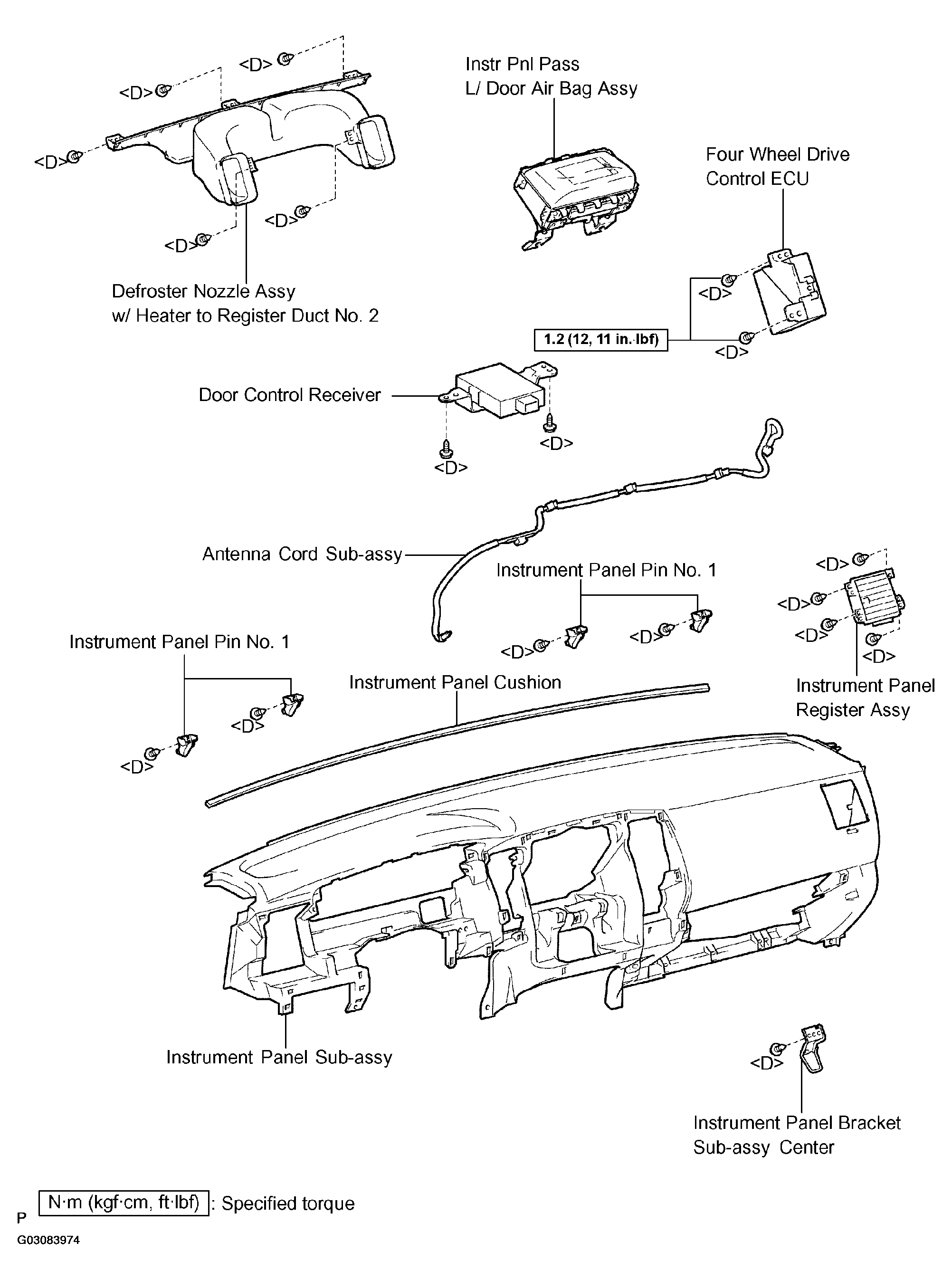

Fig 5: Identifying Instrument Panel/Meter Components (5 Of 6)
G03083974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

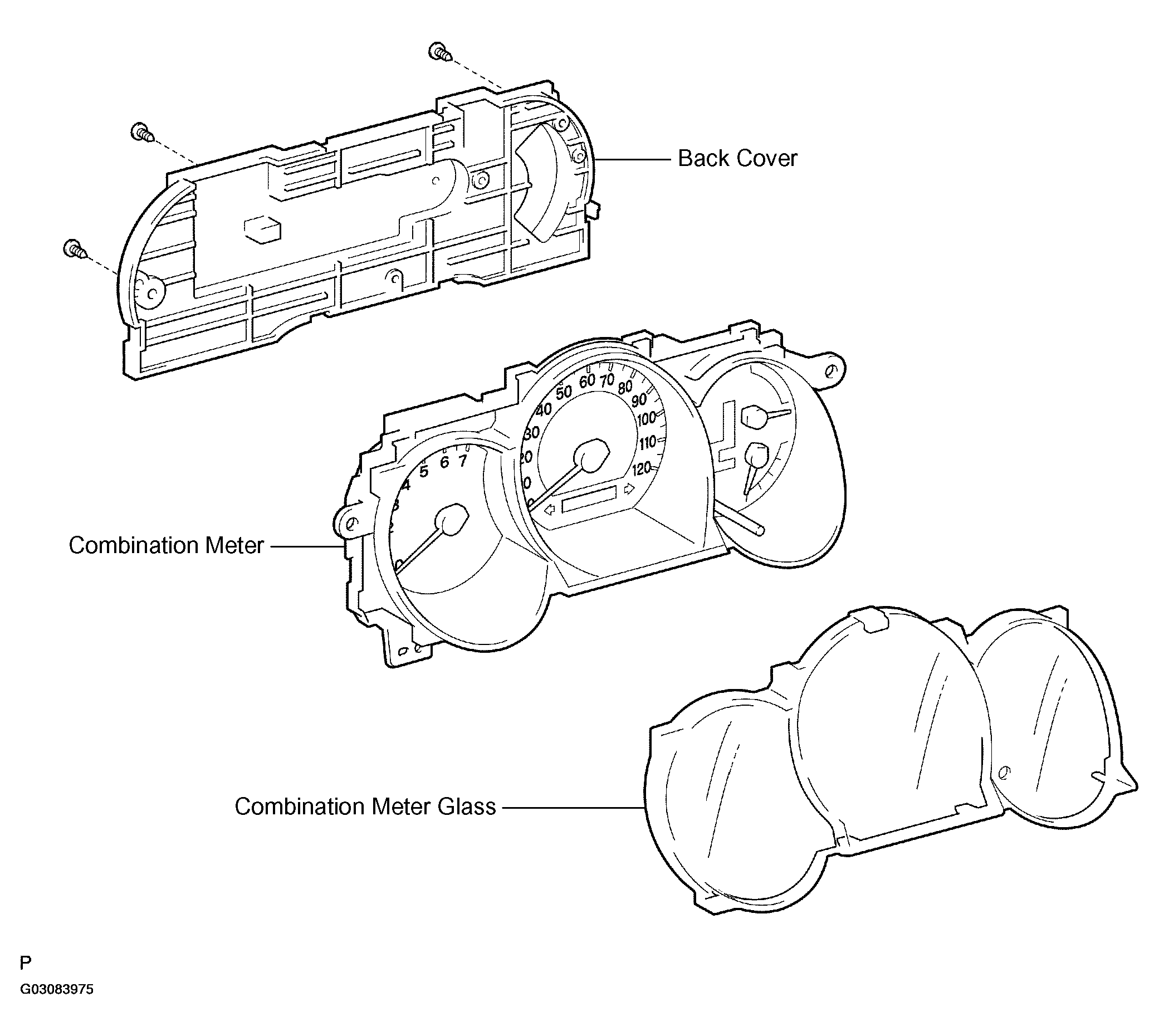

Fig 6: Identifying Instrument Panel/Meter Components (6 Of 6)
G03083975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
