Toyota
>>
2005
>>
Tacoma PreRunner, 4D Pickup
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Starting System & Charging System
>>
Starting System (1GR-FE)
>>
System Diagram
System Diagram

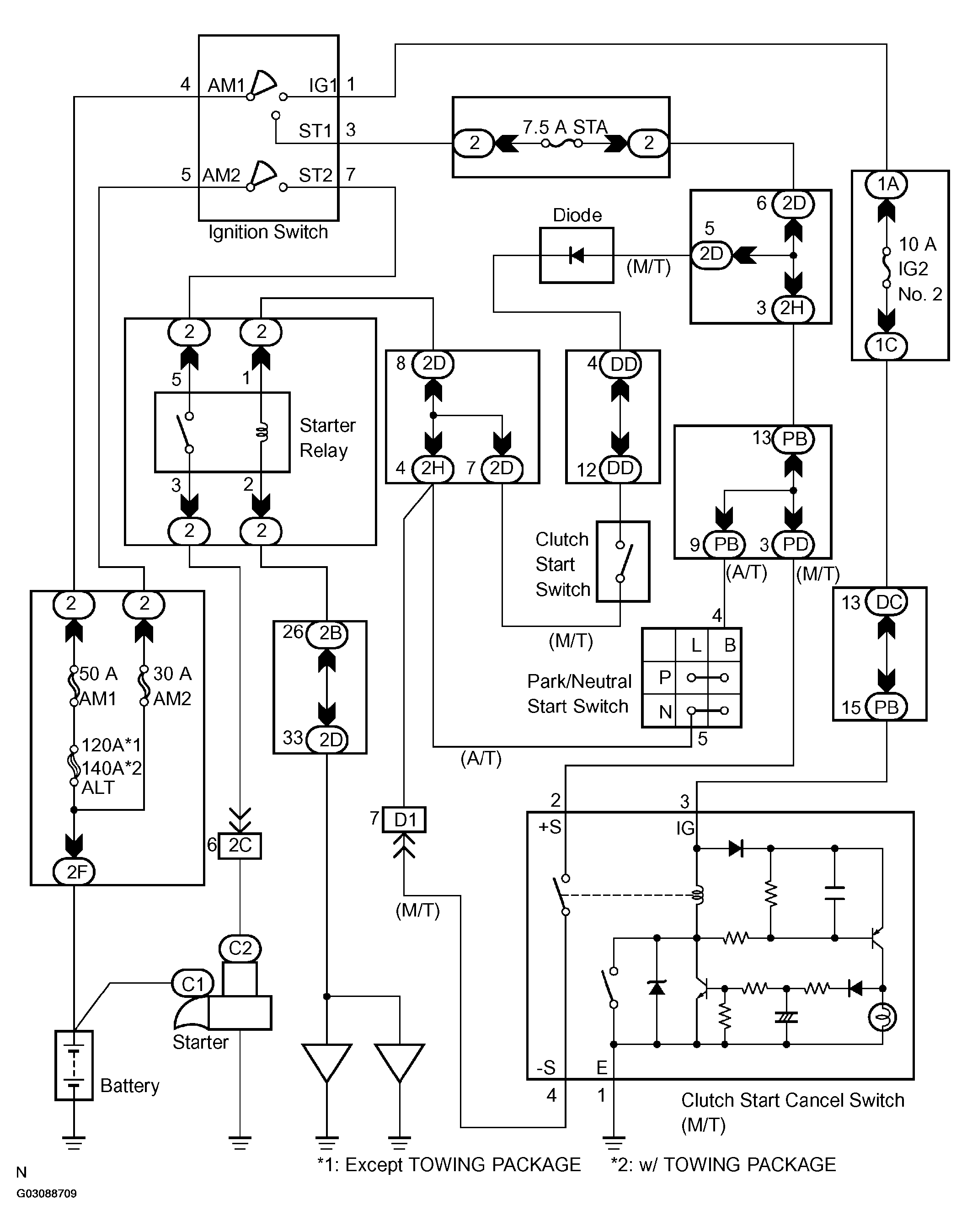

Fig 1: Starting System (1GR-FE) System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
