Generator ASSY (2TR-FE): Components

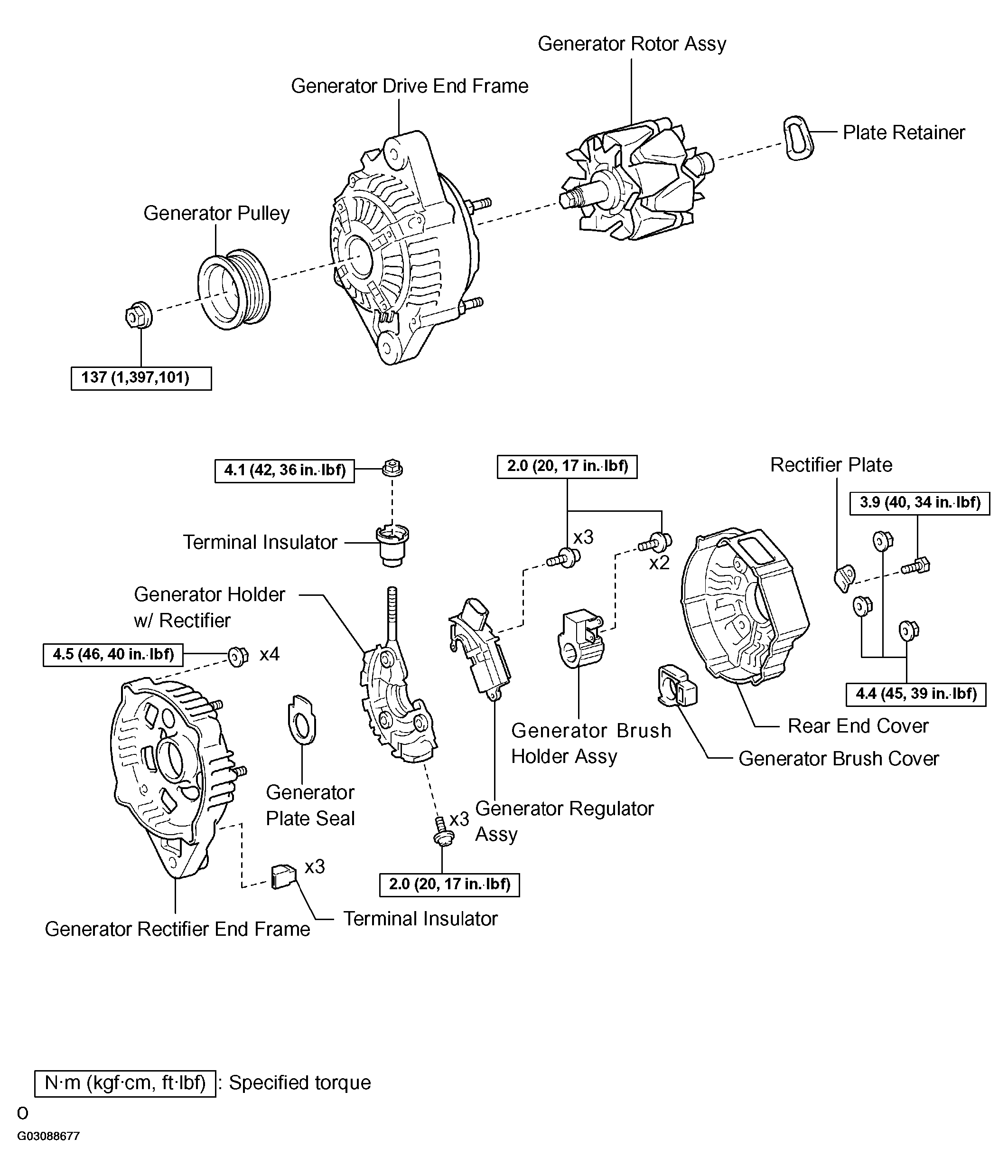

Fig 1: Generator Assy (2TR-FE) Component Location & Torque Specification

G03088677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
