Generator ASSY (1GR-FE For DENSO Made)
>>
Components
Generator ASSY (1GR-FE For DENSO Made): Components

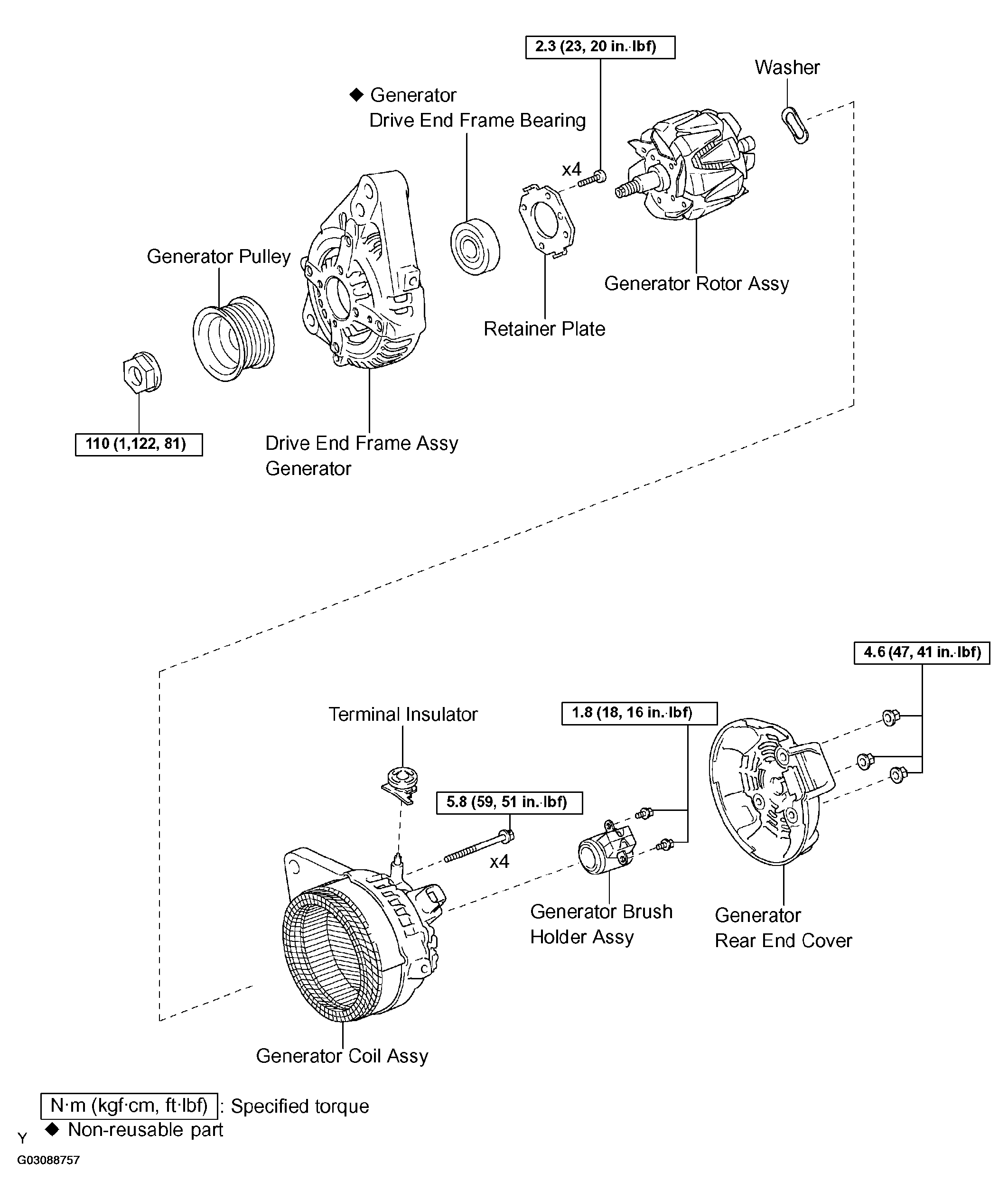

Fig 1: Generator Assy (1GR-FE For Denso Made) Component Location & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
