Generator ASSY (1GR-FE For BOSCH Made): Components

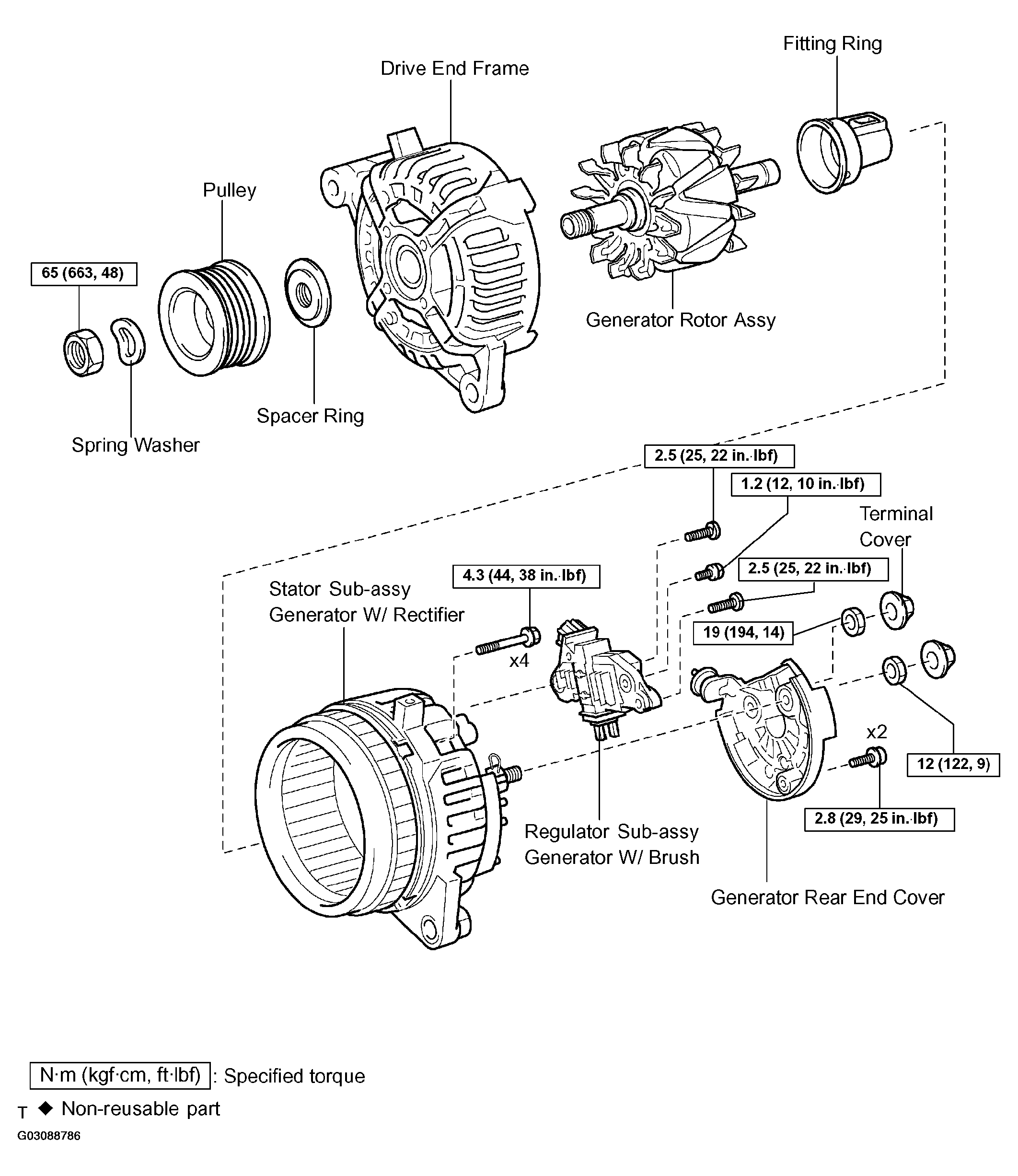

Fig 1: Generator Assy (1GR-FE For Bosch Made) Component Location & Torque Specification

G03088786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
