How To Determine Nut Strength

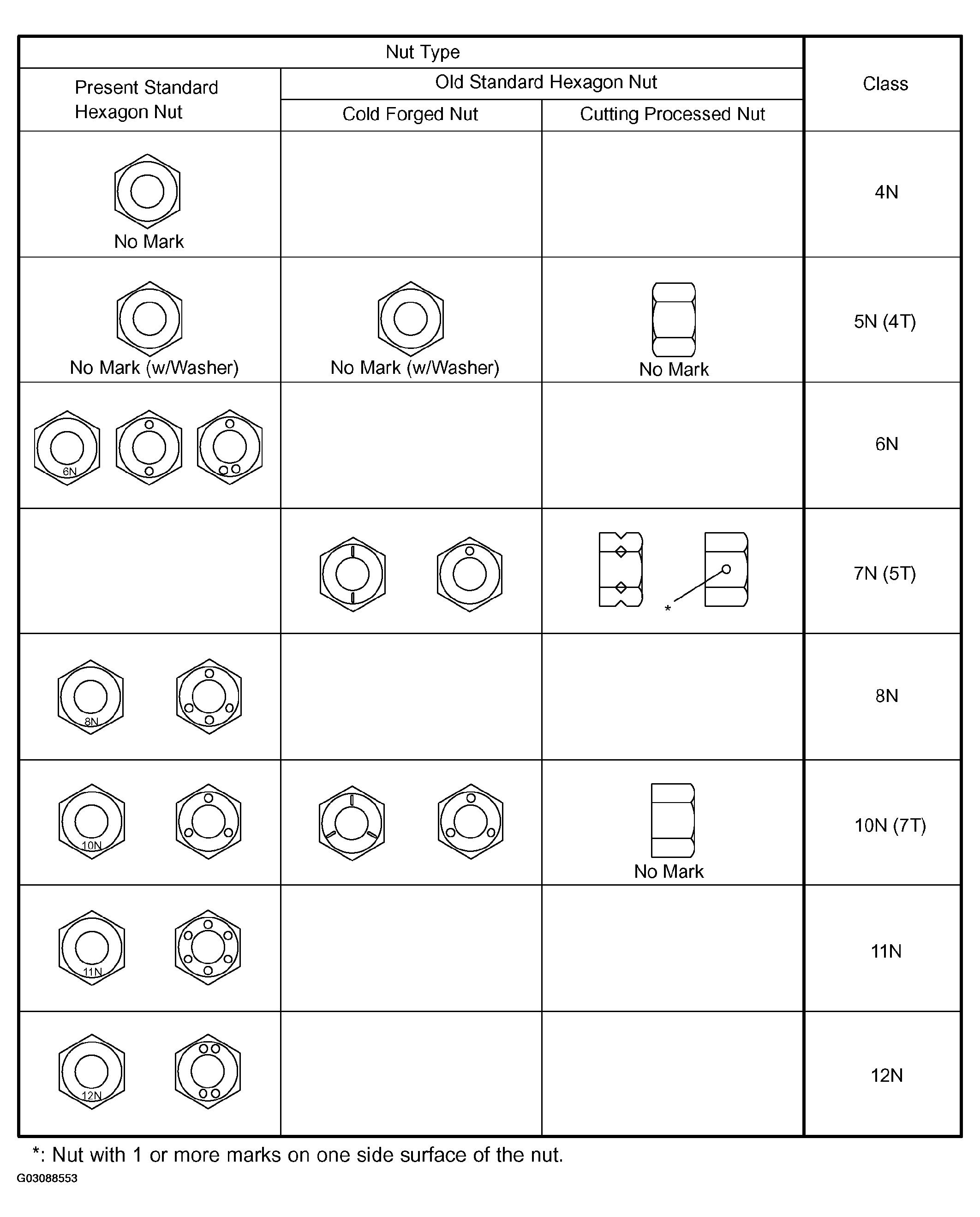

Fig 1: Nut Specification Chart
G03088553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT: Use the nut with the same number of the nut strength classification or greater than the bolt strength classification number when tightening parts with a bolt and nut.

Example: Bolt = 4T

Nut = 4N or more
