Driveshaft/Propeller Shaft: SST

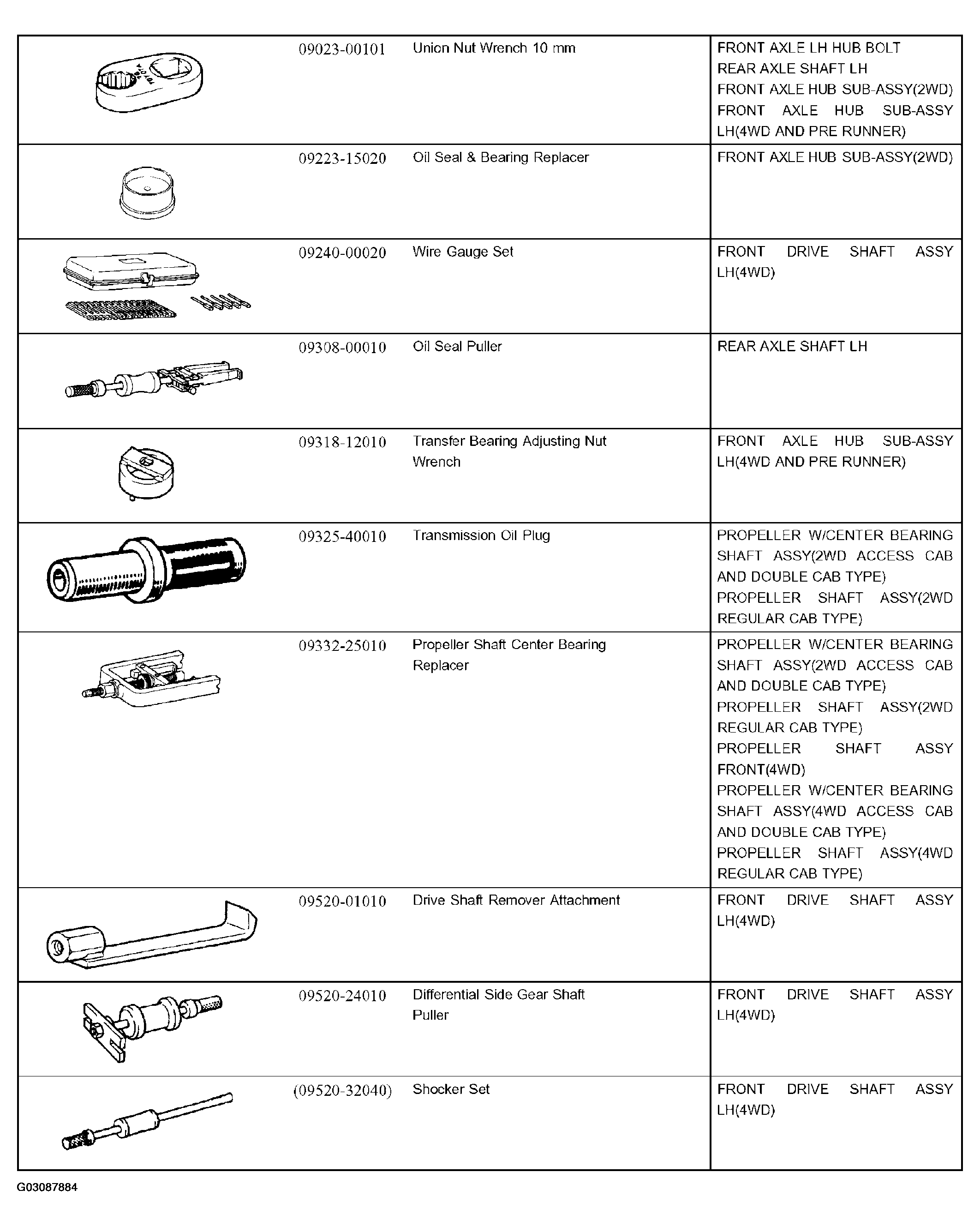

Fig 1: SST Specification Chart (1 Of 4)
G03087884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

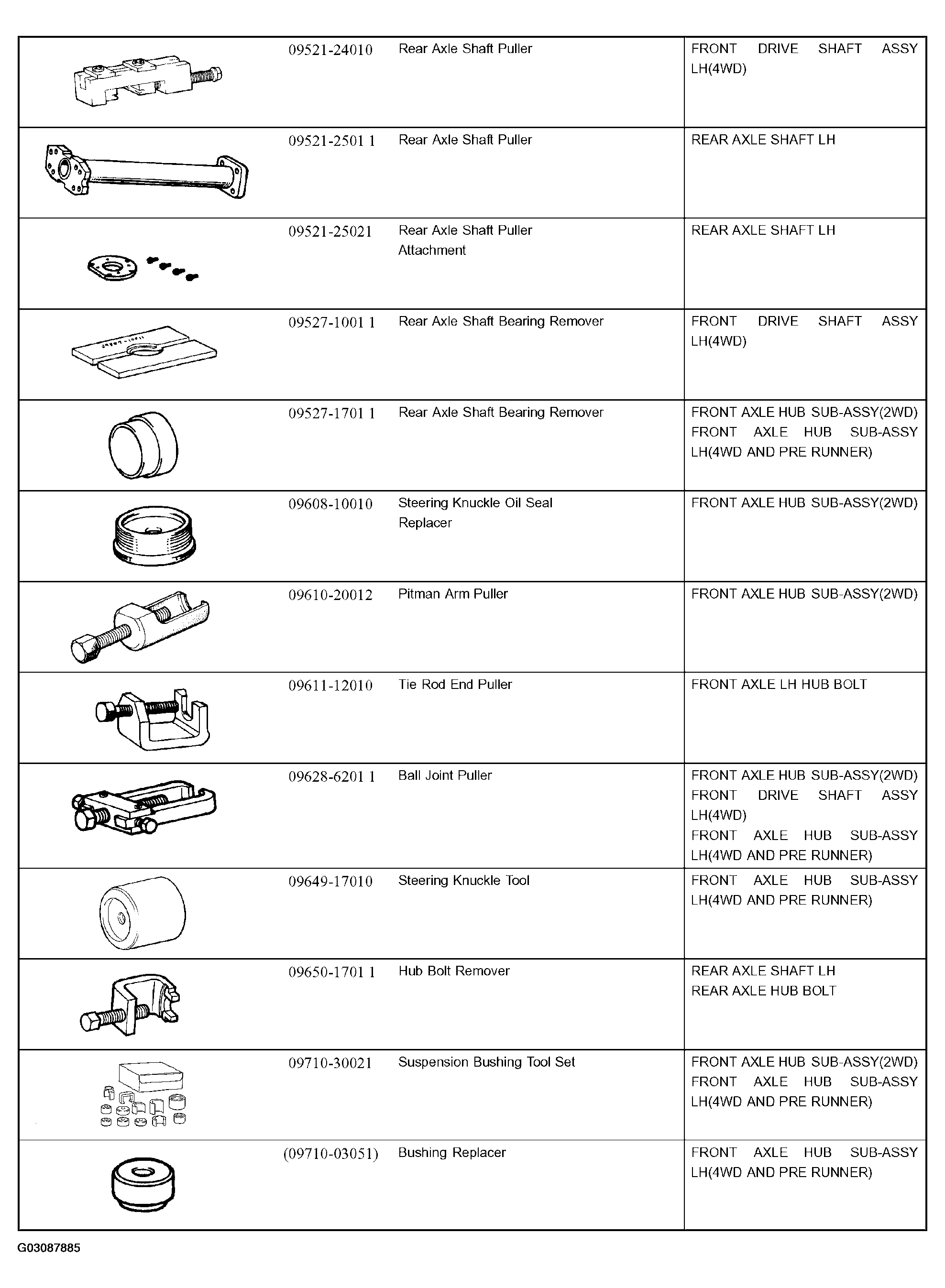

Fig 2: SST Specification Chart (2 Of 4)
G03087885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

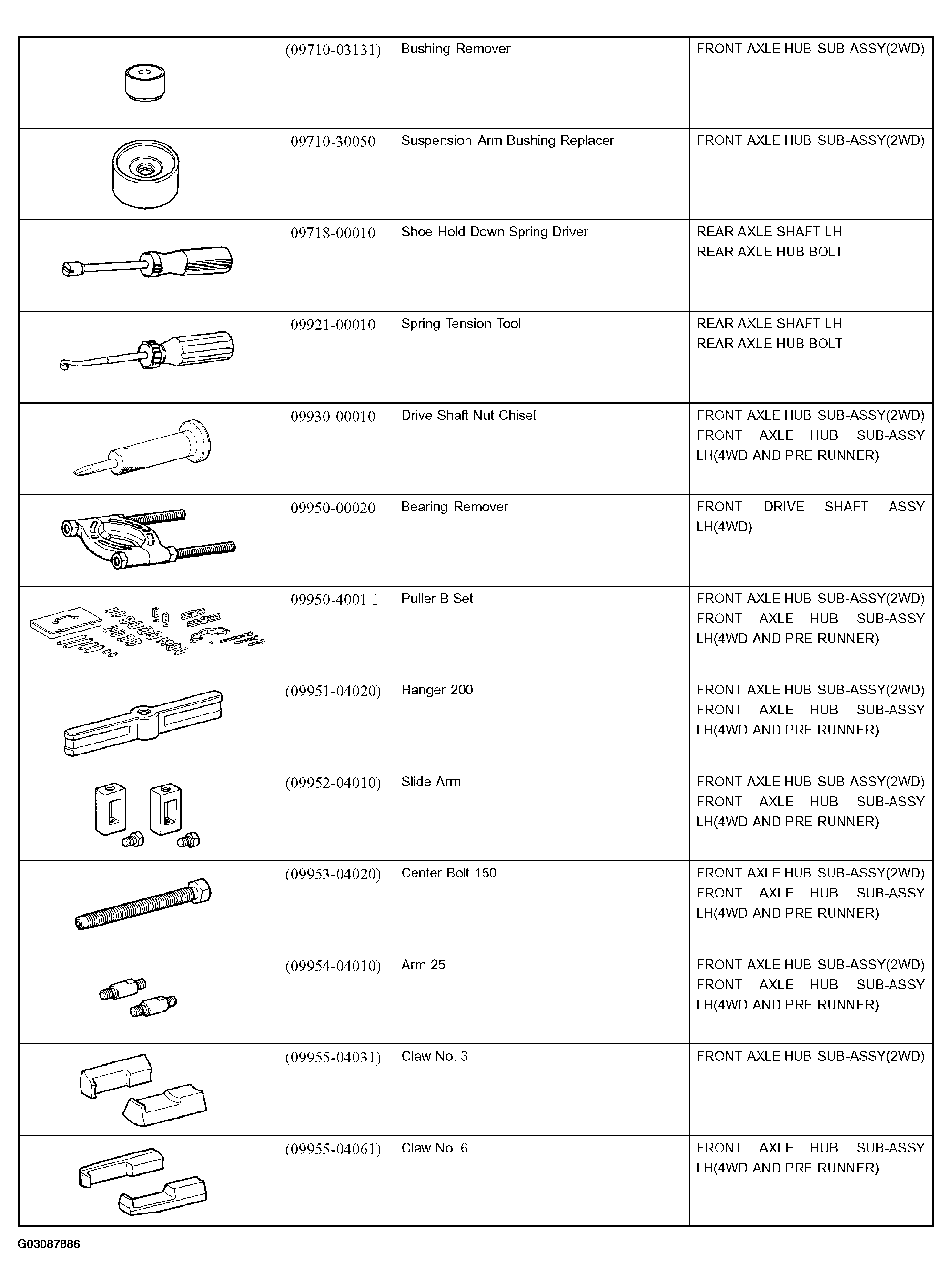

Fig 3: SST Specification Chart (3 Of 4)
G03087886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

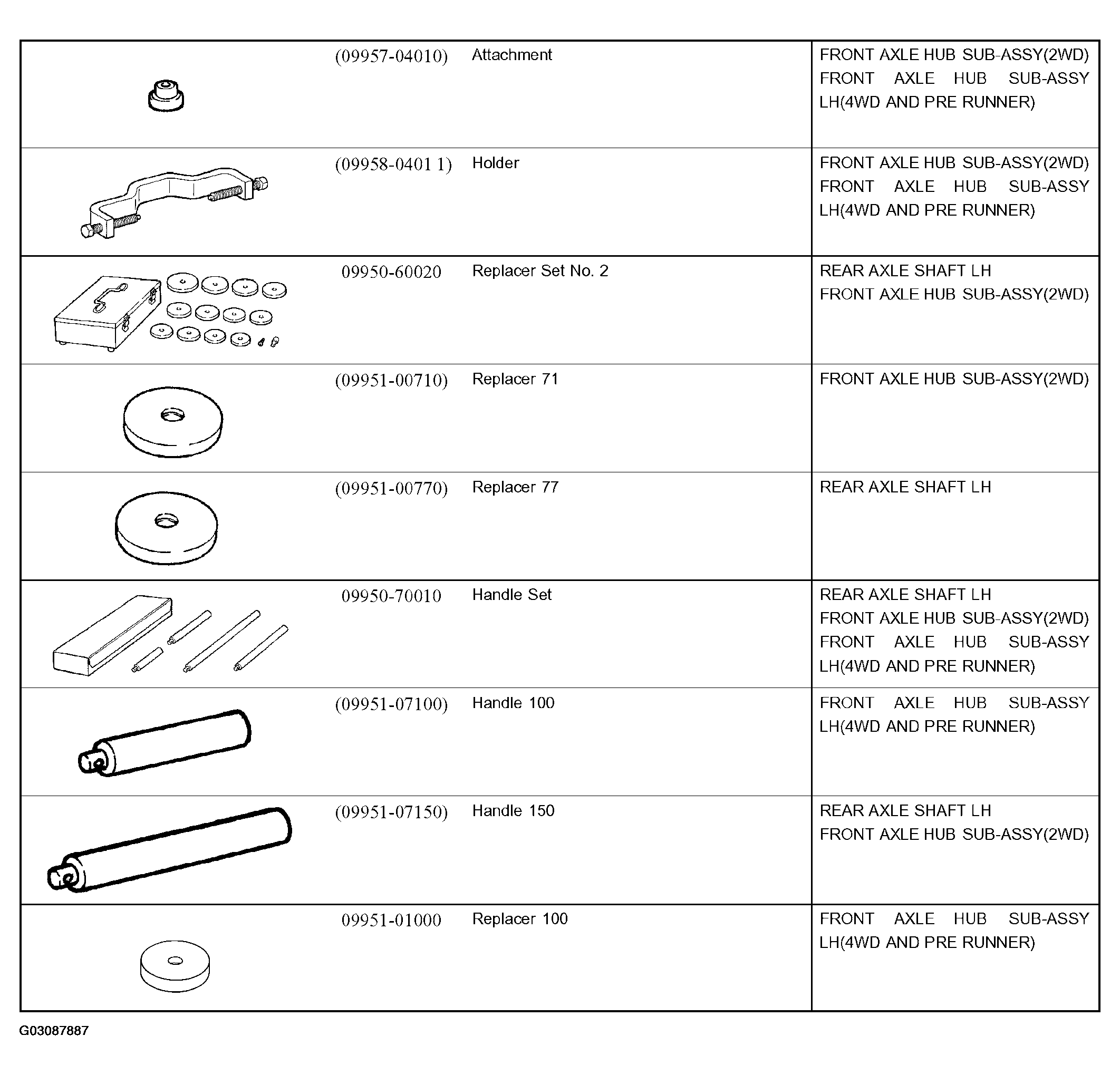

Fig 4: SST Specification Chart (4 Of 4)
G03087887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
