Fuel System (2TR-FE): Inspection

  1. INSPECT FUEL INJECTOR ASSY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance: 11.6 to 12.4Ω at 20°C (68°F)

        If the result is not as specified, replace the fuel injector.

    2. Check the injection volume.
      Fig 1: Measuring Resistance Between Terminals Of Fuel Injector Assy
      G03083588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: This test involves high-pressure fuel and electricity, therefore, safety precautions should be taken. Perform this test in a safe area and avoid any sparks and flames. Do not smoke.
      1. Discharge the fuel system pressure (See PRECAUTION ).
      2. Remove the fuel hose from the fuel pressure pulsation damper (see REPLACEMENT  ).
      3. Remove the fuel hose from the fuel pipe (See PRECAUTION ).
      4. Separate the pressure regulator (see REPLACEMENT  )
        NOTE: Do not separate the fuel hose No. 2.
      5. Assemble SST as shown in the illustration.

        SST 09268-41048 (09268-41091, 09268-41110, 09268-41120, 09268-41500, 95336-08070, 90467-13001)

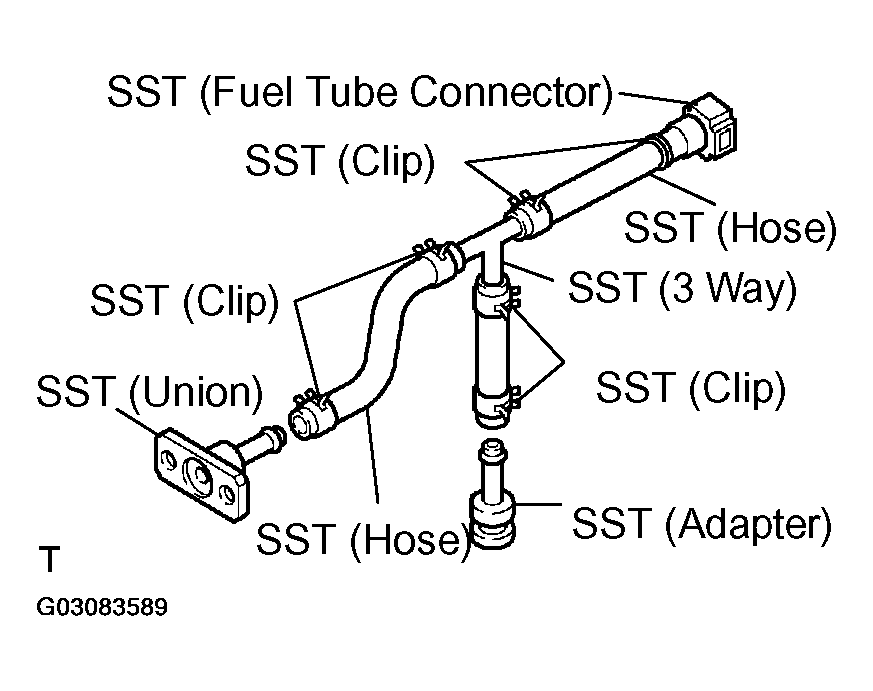

        Fig 2: Assembling SST
        G03083589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Connect SST to the fuel pipe.

        SST 09268-41048 (09268-41500, 90467-13001)

        Fig 3: Connecting SST To Fuel Pipe
        G03083590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Install the pressure regulator onto SST (union) with the 2 bolts.

        Torque: 8.5 N.m (87 kgf.cm, 75 in..lbf)

        SST 09268-41048 (09268-41091)

        NOTE: Make sure that the O-ring is installed onto the pressure regulator.
        Fig 4: Installing Pressure Regulator Onto SST
        G03083591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Install the O-ring onto the injector.
      9. Assemble SST as shown in the illustration.

        SST 09268-41048 (09268-41110, 09268-41310)

      10. Put the injector into a graduated cylinder.
        CAUTION: Install a suitable vinyl tube onto the injector to contain any gasoline spray.
        Fig 5: Assembling SST
        G03083592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      11. Make sure that SST is installed as shown in the illustration.
      12. Operate the fuel pump (See ON-VEHICLE INSPECTION ).
        Fig 6: Installing SST
        G03083593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      13. Connect SST (wire) to the injector and the battery for 15 seconds, and measure the injection volume with a graduated cylinder. Test each injector 2 or 3 times.

        SST 09842-30080

        Volume: 71 to 86 cm 3  (4.3 to 5.2 cu in.) per 15 seconds Difference between each injector:

        15 cm 3  (0.9 cu in.) or less

        If the injection volume is not as specified, replace the injector.

        Fig 7: Connecting SST (Wire) To Injector And Battery
        G03083594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check the leakage.
      1. In the condition above, disconnect the tester probes of SST (wire) from the battery and check the fuel leakage from the injector.

      Fuel drop: 1 drop or less in 12 minutes

      Fig 8: Checking Leakage
      G03083595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FUEL PUMP ASSY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Resistance: 0.2 to 3.0Ω at 20°C (68°F)

    2. Check the operation.
      1. Apply battery voltage to both terminals. Check that the pump operates.
        Fig 9: Identifying Fuel Pump Assy Connector Terminal
        G03083596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • These tests must be performed quickly (within 10 seconds) to prevent damage to the pump.
      • Keep the fuel pump as far away from the battery as possible.
      • Always do the switching at the battery side.
