Inner Rear View MIRRORASSY: Replacement

1. w/o Automatic glare-resistant EC mirror:
   1. Pinch the cover and disengage the 2 claws, and remove the cover.

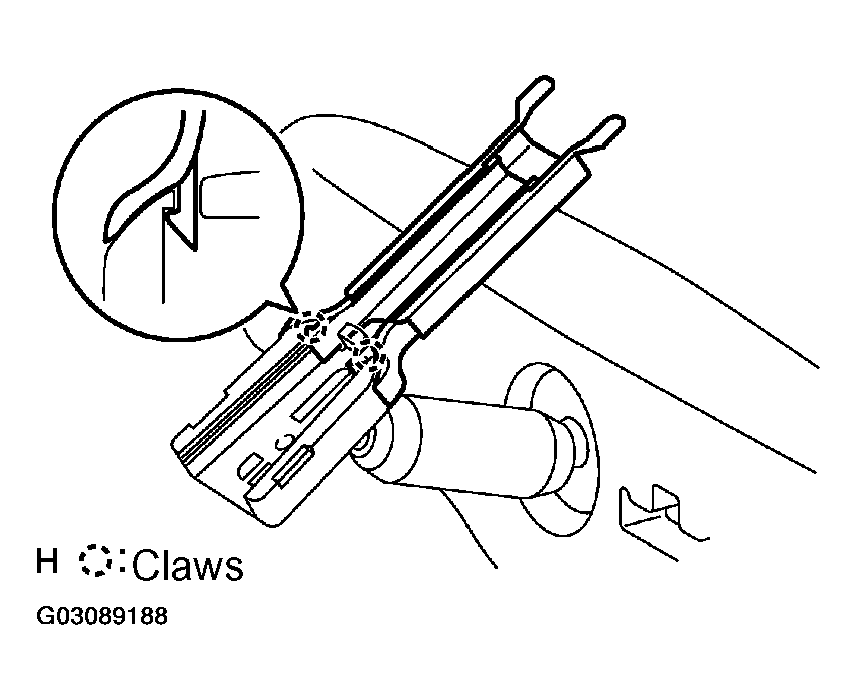

      Fig 1: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Push the lever, and slide and remove the inner rear view mirror.
      Fig 2: Removing Inner Rear View Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/Automatic glare-resistant EC mirror.
   1. Disconnect the EC mirror connector.
   2. Slide the inner RR view mirror cover.
      Fig 3: Sliding Inner RR View Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Slide the inner rear view mirror.
      Fig 4: Sliding Inner Rear View Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Disengage the 2 claws and remove the inner RR view mirror cover.
      Fig 5: Removing Inner RR View Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Automatic glare-resistant EC mirror:
   1. Slide and install the inner rear view mirror.
      Fig 6: Sliding Inner Rear View Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Engage the 2 claws and install the cover.
      Fig 7: Engaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/Automatic glare-resistant EC mirror:
   1. Engage the 2 claws and install the inner RR view mirror cover.
      Fig 8: Installing Inner RR View Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Slide and install the inner rear view mirror.
      Fig 9: Sliding Inner Rear View Mirror

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Slide the inner RR view mirror cover.
   4. Connect the EC mirror connector.
      Fig 10: Sliding Inner RR View Mirror Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 3.9 N.m (40 kgf.cm, 35
