Recommended Tools

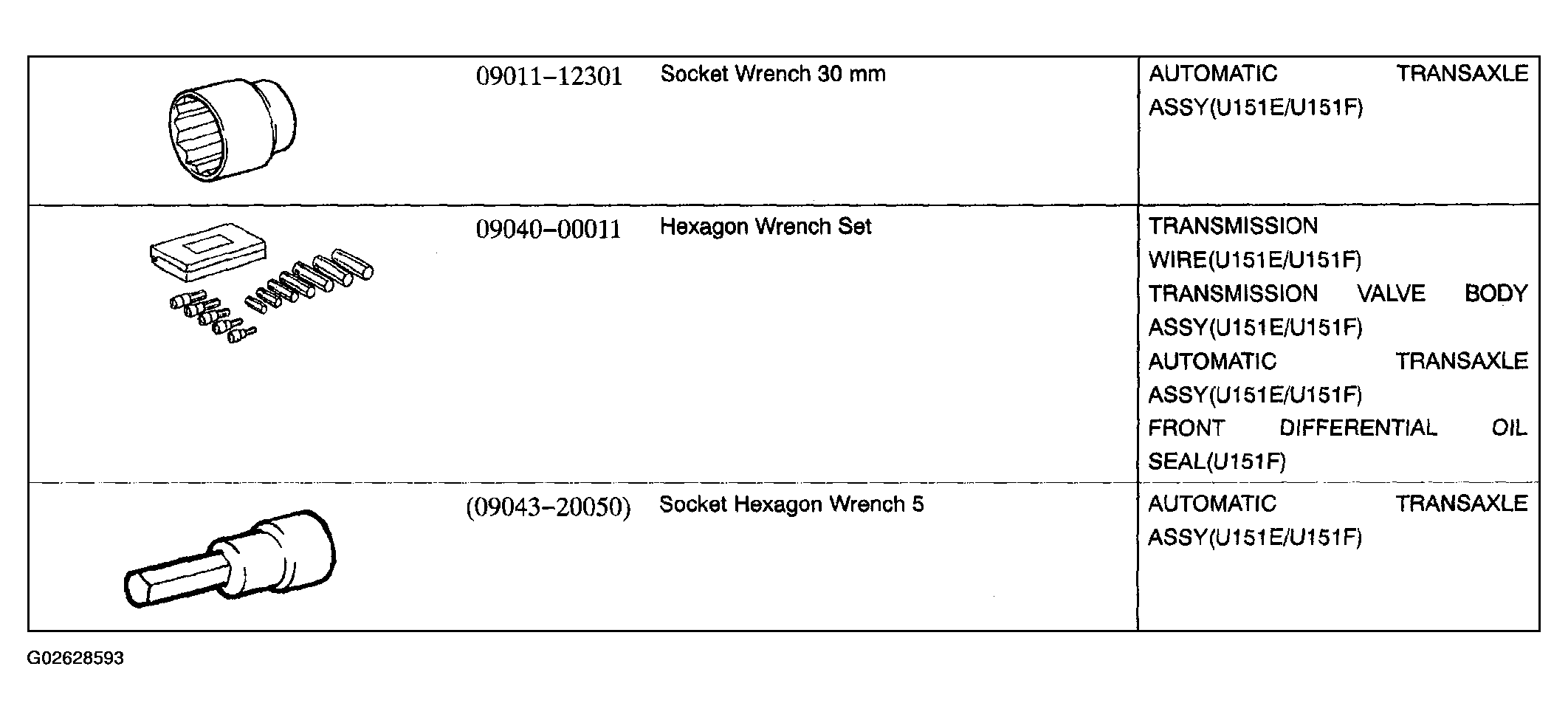

Fig 1: Automatic Transmission/Trans - Recommended Tool Table (1 Of 2)
G02628593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

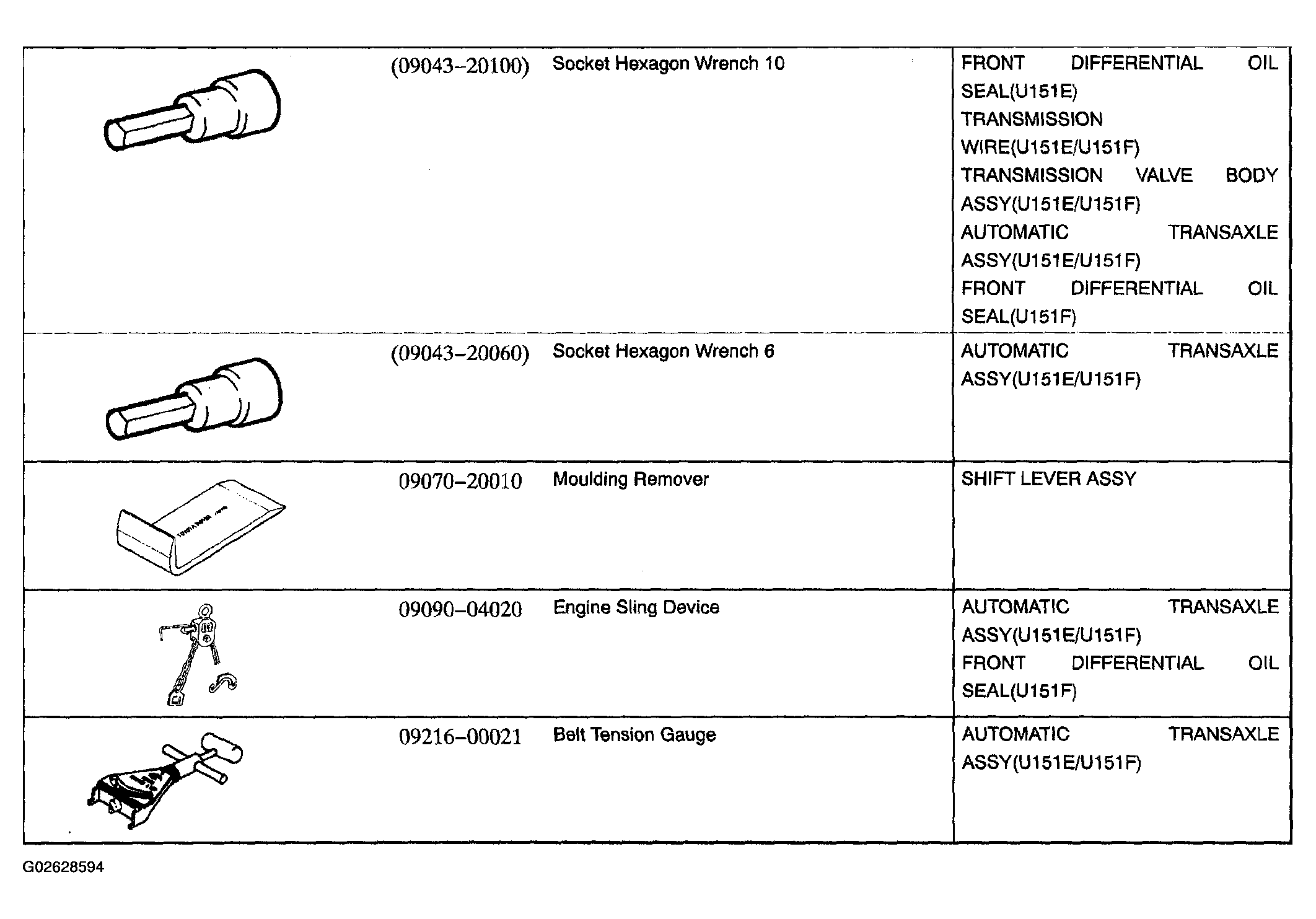

Fig 2: Automatic Transmission/Trans - Recommended Tool Table (2 Of 2)
G02628594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
