Side Window ASSY Rear LH: Components

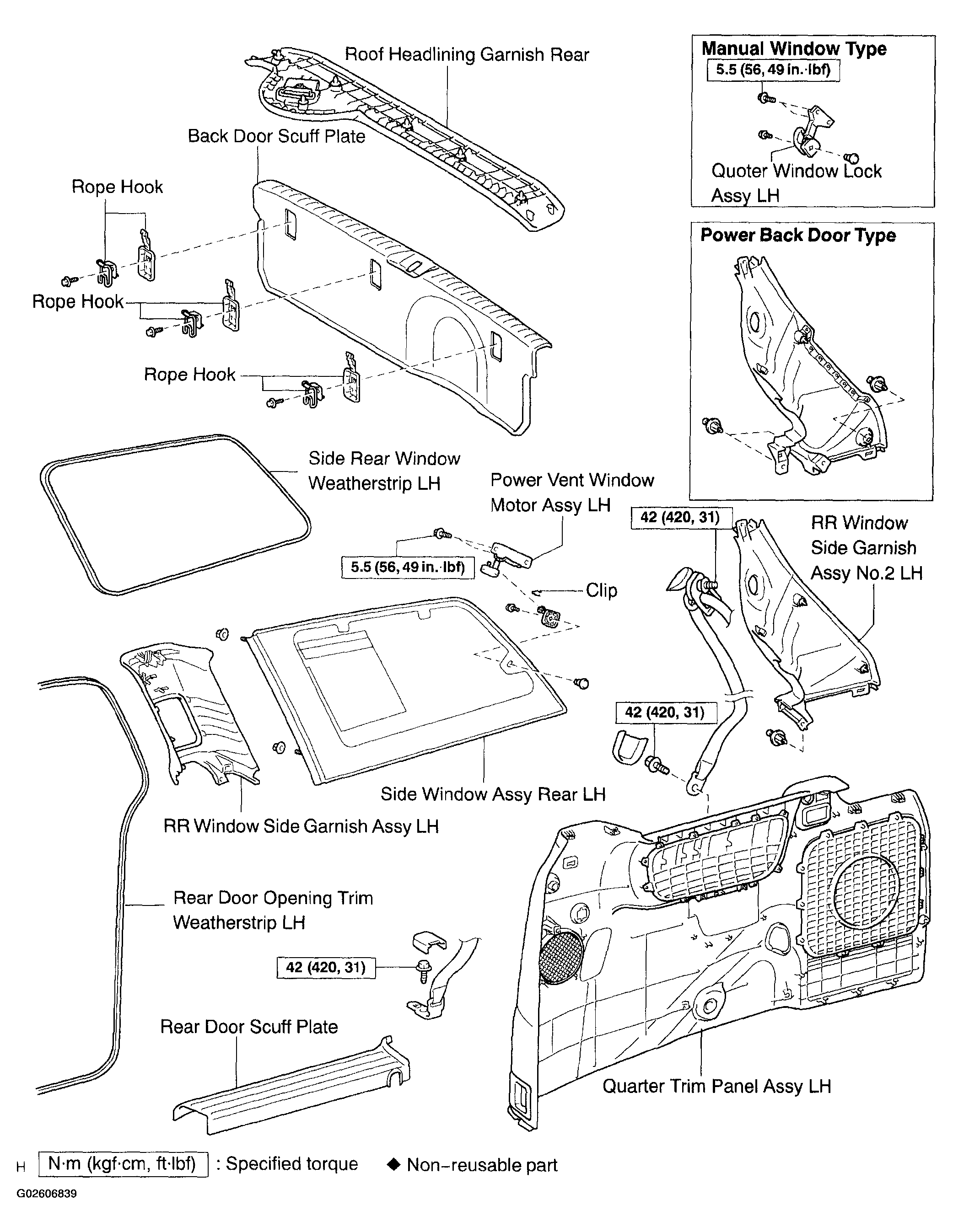

Fig 1: Identifying Side Window Assy Rear LH Replacement Components With Torque Specifications

G02606839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
