Home >> Toyota >> 2005 >> Sienna XLE, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Back Door Glass >> Components

Back Door Glass: Components

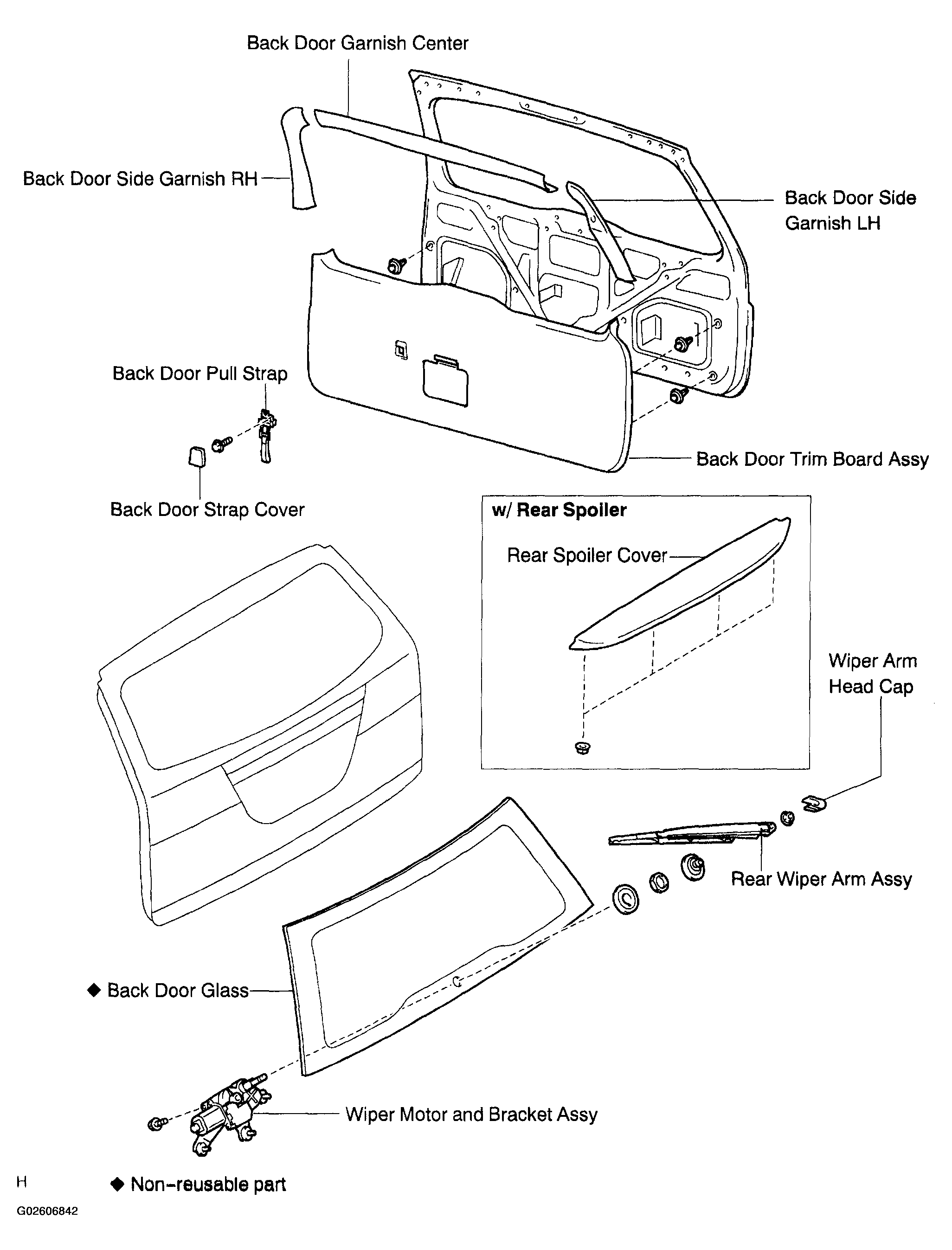

Fig 1: Identifying Back Door Glass Components

G02606842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
