Transmission Control Cable ASSY (ATM): Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  3. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  4. REMOVE COWL SIDE TRIM BOARD LH (See  REPLACEMENT  )
  5. REMOVE COWL SIDE TRIM BOARD RH (See  REPLACEMENT  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER LH (See  REPLACEMENT  )
  7. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See  REPLACEMENT  )
  8. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  9. REMOVE FLOOR CARPET COVER CENTER LH (See  REPLACEMENT  )
  10. REMOVE FLOOR CARPET COVER CENTER RH (See  REPLACEMENT  )
  11. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 1 (See  REPLACEMENT  )
  12. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO. 2 (See  REPLACEMENT  )
  13. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  REPLACEMENT  )
  14. REMOVE POSITION INDICATOR HOUSING ASSY (See  REPLACEMENT  )
  15. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  REPLACEMENT  )
  16. REMOVE TRANSMISSION CONTROL CABLE ASSY
    1. Remove the nut from the control shaft lever.
    2. Disconnect the transmission control cable assy from the control shaft lever.

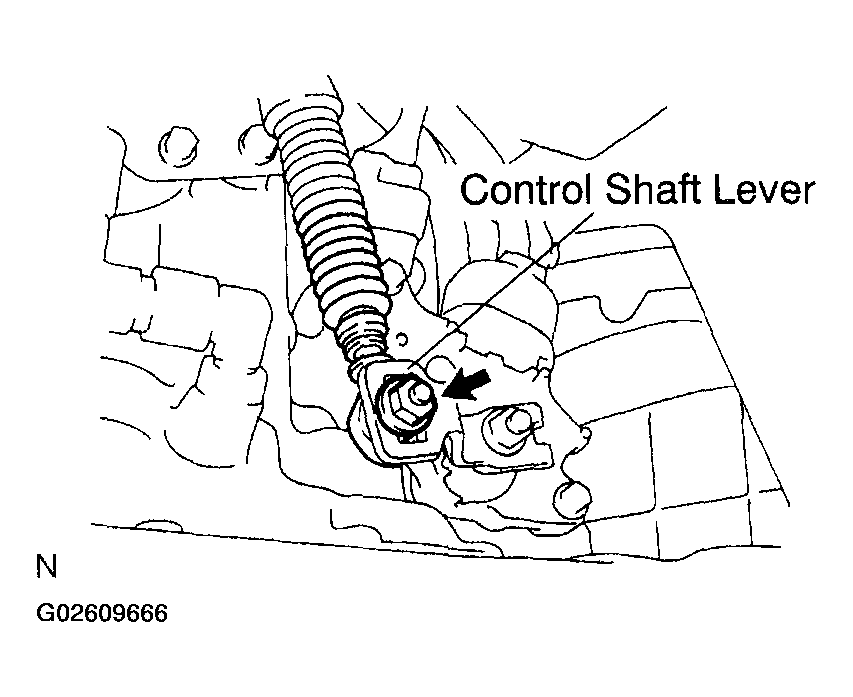

      Fig 1: Disconnecting Transmission Control Cable Assy From Control Shaft Lever
      G02609666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the transmission control cable assy from the control cable bracket.

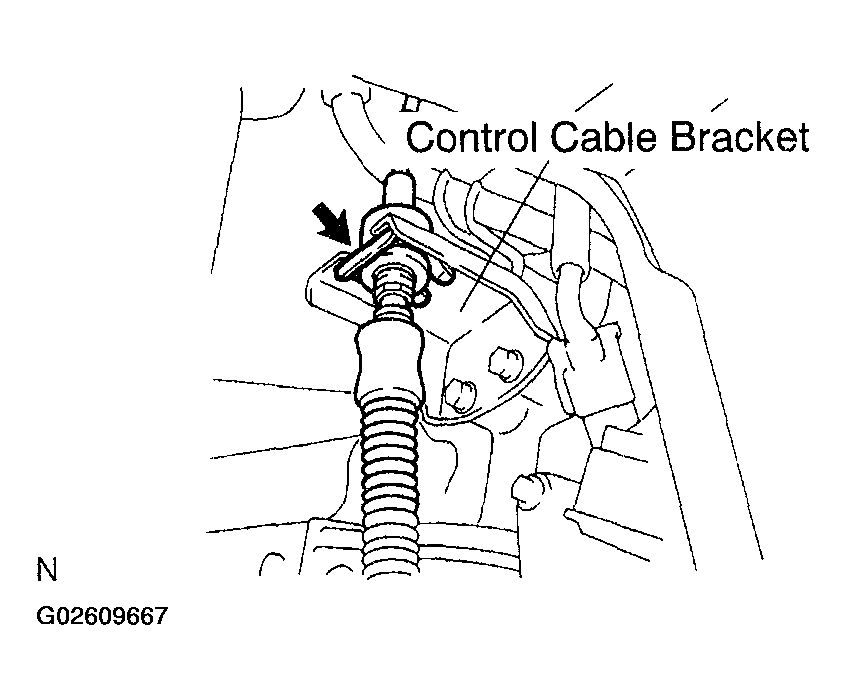

      Fig 2: Disconnecting Transmission Control Cable Assy From Control Cable Bracket
      G02609667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the transmission control cable assy from the transmission control cable bracket No. 2.

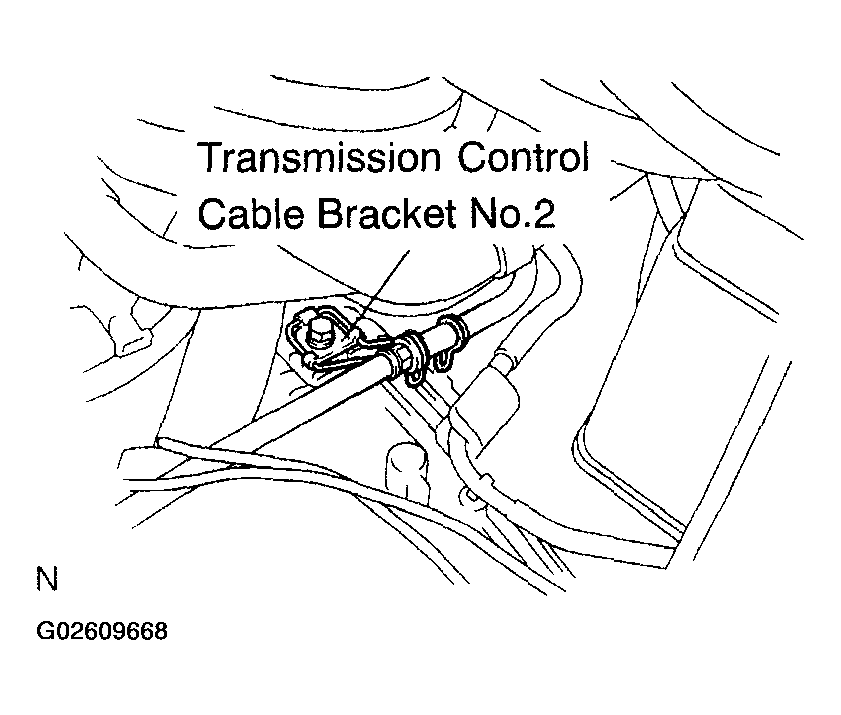

      Fig 3: Disconnecting Transmission Control Cable Assy From Transmission Control Cable Bracket No. 2
      G02609668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 nuts and disconnect the transmission control cable assy from the vehicle.

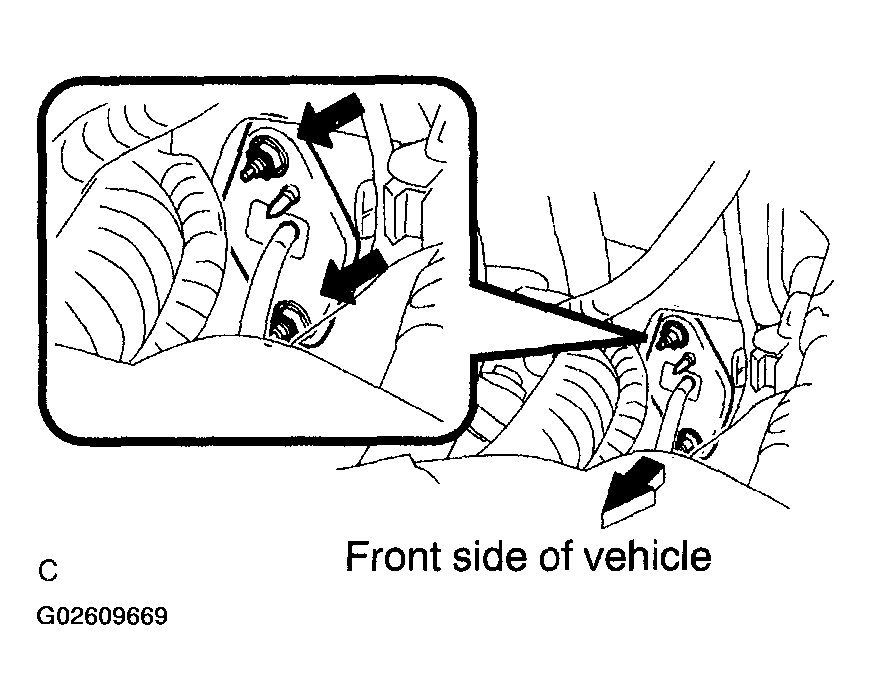

      Fig 4: Disconnecting Transmission Control Cable Assy From Vehicle
      G02609669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a screwdriver, disconnect the cable end from the shift lever assy.
    7. Using a small screwdriver, disconnect the cable outer of transmission control cable assy from the shift lever assy.
    8. Pull out the control cable from the vehicle.
  17. CONNECT TRANSMISSION CONTROL CABLE ASSY
    1. Pull in the control cable to the body.

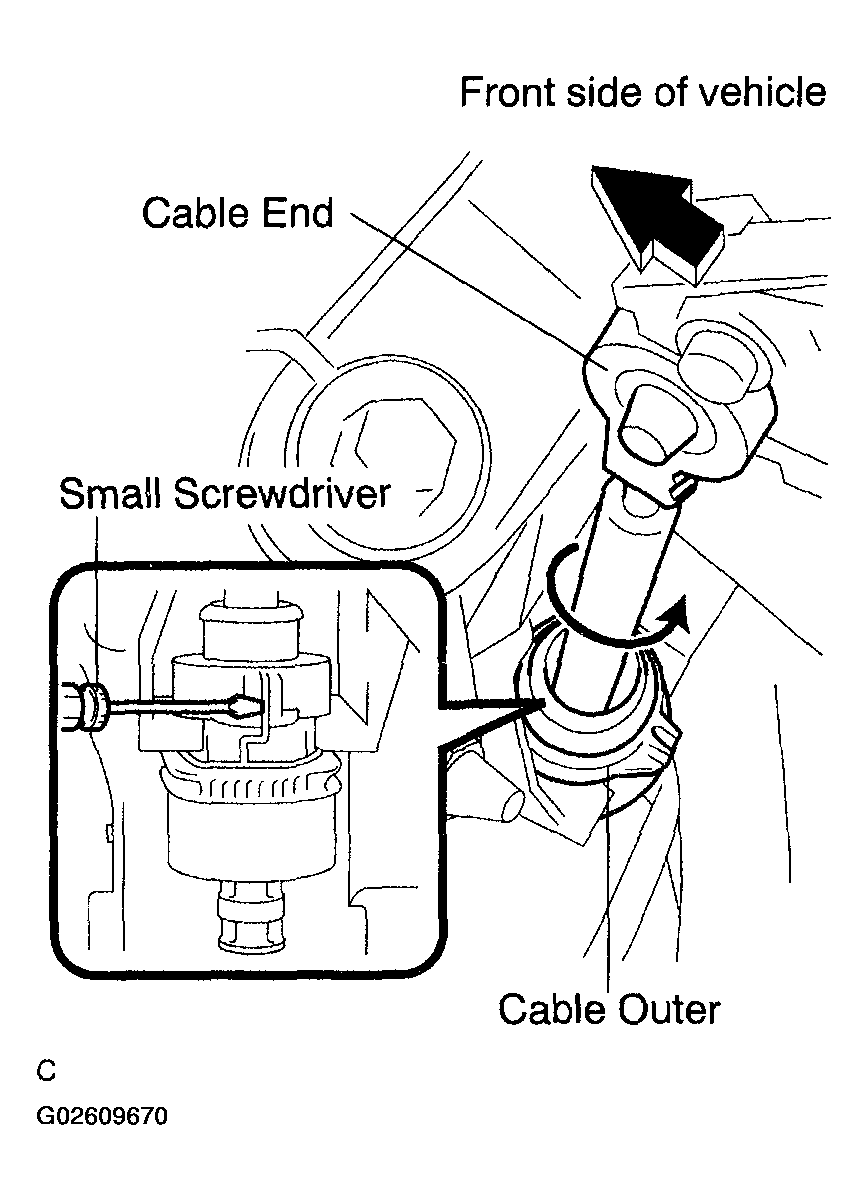

      Fig 5: Disconnecting Cable Outer Of Transmission Control Cable Assy From Shift Lever Assy
      G02609670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the cable end as shown.

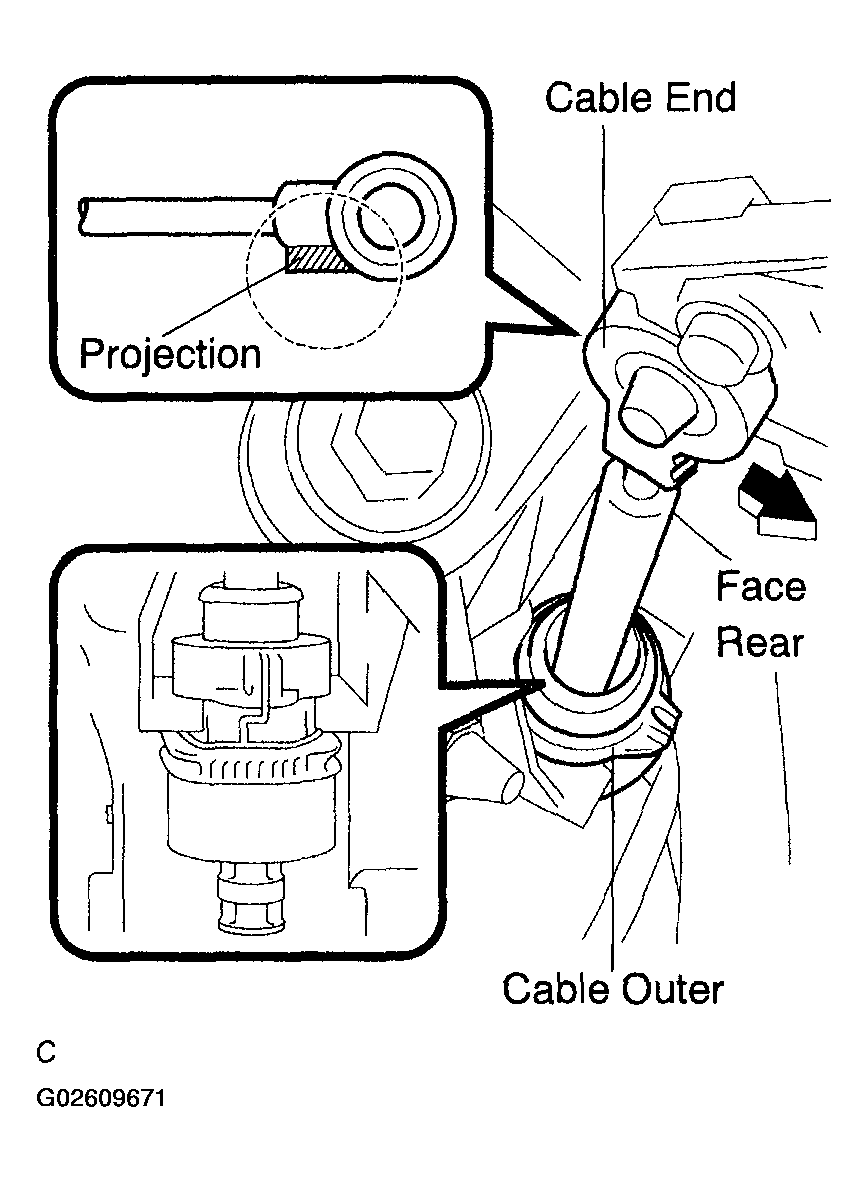

      Fig 6: Installing Cable End
      G02609671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. When installing the transmission control cable assy on the shift lever plate, place the projection of the shift cable downward to fit in the groove of the shift lever plate (Fig 7).

      Confirm that the spring in the shift cable outer has moved to the position (Fig 7) shown.

      Confirm that the shift cable is installed on the shift lever plate properly.

      NOTE:
      • To prevent torsion of the inner cable, the projection on the eye end should face rear.
      • Push the cable end to the bottom of the pin.

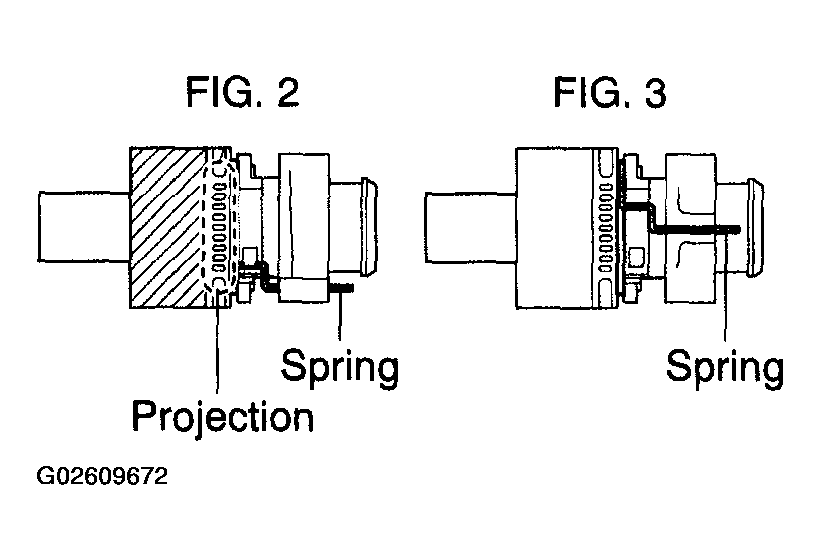

      Fig 7: Installing Transmission Control Cable Assy On Shift Lever Plate
      G02609672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the transmission control cable assy and 2 nuts.

      Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

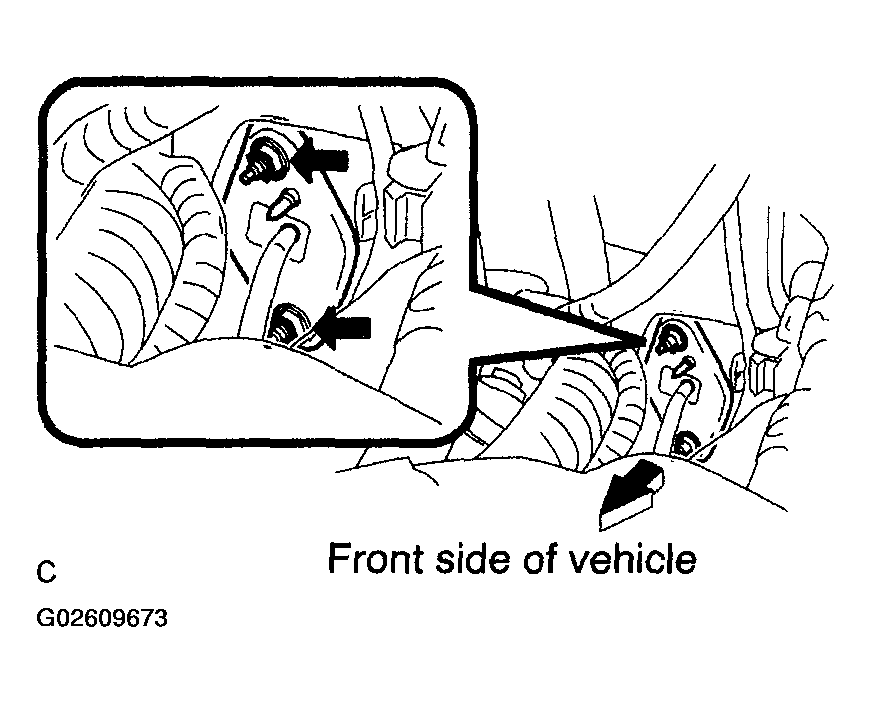

      Fig 8: Installing Transmission Control Cable Assy & 2 Nuts
      G02609673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the transmission control cable assy to the transmission control cable bracket No. 2.

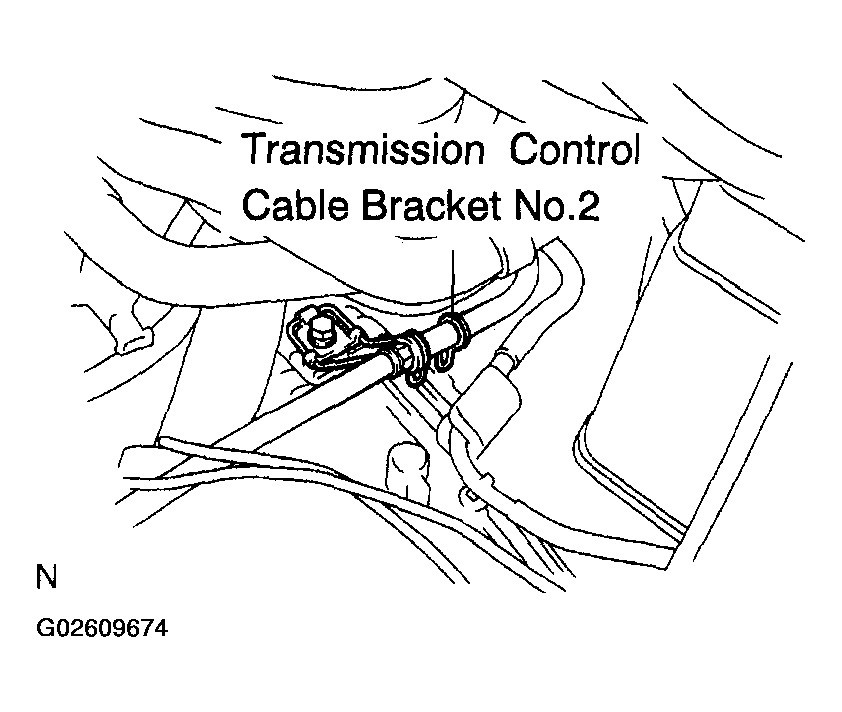

      Fig 9: Connecting Transmission Control Cable Assy To Transmission Control Cable Bracket No. 2
      G02609674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Temporarily install the transmission control cable assy to the control shaft lever with the nut.
      Fig 10: Installing Transmission Control Cable Assy To Control Shaft Lever With Nut
      G02609675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the transmission control cable assy and clip to the bracket.
    Fig 11: Installing Transmission Control Cable Assy & Clip To Bracket
    G02609676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  REPLACEMENT  )
  19. INSTALL POSITION INDICATOR HOUSING ASSY (See  OVERHAUL  )
  20. INSTALL SHIFT LEVER KNOB SUB-ASSY (See  OVERHAUL  )
  21. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT  )
  22. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT  )
