Shift Lock Solenoid: Inspection

1. Disconnect the solenoid connector.
2. Connect SLS+ (2) terminal to the batteries' positive (+) terminal, and SLS- (1) terminal to the battery negative (-) terminal, and apply about 12V between SLS+ - SLS- terminals.
3. Check that operation noise can be heard from the solenoid.

If the solenoid does not operate, replace the solenoid.

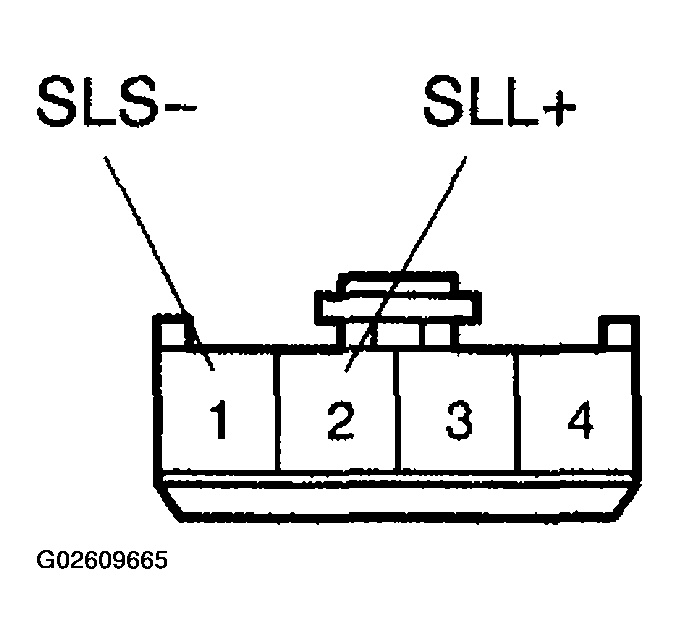

Fig 1: Identifying Shift Lock Solenoid Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
