Stabilizer Bar Front (4WD): Replacement

HINT:

See COMPONENTS .

1. REMOVE FRONT WHEELS
2. REMOVE FRONT STABILIZER LINK ASSY LH (See  STABILIZER BAR FRONT (FF)  )
3. REMOVE FRONT STABILIZER LINK ASSY RH

   HINT:

   Remove the RH side by the same procedures as the LH side.

4. REMOVE EXHAUST PIPE ASSY CENTER (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
5. REMOVE FRONT STABILIZER BRACKET NO. 1 LH
   1. Remove the 2 bolts, the front stabilizer bracket No. 1 LH and the front stabilizer bracket No. 2 LH.

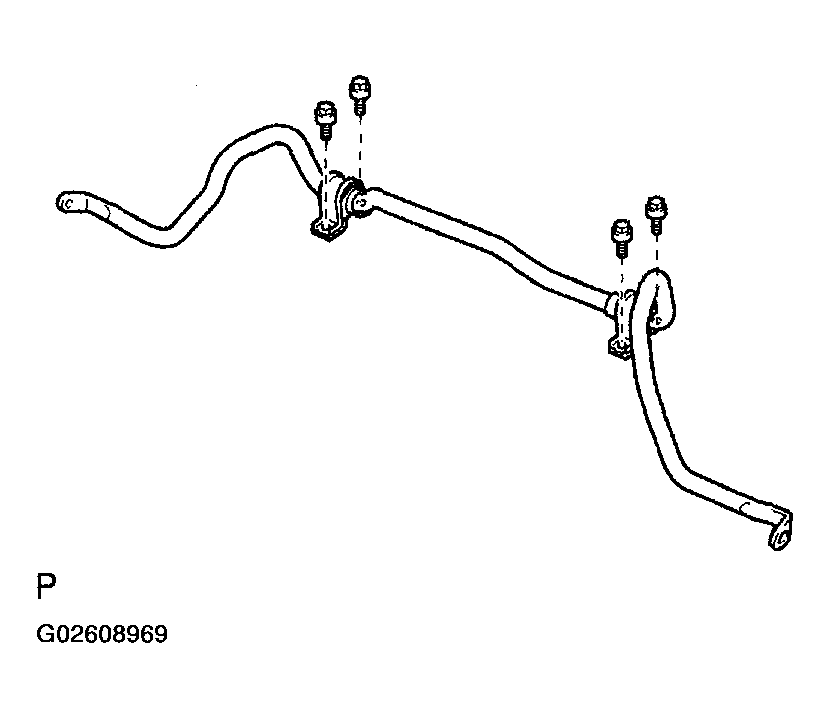

   Fig 1: Removing 2 Bolts & Front Stabilizer Bracket No. 1 LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT STABILIZER BRACKET NO. 1 RH

   HINT:

   Remove the RH side by the same procedures as the LH side.

7. SEPARATE TIE ROD ASSY LH (See  OVERHAUL  )

   SST 09628-62011

8. SEPARATE TIE ROD ASSY RH

   SST 09628-62011

   HINT:

   Remove the RH side by the same procedures as the LH side.

9. SEPARATE PRESSURE FEED TUBE ASSY (See  OVERHAUL  )

   SST 09023-12701

10. SEPARATE STEERING INTERMEDIATE SHAFT ASSY (See  OVERHAUL  )
11. REMOVE RACK & PINION POWER STEERING GEAR ASSY (See  OVERHAUL  )
12. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 1 (See  REPLACEMENT  )
13. REMOVE MANIFOLD STAY (See  REPLACEMENT  )
14. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSY (See  REPLACEMENT  )
15. REMOVE FRONT STABILIZER BAR BUSH NO. 1
16. REMOVE STABILIZER BAR FRONT
17. INSPECT FRONT STABILIZER LINK ASSY LH
    1. As shown in Fig 2 , flip the ball joint stud back and forth 5 times, before installing the nut.
    2. Using a torque wrench, turn the nut continuously at a rate of 2 - 4 seconds per 1 turn and take the torque reading on the 5th turn.

       Turning torque:

       0.05 - 1.96 N.m (0.5 - 20 kgf.cm, 0.4 - 17.4 in.lbf)

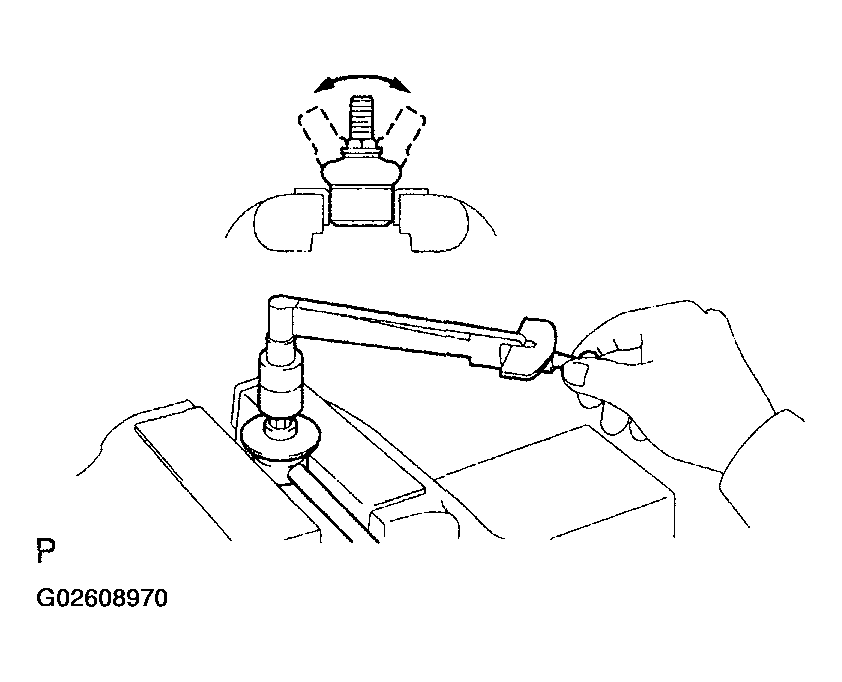

    Fig 2: Flipping Ball Joint Stud

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL STABILIZER BAR FRONT
19. INSTALL FRONT STABILIZER BAR BUSH NO.1
    1. Install the 2 front stabilizer bar bush No.1 to the stabilizer bar front.
    NOTE: Install the bushings with the slit facing on the rear side of the vehicle.

    HINT:

    Install the bushing to the outer side of the bushing stopper on the stabilizer bar as shown.

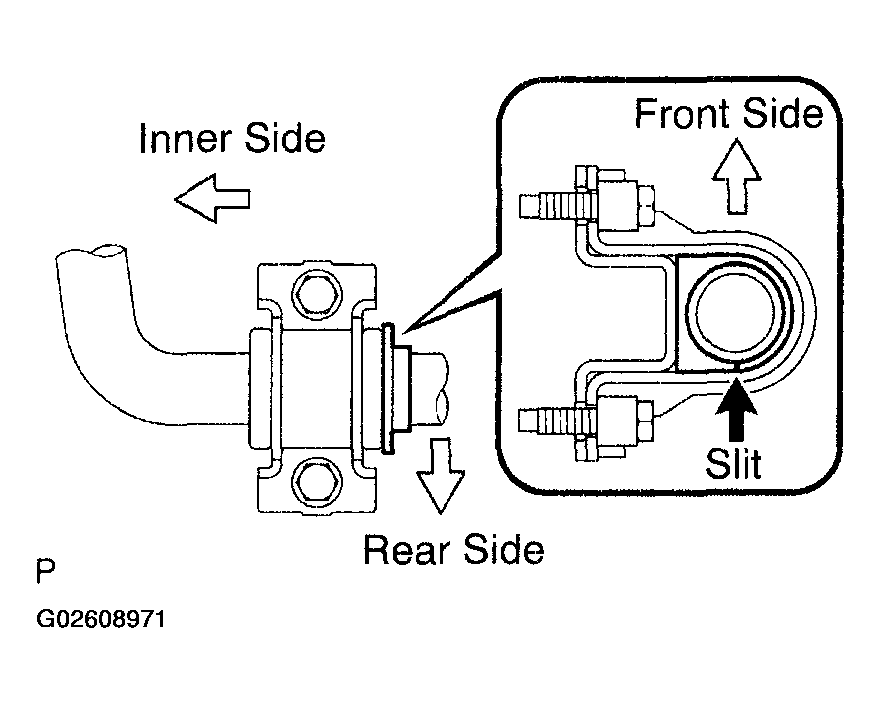

    Fig 3: Installing 2 Front Stabilizer Bar Bush No.1 To Stabilizer Bar Front

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSY (See  REPLACEMENT  )
21. INSTALL MANIFOLD STAY (See  REPLACEMENT  )
22. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO.1 (See  REPLACEMENT  )
23. INSTALL STEERING INTERMEDIATE SHAFT ASSY (See  OVERHAUL  )
24. INSTALL RACK & PINION POWER STEERING GEAR ASSY (See  OVERHAUL  )
25. CONNECT PRESSURE FEED TUBE ASSY (See  OVERHAUL  )

    SST 09023-12701

26. INSTALL TIE ROD ASSY LH (See  OVERHAUL  )
27. INSTALL TIE ROD ASSY RH

    HINT:

    Remove the RH side by the same procedures as the LH side.

28. INSTALL FRONT STABILIZER BRACKET NO.1 LH
    1. Install the front stabilizer bracket No.1 LH with the 2 bolts.

       Torque: 17 N.m (173 kgf.cm, 12 ft.lbf)

    Fig 4: Installing Front Stabilizer Bracket No. 1 LH With 2 Bolts

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29. INSTALL FRONT STABILIZER BRACKET NO.1 RH

    HINT:

    Install the RH side by the same procedures as the LH side.

30. REMOVE EXHAUST PIPE ASSY CENTER (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
31. INSTALL FRONT STABILIZER LINK ASSY LH (See  STABILIZER BAR FRONT (FF)  )
32. INSTALL FRONT STABILIZER LINK ASSY RH

    HINT:

    Install the RH side by the same procedures as the LH side.

33. INSTALL FRONT WHEELS
34. INSPECT CENTER FRONT WHEEL
35. INSPECT STEERING WHEEL CENTER POINT
36. ADD POWER STEERING FLUID
37. BLEED POWER STEERING FLUID (See  ON-VEHICLE INSPECTION  )
38. CHECK POWER STEERING FLUID LEAKAGE
39. INSPECT AND ADJUST  FRONT WHEEL ALIGNMENT
