Home
>>
Toyota
>>
2005
>>
Sienna LE, AWD
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belt
>>
Seat Belt Warning System
>>
Location
Seat Belt Warning System: Location

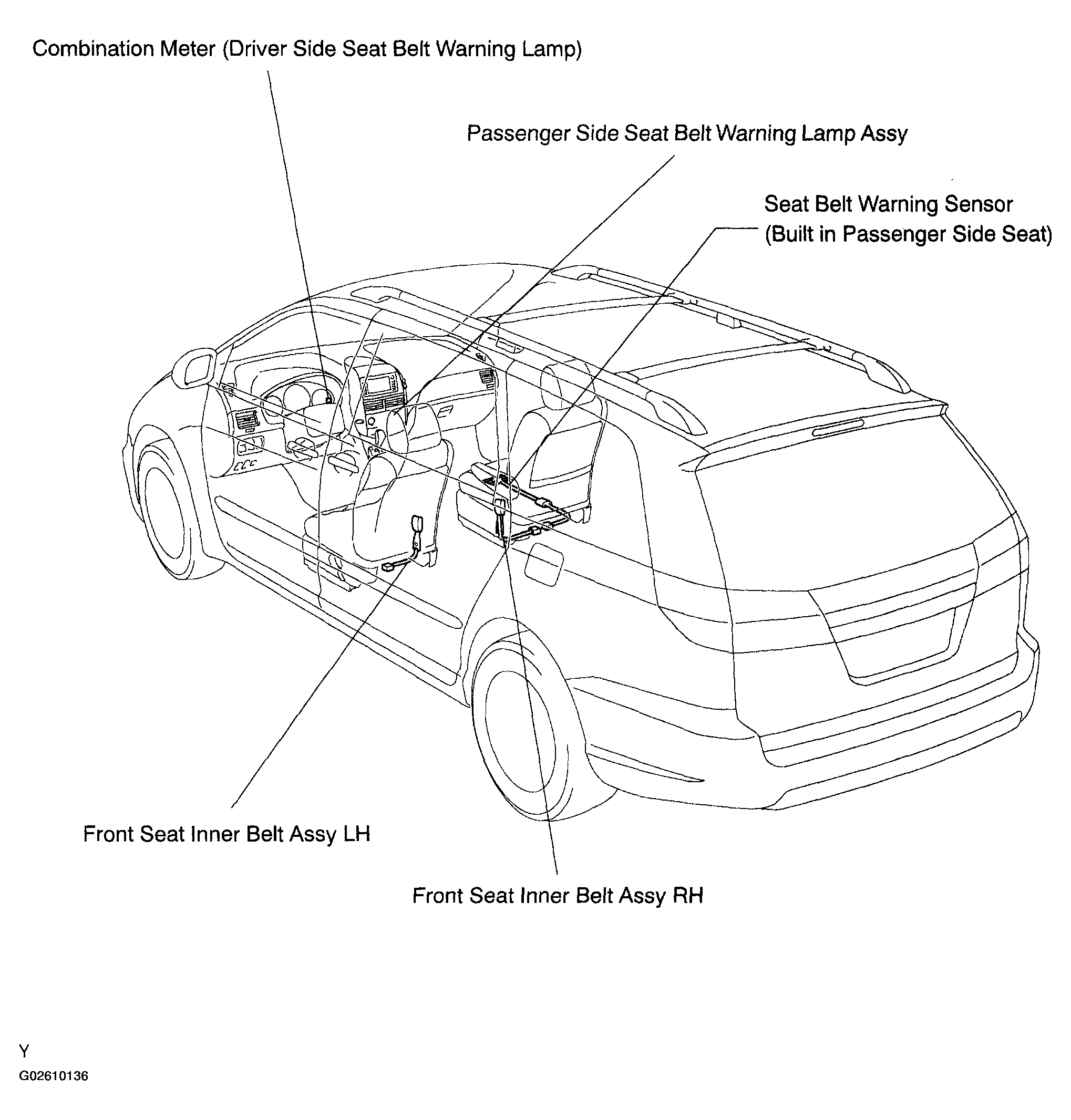

Fig 1: Identifying Seat Belt Warning System Components Location
