Wheel Alignment Specifications (SU008-06)

WARNING: This page is about the Sienna CE, which is a different variant/trim than selected.

Publication date: 2006-12-21
Reference number: SU008-06

WHEEL ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SU008-06, Date of Issue: December 21, 2006

TOYOTA:	2004 - 2006 Sienna
SECTION:	SUSPENSION
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

Introduction

The purpose of this bulletin is to provide all necessary suspension alignment measurement and confirmation specifications in one document. The following specifications should be used in place of those contained in your alignment equipment if a discrepancy is discovered.

Tire Pressure Specifications
Vehicle Height Specifications
Front Total Toe Specifications
Front Wheel Angle Specifications
Front Wheel Camber Specifications
Front Wheel Caster Specifications
Steering Angle Inclination (SAI) Specifications
Rear Wheel Camber Specifications
Rear Total Toe Specifications
Repair Manual References
NOTE:
- The rear total toe and vehicle height specifications listed in this bulletin may be different than those listed in the 2004, 2005, and 2006 model year Sienna Repair Manuals. The values provided by this bulletin should be used if a discrepancy is discovered.
- In some cases alignment equipment software may allow the user to change the values stored in the equipment. Using the equipment user manual, determine whether your equipment has this capability and update the specifications, if applicable.

Applicable Vehicles

2004 - 2006 model year Sienna vehicles.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Alignment Specifications

NOTE: The tables in this TSB include alignment specifications in all possible units of measurement. Confirm that you are referring to the same units of measurement in the chart as your alignment machine is displaying.

Tire Pressure Specifications

TIRE PRESSURE SPECIFICATIONS

TYPE	TIRE	MEASUREMENT UNIT	SPECIFICATION
2WD & 4WD	All	kPa	240
2WD & 4WD	All	psi	35

Vehicle Height Specifications

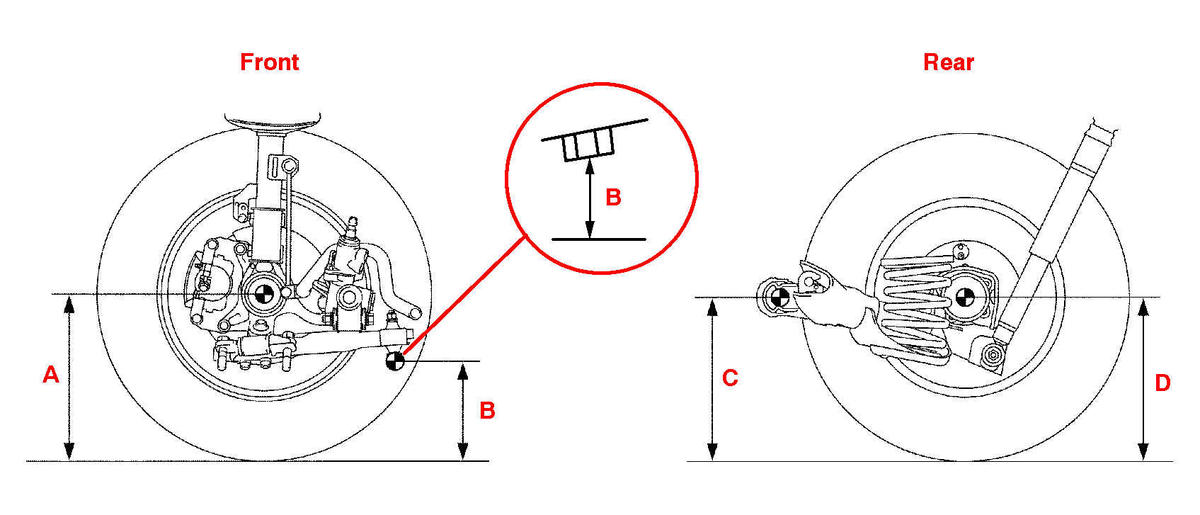

Fig 1: Identifying Vehicle Height Measuring Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measurement points:

Ground clearance of front wheel center.
Ground clearance of lower suspension arm No. 2 set bolt head center of downward face.
Ground clearance of rear axle carrier bush set bolt center.

Ground clearance of rear wheel center.

VEHICLE HEIGHT SPECIFICATIONS

TYPE	TIRE	MEASUREMENT	MEASUREMENT UNIT	SPECIFICATION
2WD	All	Front (A B)	millimeters	114.0 mm
		Front (A B)	inches	4.49 in.
		Rear (D C)	millimeters	-27.5 mm
		Rear (D C)	inches	-1.08 in.
AWD		Front (A B)	millimeters	116 mm
		Front (A B)	inches	4.57 in.
		Rear (D C)	millimeters	-45.5 mm
		Rear (D C)	inches	-1.79 in.

NOTE: It is necessary to confirm that the tire pressures and vehicle heights are set to the specified values for accurate suspension alignment measurements.

Front Total Toe Specifications

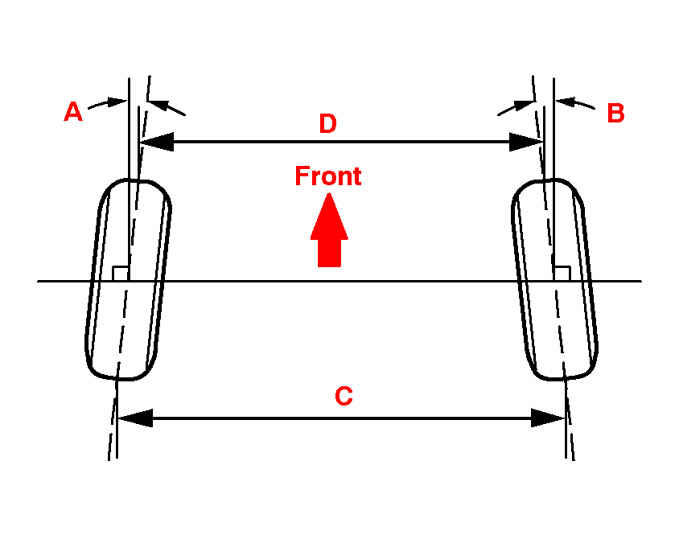

Fig 2: Identifying Front Toe Measuring Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT TOTAL TOE SPECIFICATIONS

TYPE	TIRE	MEASUREMENT	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	A + B	degrees	-0.18°	0.15°
2WD	All	C - D	minutes	-2.2'	1.8'
AWD	All	A + B	degrees	-0.13°	0.20°
AWD	All	C - D	minutes	-1.6'	2.4'

Front Wheel Angle Specifications

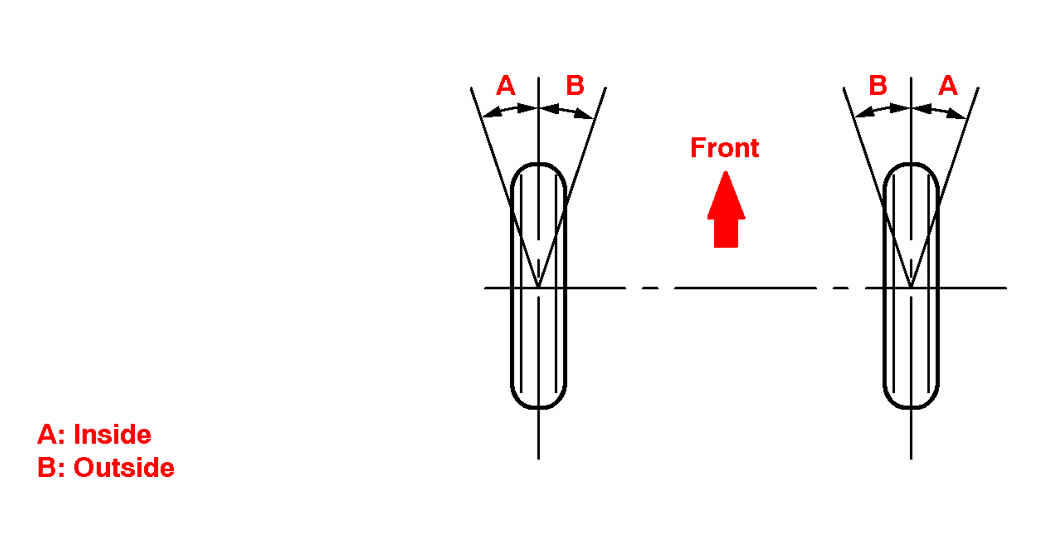

Fig 3: Identifying Front Wheel Angle Measuring Points

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT WHEEL ANGLE SPECIFICATIONS

TYPE	TIRE	ANGLE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	Inside Wheel	degrees	40.75°	44.75°
		Inside Wheel	minutes	40° 45'	44° 45'
		Outside Wheel	degrees	36.35°
		Outside Wheel	minutes	36° 21'
AWD		Inside Wheel	degrees	40.70°	44.70°
		Inside Wheel	minutes	40° 42'	44° 42'
		Outside Wheel	degrees	36.27°
		Outside Wheel	minutes	36° 16'

Front Wheel Camber Specifications

FRONT WHEEL CAMBER SPECIFICATIONS - INDIVIDUAL WHEEL

INDIVIDUAL WHEEL SPECIFICATIONS
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD & AWD	All	degrees	-1.03°	0.47°
2WD & AWD	All	minutes	-1.02'	28'

FRONT WHEEL CAMBER SPECIFICATIONS - RIGHT-LEFT ERROR (CROSS CAMBER)

RIGHT-LEFT ERROR (CROSS CAMBER)
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD & AWD	All	degrees	-0.5°	0.5°
2WD & AWD	All	minutes	-30'	30'

Front Wheel Caster Specifications

FRONT WHEEL CASTER SPECIFICATIONS - INDIVIDUAL WHEEL

INDIVIDUAL WHEEL SPECIFICATIONS
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	degrees	2.05°	3.55°
2WD		minutes	2° 3'	3° 33'
AWD		degrees	1.92°	3.42°
AWD		minutes	1° 55'	3° 25'

RONT WHEEL CASTER SPECIFICATIONS - RIGHT-LEFT ERROR (CROSS CASTER)

RIGHT-LEFT ERROR (CROSS CASTER)
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD & AWD	All	degrees	-0.5°	0.5°
2WD & AWD	All	minutes	-30'	30'

Steering Angle Inclination (SAI) Specifications

STEERING ANGLE INCLINATION (SAI) SPECIFICATIONS - INDIVIDUAL WHEEL

INDIVIDUAL WHEEL SPECIFICATIONS
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	degrees	9.67°	11.17°
2WD		minutes	9° 40'	11° 10'
AWD		degrees	9.27°	10.77°
AWD		minutes	9° 27'	10° 57'

STEERING ANGLE INCLINATION (SAI) SPECIFICATIONS - RIGHT-LEFT ERROR (CROSS SAI)

RIGHT-LEFT ERROR (CROSS SAI)
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD & AWD	All	degrees	-0.5°	0.5°
2WD & AWD	All	minutes	-30'	30'

Rear Wheel Camber Specifications

REAR WHEEL CAMBER SPECIFICATIONS - INDIVIDUAL WHEEL

INDIVIDUAL WHEEL SPECIFICATIONS
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	degrees	-0.87°	-1.87°
	All	minutes	-52'	-1° 52'
	AWD	degrees	-0.92°	-1.92°
	AWD	minutes	-55'	-1° 55'

REAR WHEEL CAMBER SPECIFICATIONS - RIGHT-LEFT ERROR (CROSS CAMBER)

RIGHT-LEFT ERROR (CROSS CAMBER)
TYPE	TIRE	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD & AWD	All	degrees	-0.5°	0.5°
2WD & AWD	All	minutes	-30'	30'

Rear Total Toe Specifications

NOTE: The Sienna rear suspension and axle beam assembly has a toe-correcting feature built in to the trailing arm bushings. (Refer to the Technical Information System [TIS], 2004 model year Sienna New Car Features, Suspension - Chassis and Drivetrain - "Suspension" .) For this reason, it is important to focus on the total toe measurement rather than individual right and left toe measurements. Most 4-wheel alignment equipment will measure and display individual right and left toe readings and may indicate that a right or left toe is out of specification. If total toe is within specification, you may disregard individual right and left readings as the rear suspension and axle beam assembly will automatically "correct" the individual toe settings while the vehicle is driven.

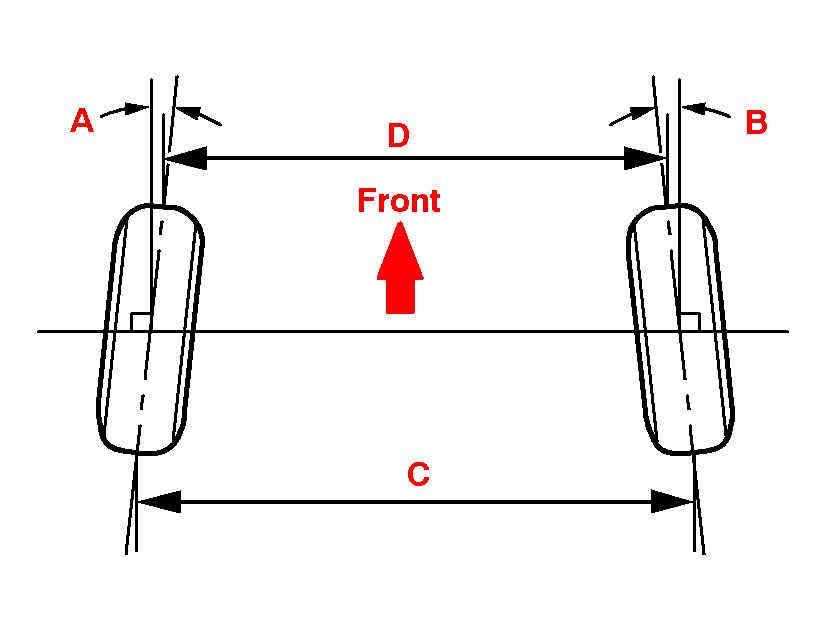

Fig 4: Identifying Rear Total Toe Measuring Points

REAR TOTAL TOE SPECIFICATIONS

TYPE	TIRE	MEASUREMENT	MEASUREMENT UNIT	LOWER LIMIT	UPPER LIMIT
2WD	All	A + B	degrees	0°	0.54°
	All	A + B	minutes	0'	32'
	215/65R16	C - D	millimeters	0 mm	6.4 mm
	225/60R17		millimeters	0 mm	6.6 mm
	215/65R16		inches	0 in.	0.25 in.
	225/60R17		inches	0 in.	0.26 in.
AWD	225/60R17	A + B	degrees	-0.05°	0.49°
	225/60R17	A + B	minutes	-3'	29'
	225/60R17	C - D	millimeters	-0.7 mm	5.9 mm
	225/60R17	C - D	inches	-0.03 in.	0.23 in.

Repair Manual References

Please refer to the applicable Repair Manual sections as listed in the following table to view the diagnostic procedures for performing a suspension alignment measurement.

REPAIR MANUAL REFERENCES

MODEL	MODEL YEAR	AXLE	REPAIR MANUAL LOCATION
Sienna	2004	Front	Front Wheel Alignmen
	2004	Rear	Rear Wheel Alignment
	2005	Front	Front Wheel Alignment
	2005	Rear	Rear Wheel Alignment
	2006	Front	Front Wheel Alignment
	2006	Rear	Rear Wheel Alignment
