Initialization Of Power Back Door (PD044-04)

WARNING: This page is about the Sienna CE, which is a different variant/trim than selected.

Publication date: 2004-10-14
Reference number: PD044-04

INITIALIZATION OF POWER BACK DOOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD044-04, Date of Issue: October 14, 2004

TOYOTA:	2005 Sienna
SECTION:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

Introduction

As a result of the removal of the Short Pin, the "automatic open and close" and "jam protection" functions of the Power Back Door will be inoperative due to loss of the Power Back Door position memory stored in the microcomputer.

Therefore, please initialize the Power Back Door after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE: Any time the battery terminal has been disconnected, initialize the Power Back Door after reconnecting the battery terminal.

Applicable Vehicles

2005 model year Sienna vehicles.

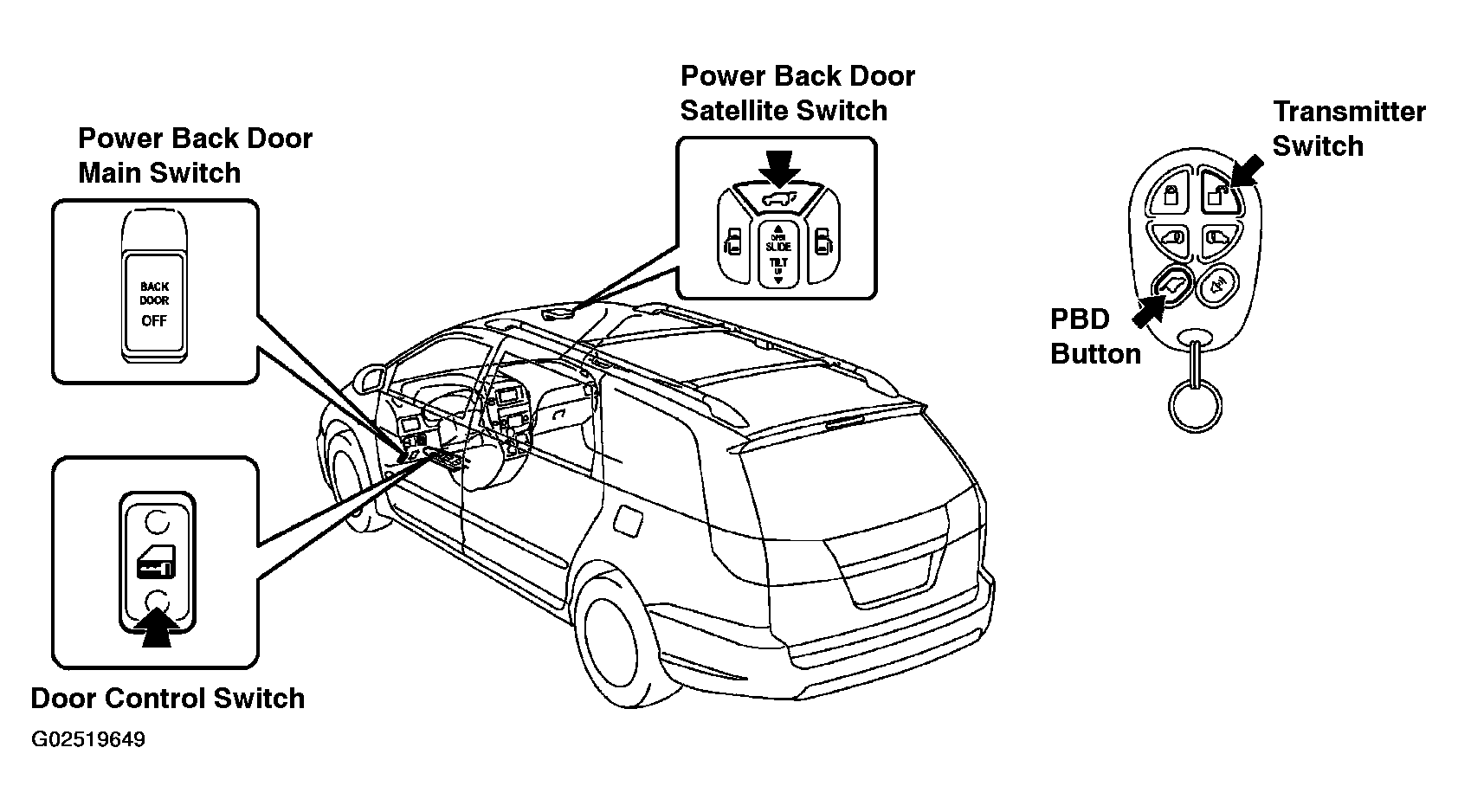

Fig 1: Power Door Switches

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	--	--	--	--

Initialization Procedure

Fully close the power back door.
Check that the power back door will fully open and fully close.
1. Unlock the power back door using the transmitter switch or the door control switch.
2. Turn the ignition switch to the "OFF" position.
3. Check that the power back door main switch is in the "ON" position.
4. Check that the back door will fully open and fully close by pushing the power back door satellite switch or PBD button briefly.
NOTE: Jam protection function becomes effective through the above initialization procedure.

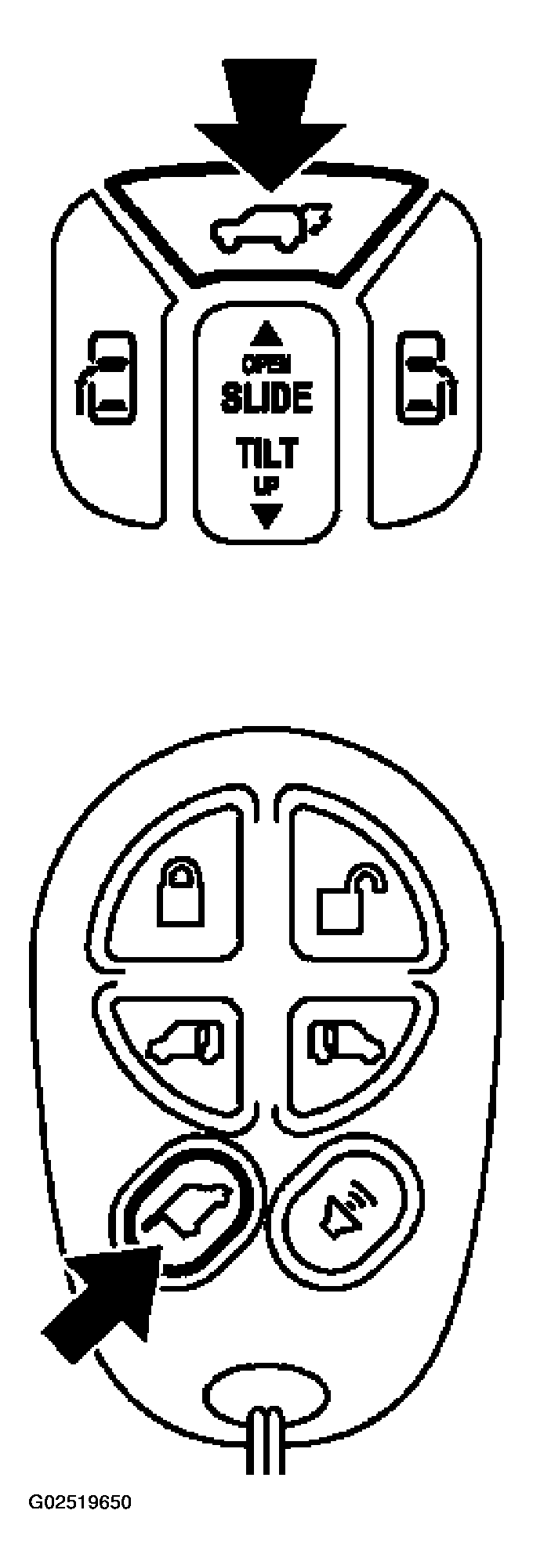

Fig 2: Checking Power Door Switch Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
