Power Steering: Preparation: SST

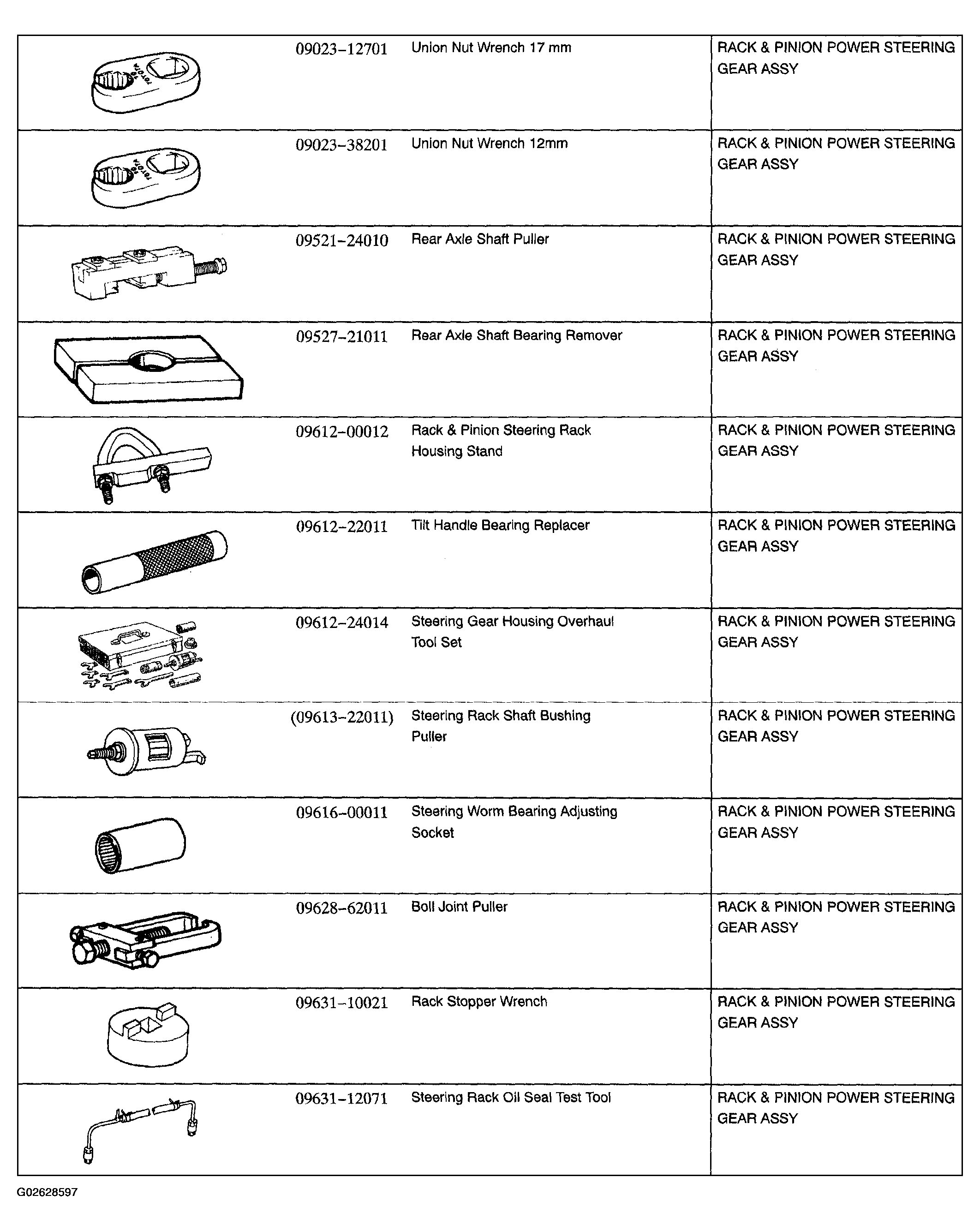

Fig 1: Power Steering - SST Tool Table (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

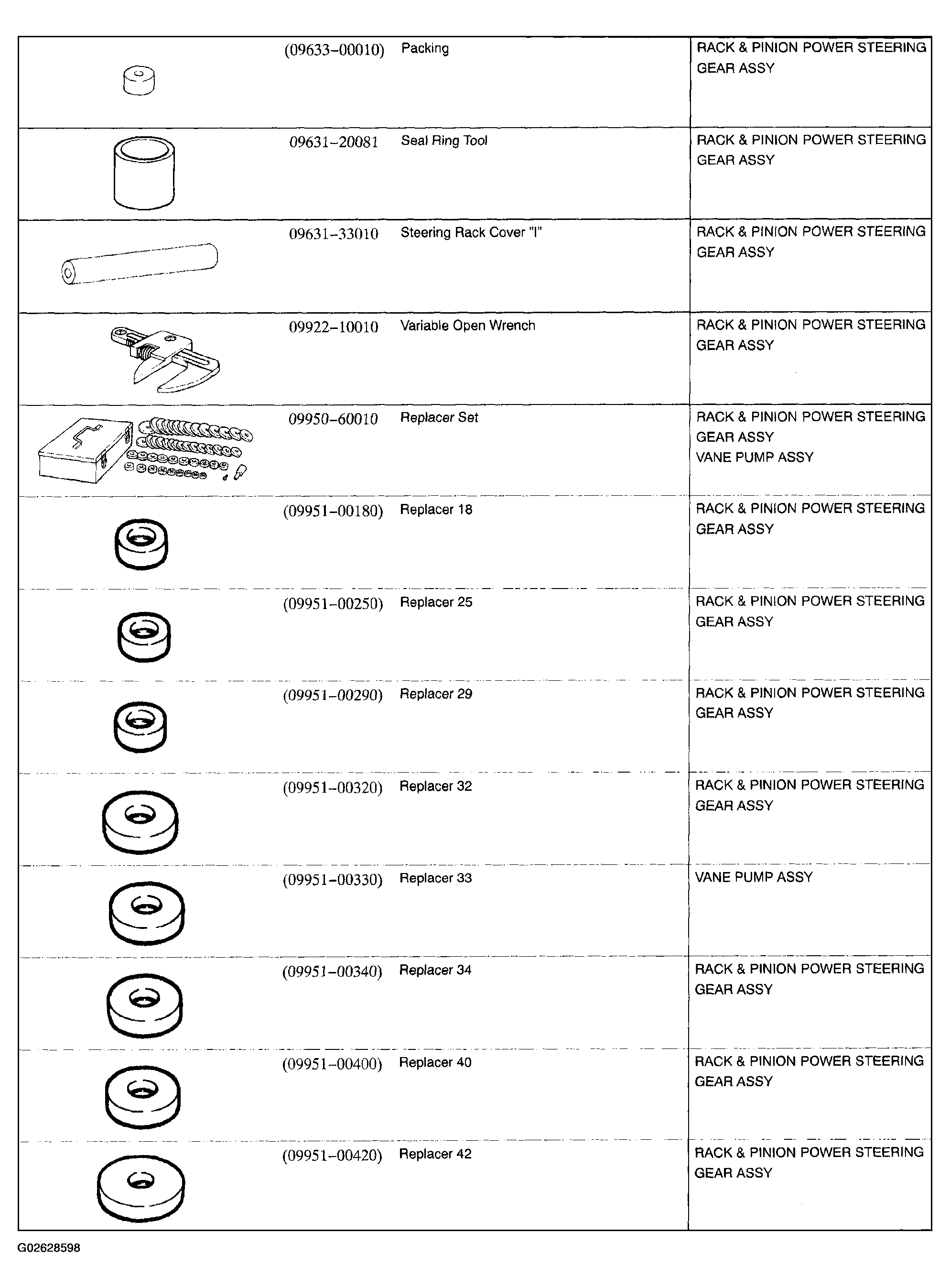

Fig 2: Power Steering - SST Tool Table (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

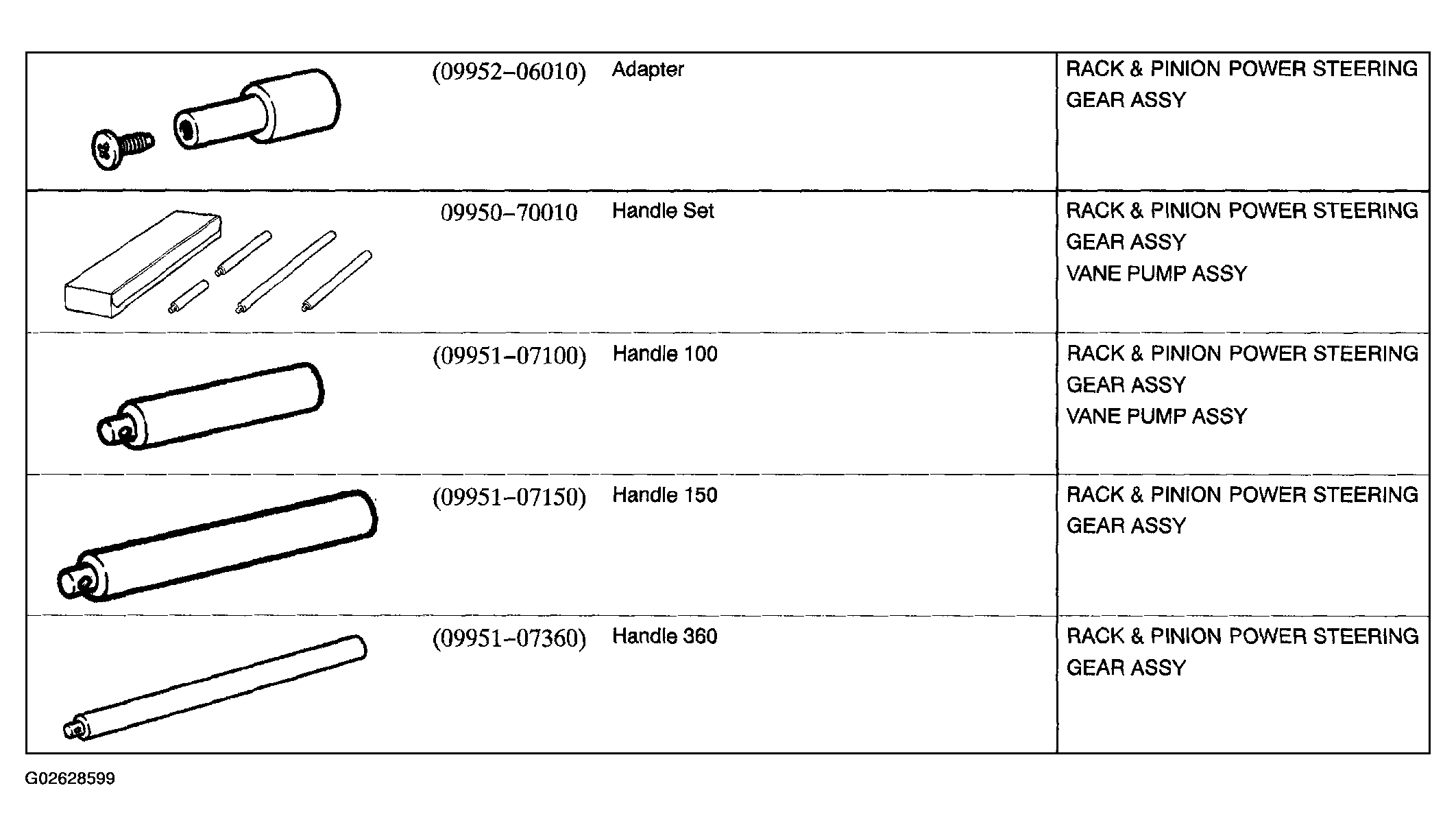

Fig 3: Power Steering - SST Tool Table (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
