Mil Circuit: Wiring Diagram

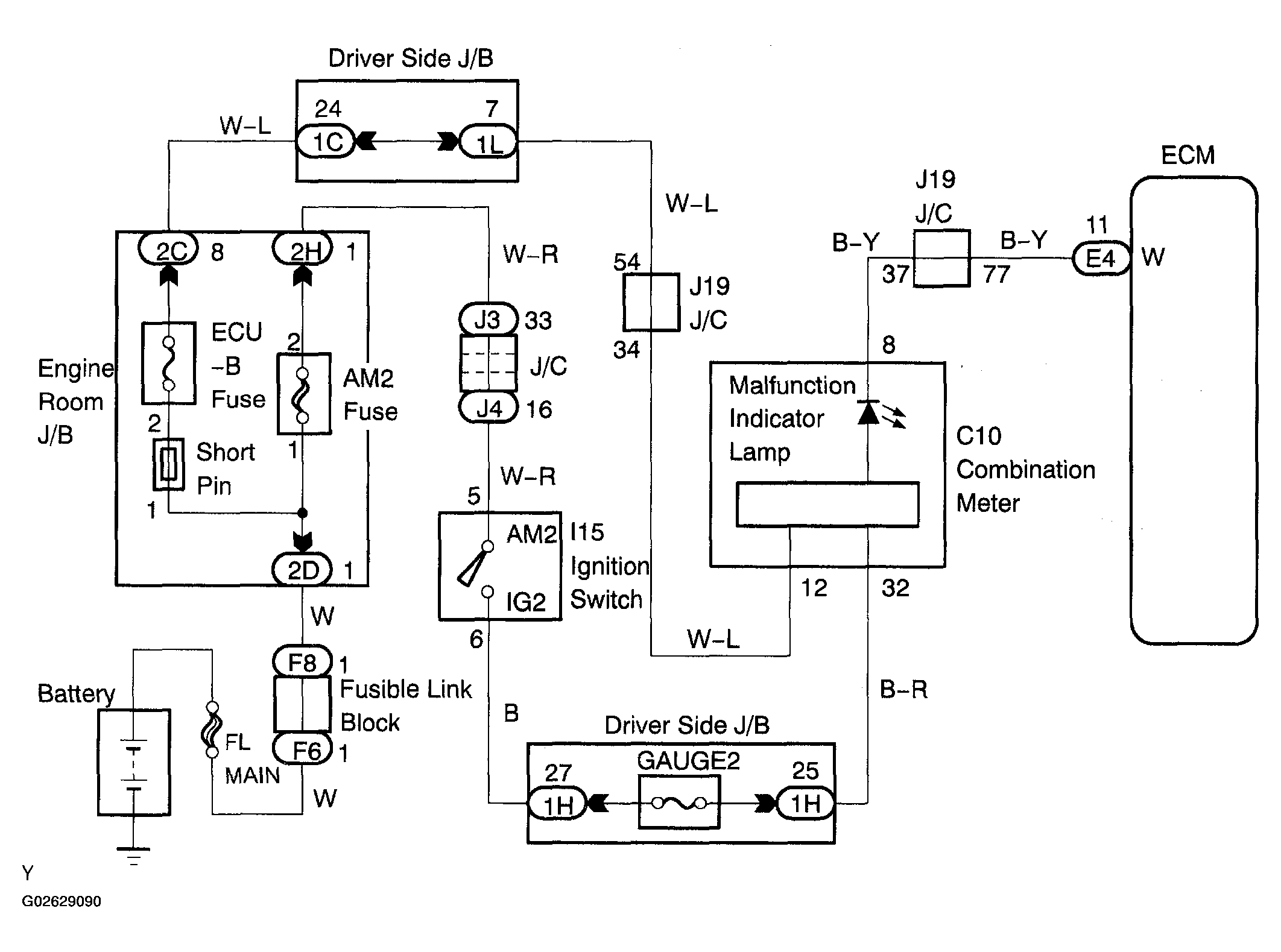

Fig 1: Identifying Wiring Diagram

G02629090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
