EVAP Inspection Procedure: Wiring Diagram

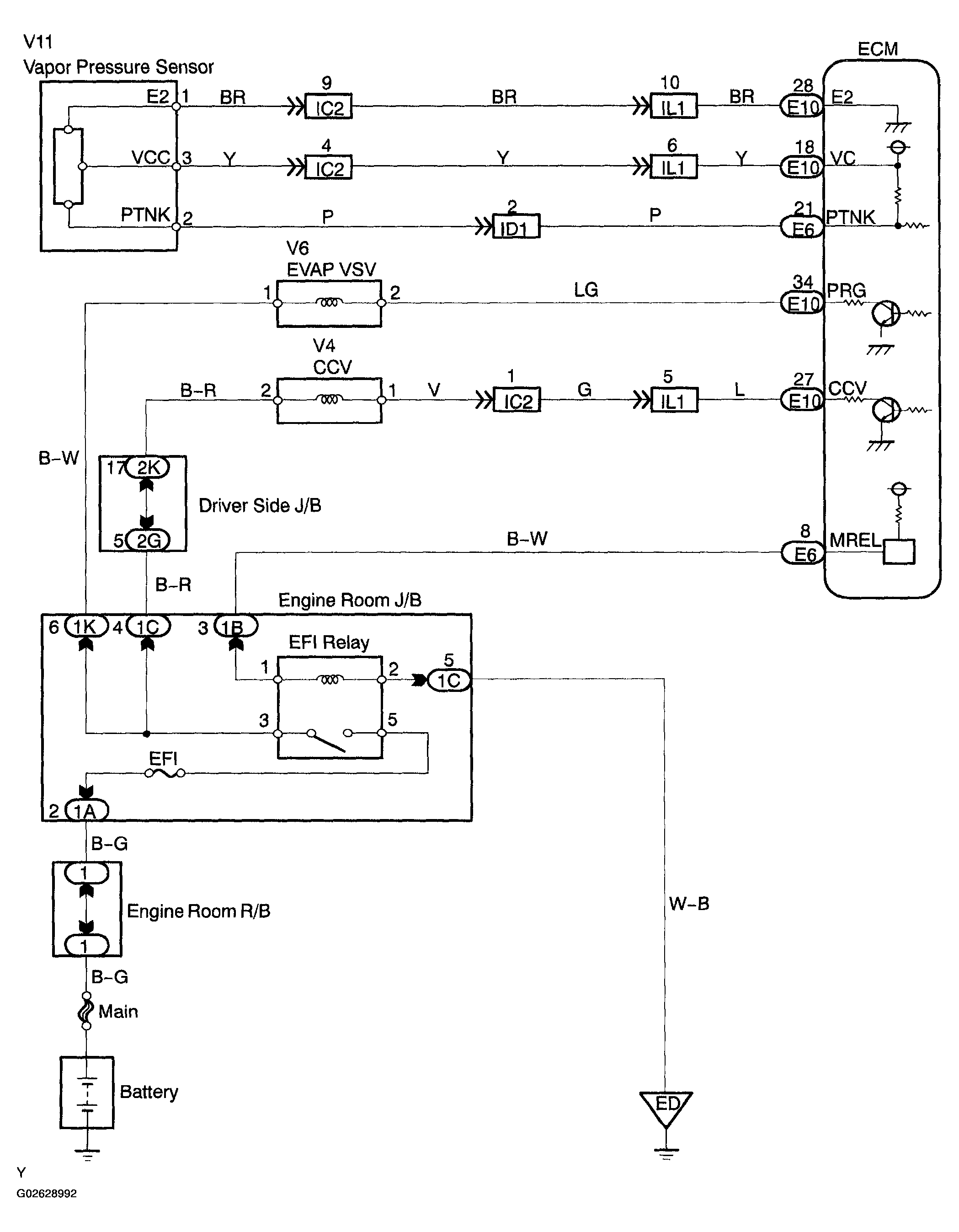

Fig 1: Wiring Diagram

G02628992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
