Home >> Toyota >> 2005 >> Sienna LE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (SFI) - Diagnostics >> DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem >> Circuit Description

Circuit Description

Refer to DTCs P0100 .

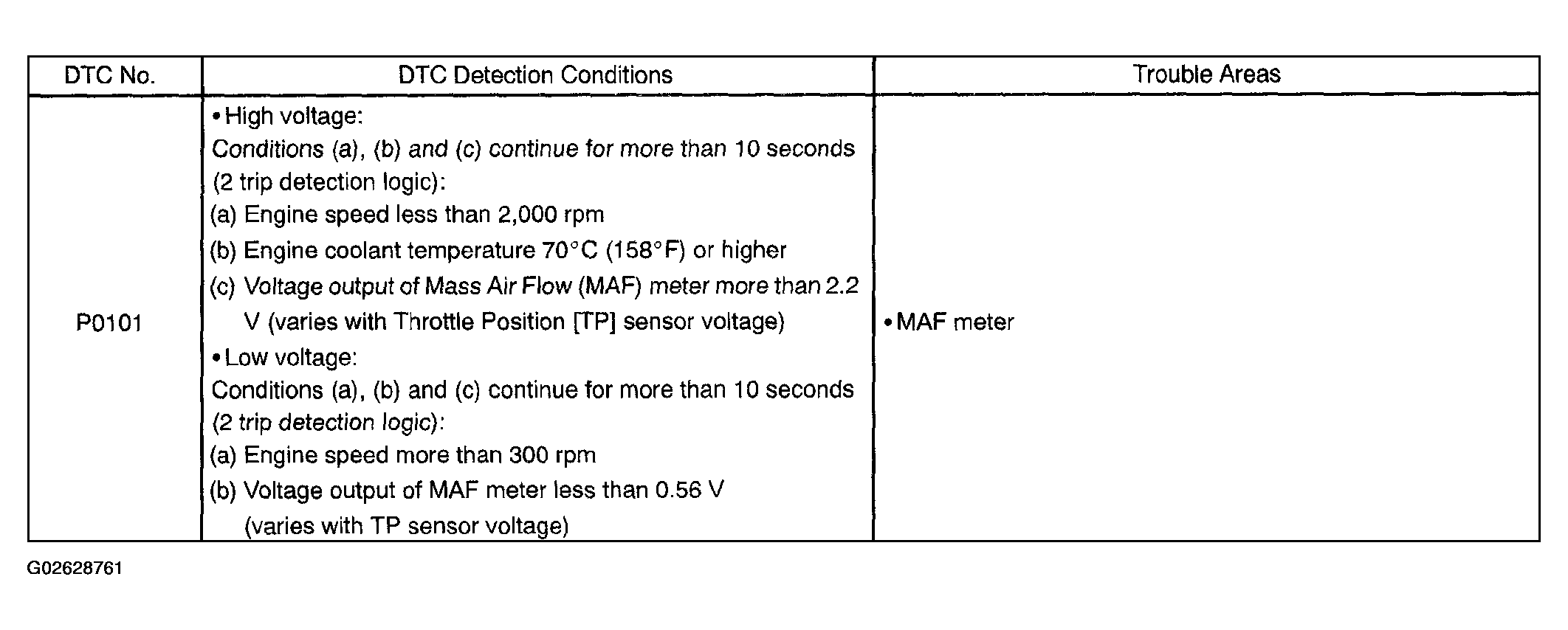

Fig 1: DTC Detecting Condition Table

G02628761

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
