Fuse Box

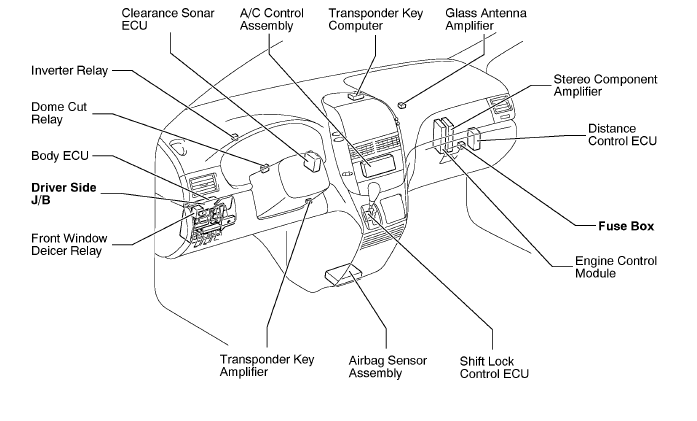

The fuse box is located under the right side of the instrument panel. See Figure.

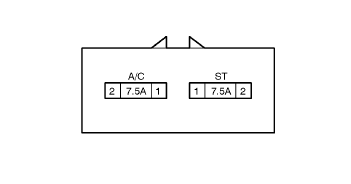

FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C | Manual Air Conditioning (Front) |
| 7.5A | ST | Electronically Controlled Transmission and A/T Indicator Engine Control Starting and Ignition |
