Ignition Or Starter Switch ASSY: Inspection

  1. INSPECT IGNITION OR STARTER SWITCH ASSY
    1. Inspect the switch resistance.

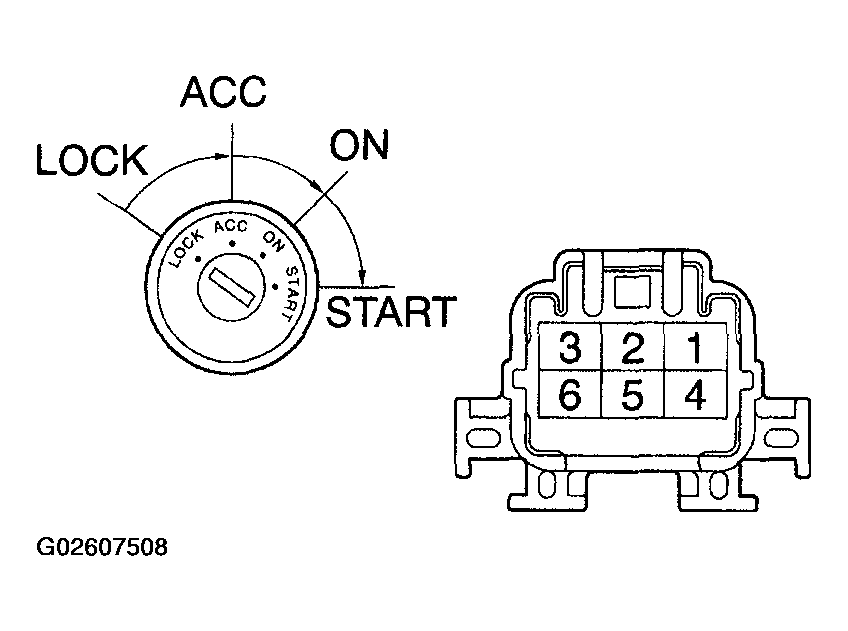

    Fig 1: Inspecting Ignition Or Starter Switch Assembly
    G02607508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    TERMINAL SWITCH POSITION SPECIFIED CONDITION

    Terminal No. Switch Position Specified Condition
    1 - 3 ACC Below 1Ω
    1 - 2 ON
    1 - 3
    5 - 6
    1 - 2 START
    5 - 4
    5 - 6

    If the result is not as specified, replace the switch assy.
