Recommended Tools

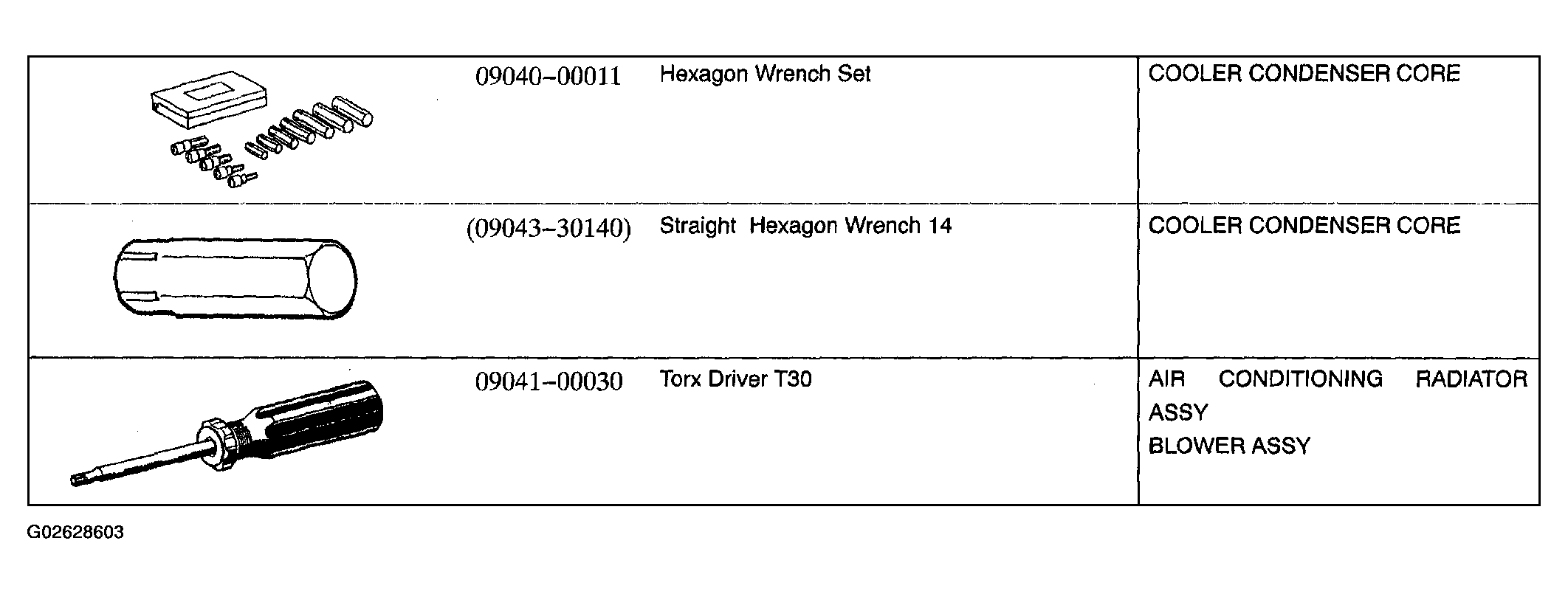

Fig 1: Heater & Air Conditioner - Recommended Tools Table (1 Of 2)
G02628603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

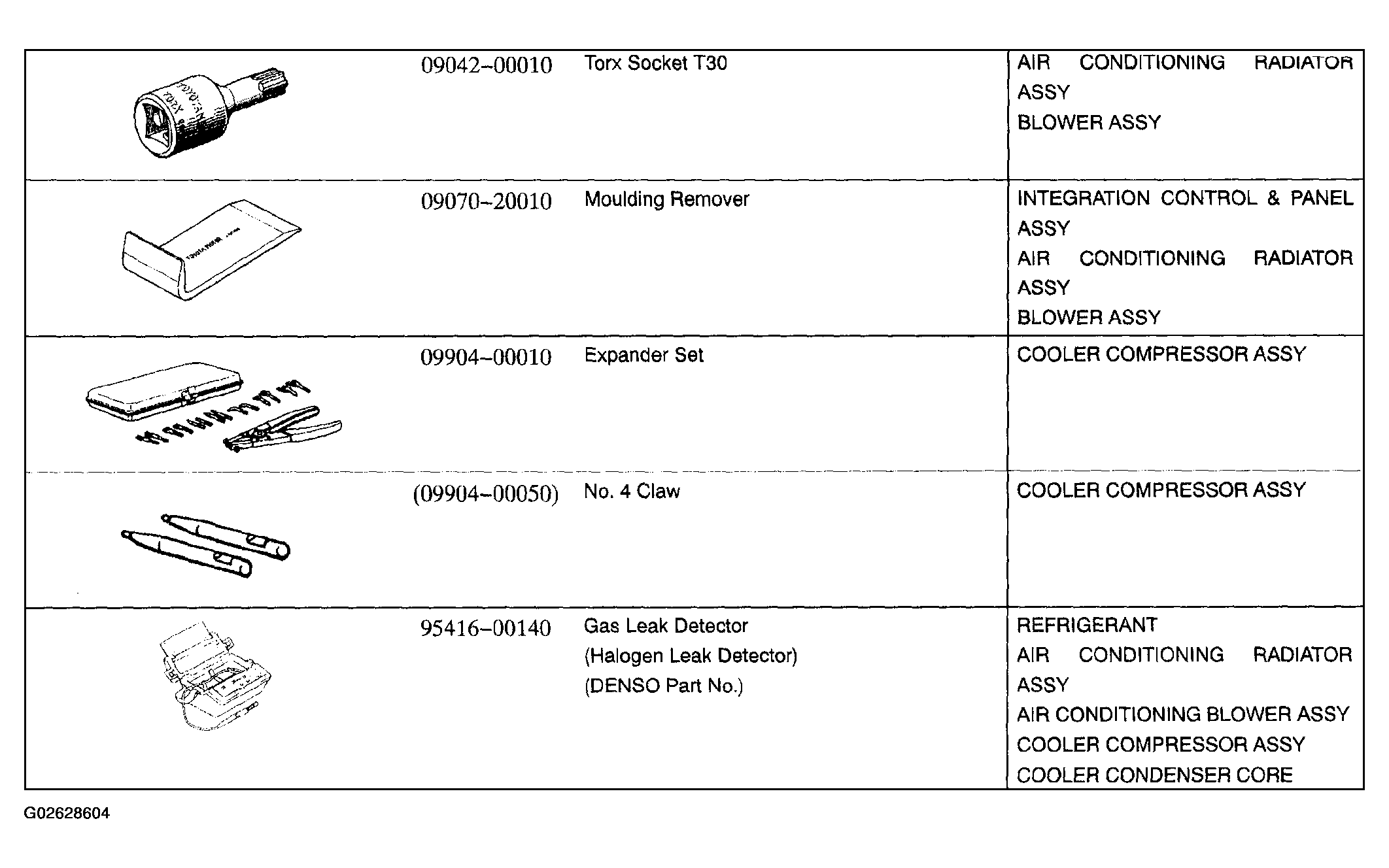

Fig 2: Heater & Air Conditioner - Recommended Tools Table (2 Of 2)
G02628604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx® is a registered trademark of Textron Inc.
