Fuel Pump Control Circuit: Wiring Diagram

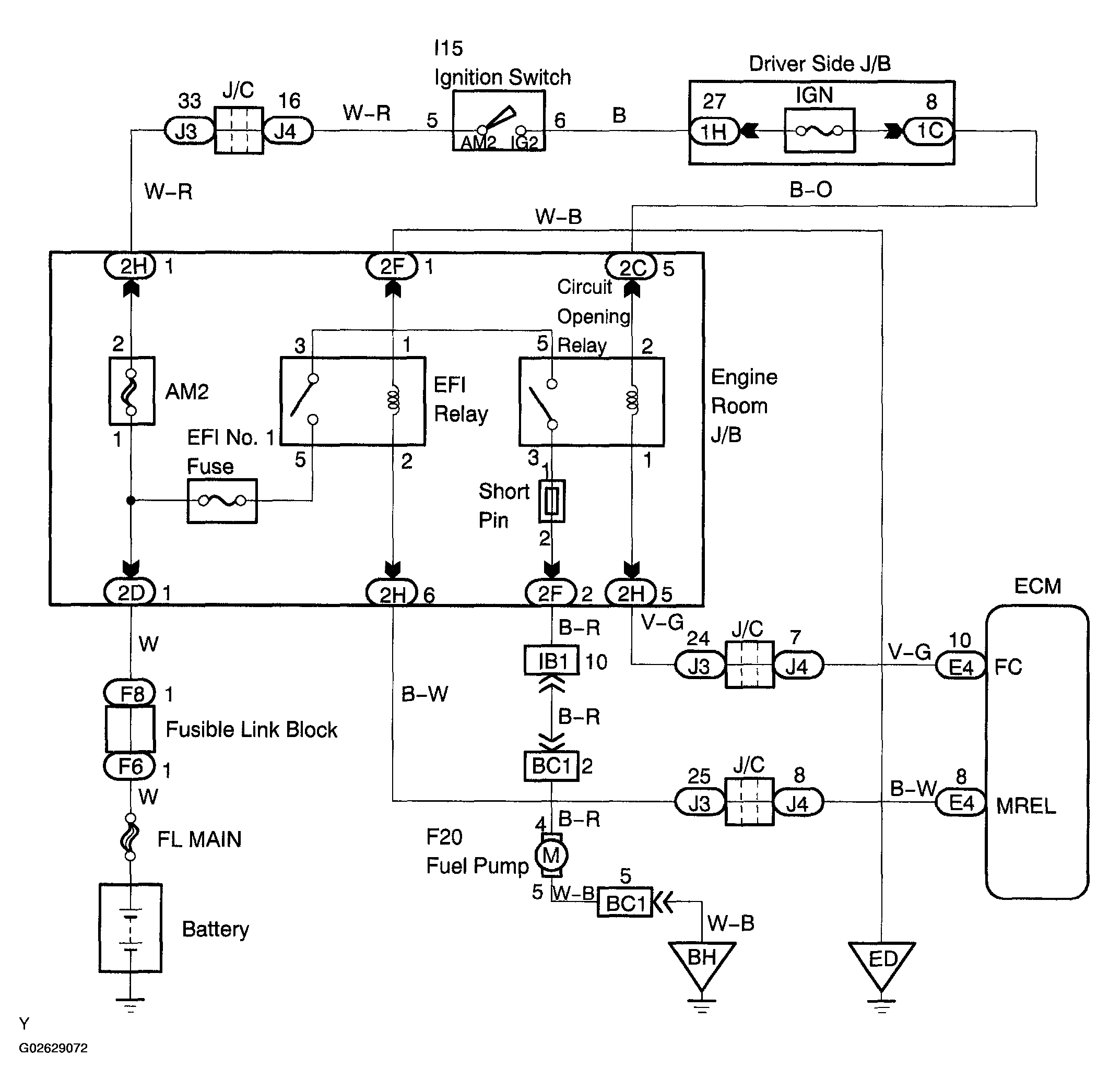

Fig 1: Wiring Diagram - Fuel Pump Control Circuit

G02629072

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
