DTC P0125: Insufficient Coolant Temperature For Closed Loop Fuel Control
>>
Monitor Strategy
Monitor Strategy

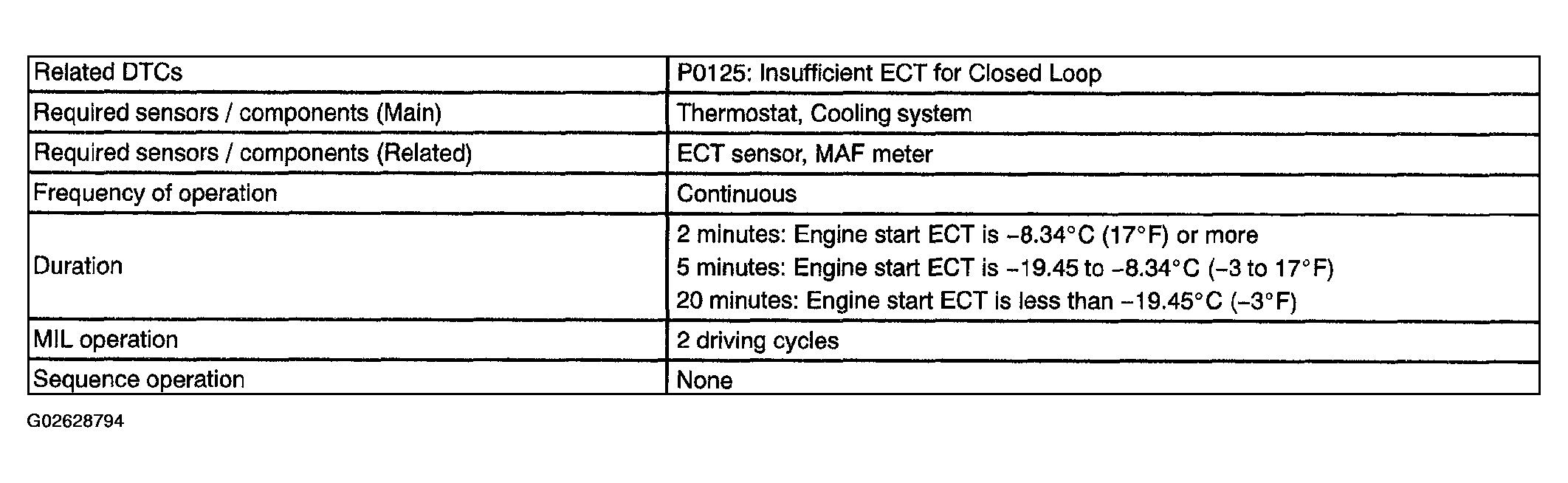

Fig 1: Monitor Strategy Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
