ACIS Control Circuit: Wiring Diagram

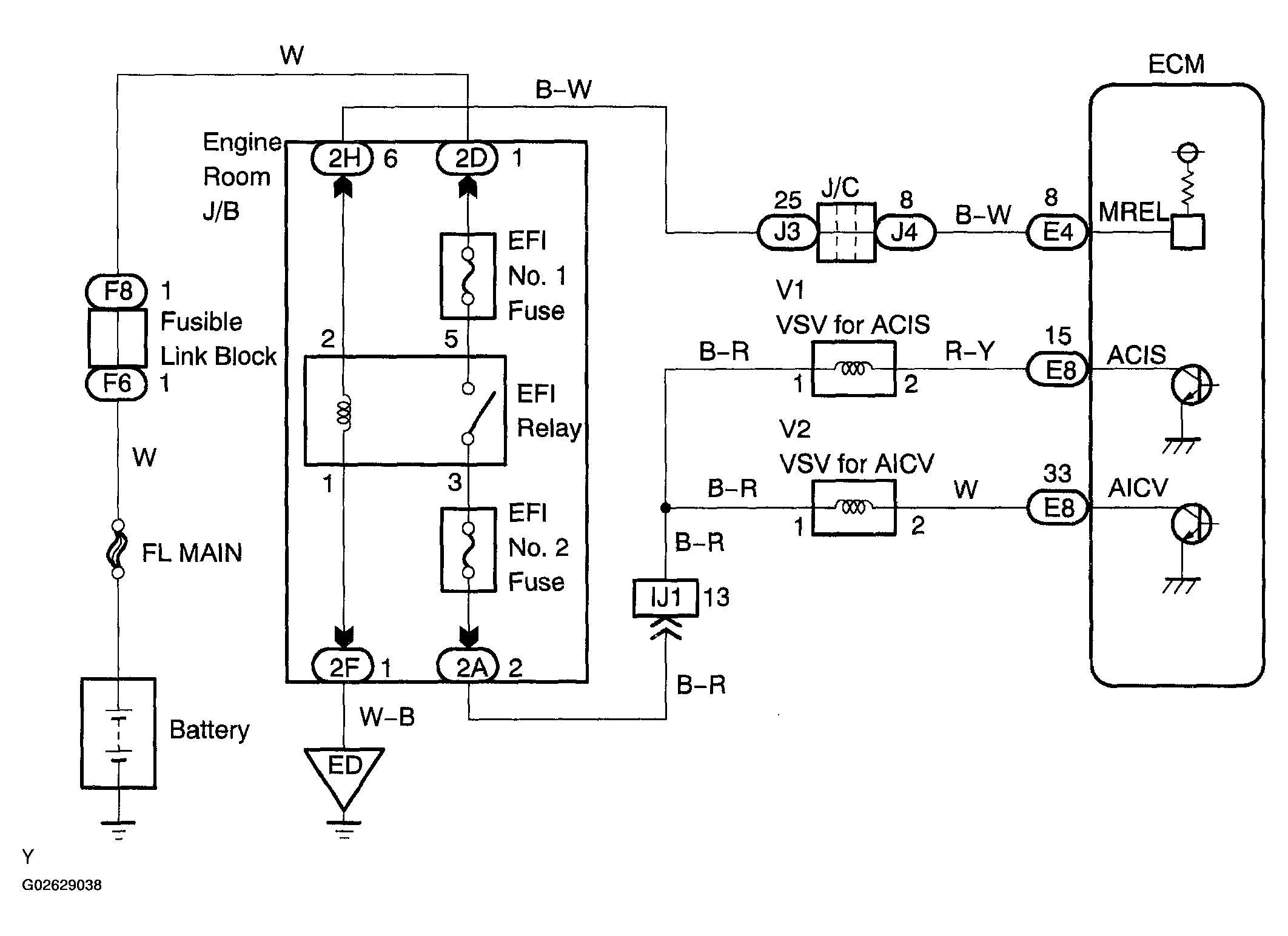

Fig 1: Wiring Diagram - ACIS Control System

G02629038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
