Horn System: Location

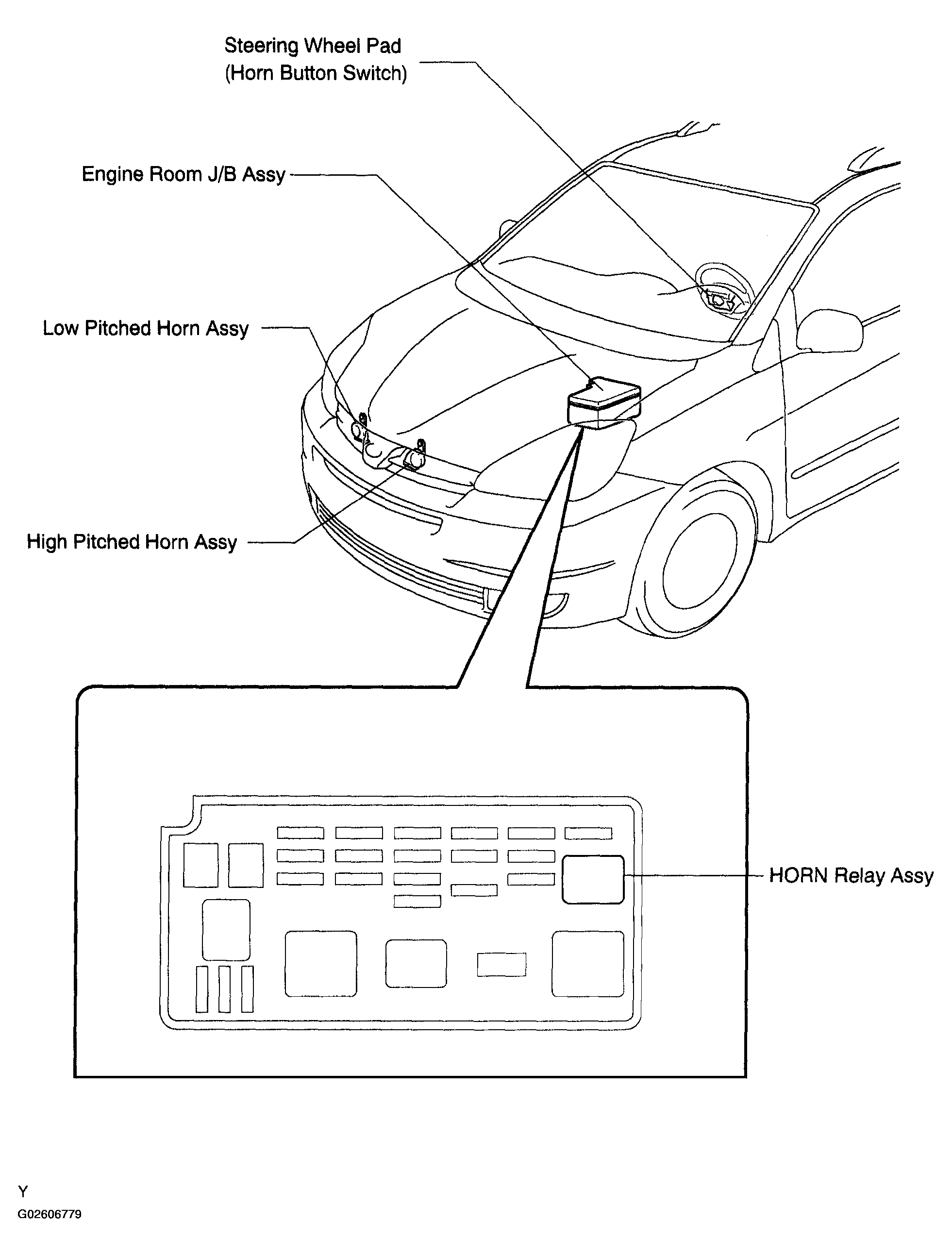

Fig 1: Identifying Horn System Components Location

G02606779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
