Side Window ASSY Rear LH: Replacement

HINT:

• The installation is in the reverse order of the removal.
• On the RH side, use the same procedures as on the LH side.

1. REMOVE REAR NO. 1 SEAT ASSY LH (See  OVERHAUL  )
2. REMOVE RR WINDOW SIDE GARNISH ASSY LH (See  REPLACEMENT  )
   1. Rear door opening trim weatherstrip LH
   2. Remove the rope hooks.
   3. Remove the back door scuff plate.
   4. Remove the roof headlining garnish rear.
   5. Remove the rear door scuff plate.
   6. Remove the quarter trim panel assy LH.
   7. Remove the RR window side garnish assy No. 2 LH.
   8. Remove the RR window side garnish assy LH.
3. REMOVE SIDE WINDOW ASSY REAR LH
   1. Disconnect the connectors.
   2. Remove the 2 nuts and 2 bolts.

      Torque:

      Bolt: 5.5 N.m (56 kgf.cm, 49 in.lbf)

   3. Remove the window.

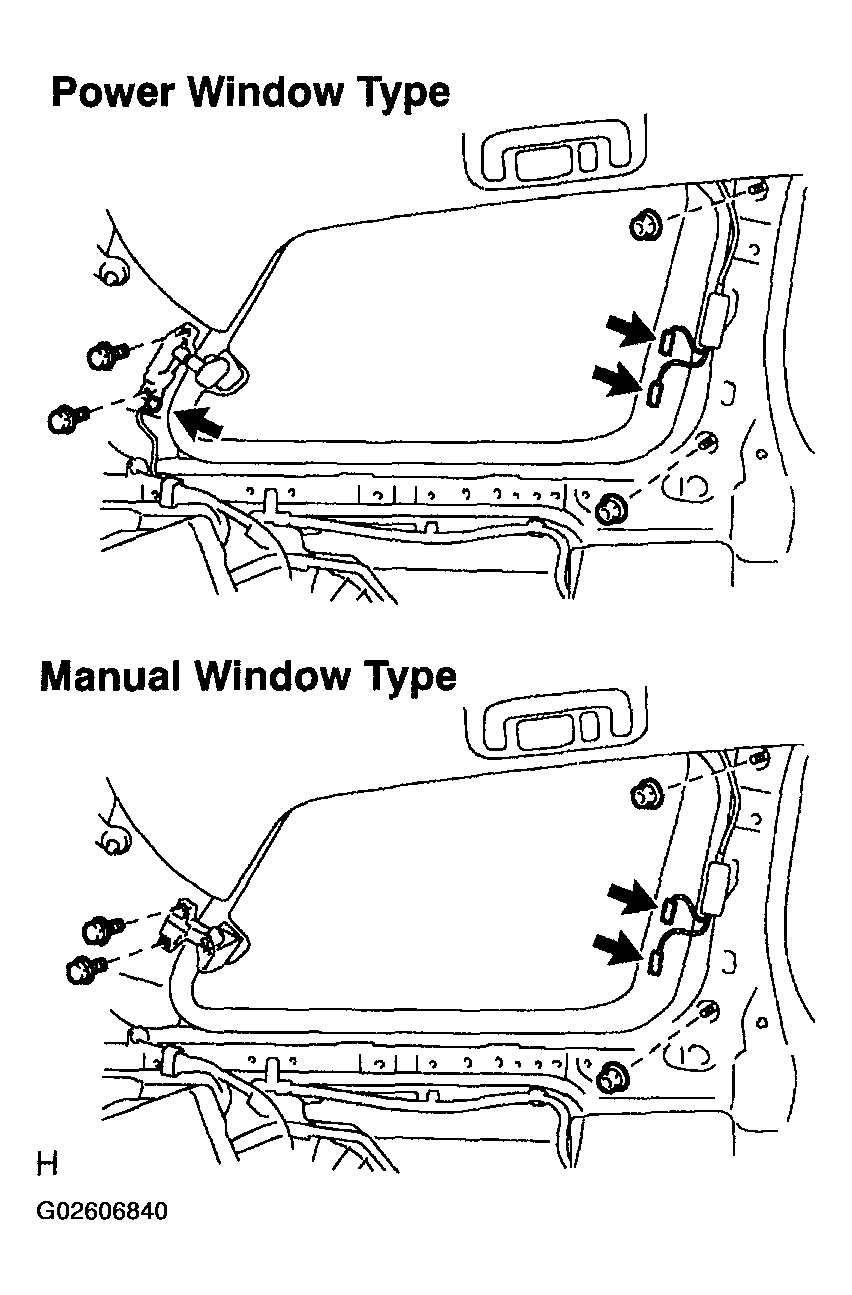

   Fig 1: Removing Side Window Assy Rear LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE POWER VENT WINDOW MOTOR ASSY LH (POWER WINDOW TYPE)
   1. Using a screwdriver, remove the window motor.
      Fig 2: Removing Window Motor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE QUARTER WINDOW LOCK ASSY LH (MANUAL WINDOW TYPE)
   1. Remove the screw and window lock.
6. REMOVE SIDE REAR WINDOW WEATHERSTRIP LH
