Inner Rear View Mirror ASSY: Inspection

1. Inspect operation of the electrochromic inner mirror.
   1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
   2. Attach black colored tape to the forward sensor to prevent it from operating.
   3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

   If the result is not as specified, replace the mirror assy.

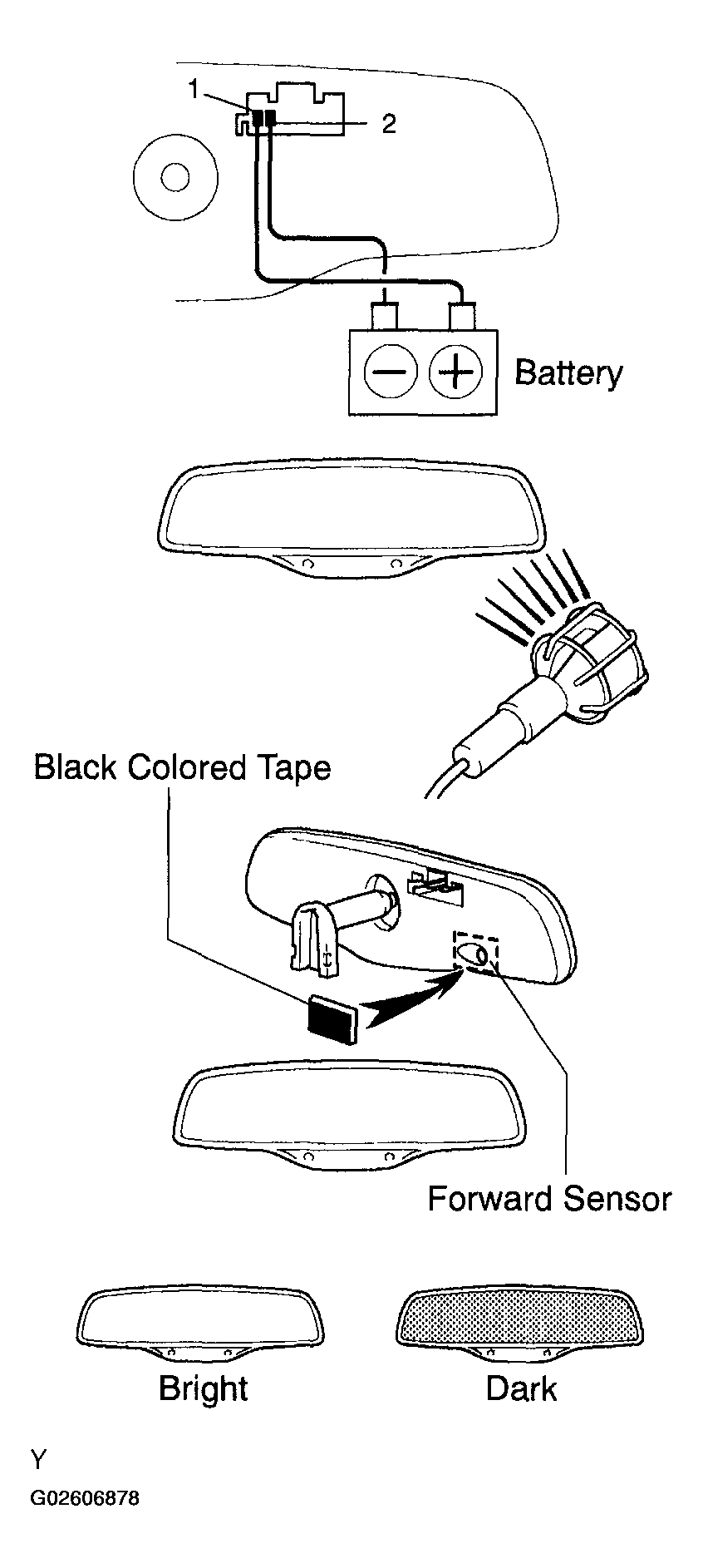

   Fig 1: Inspecting Inner Rear View Mirror Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 3 and Fig 2 .

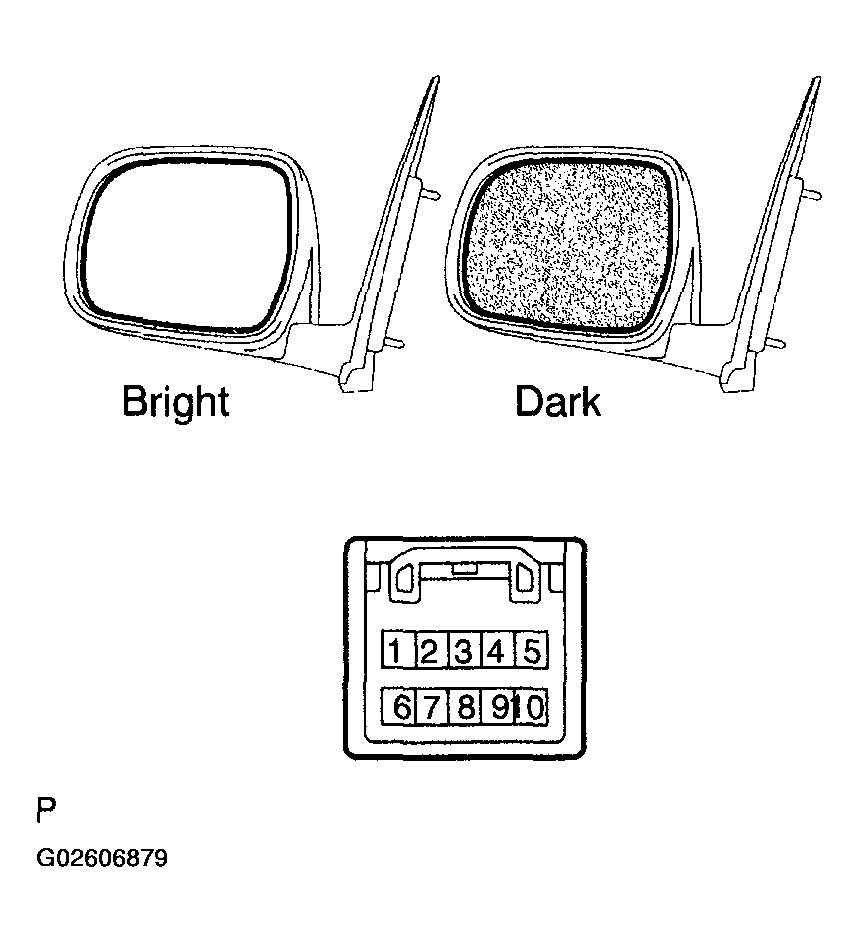

   Fig 2: Inspecting Outer Rear View Mirror Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (LH):

Fig 3: Outer Rear View Mirror Assy LH Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.

1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 5 and Fig 4 .

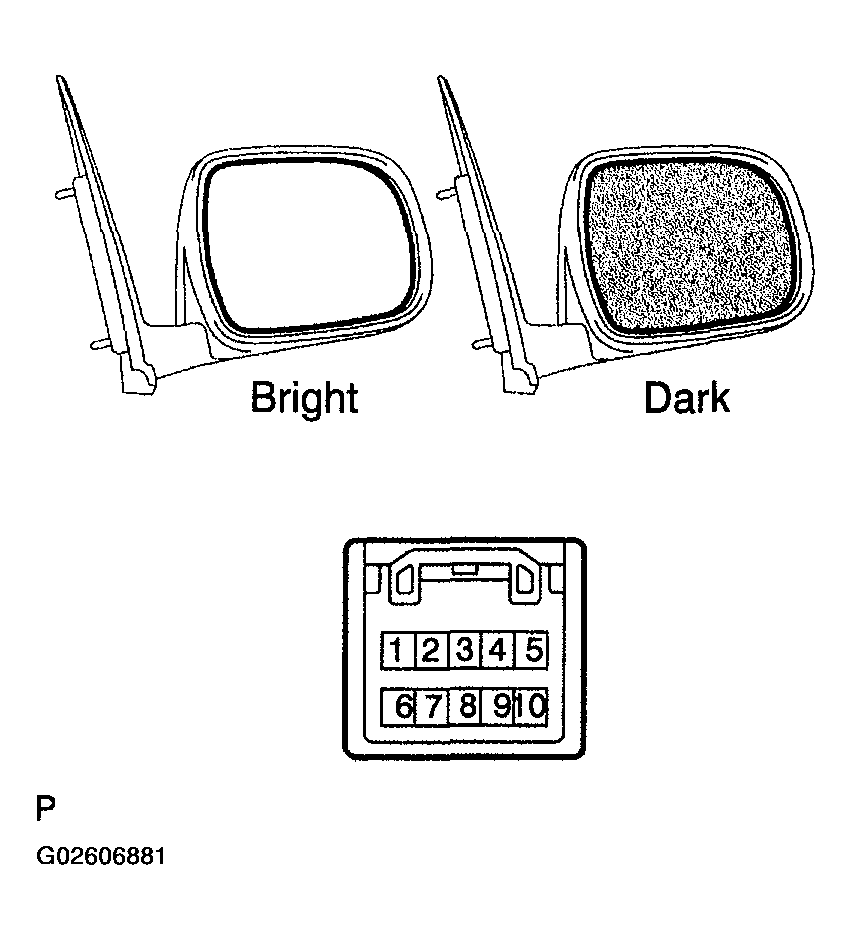

   Fig 4: Inspecting Outer Rear View Mirror Assy RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (RH):

Fig 5: Outer Rear View Mirror Assy RH Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.
