Starting System: Starter: Disassembly

  1. REMOVE FIELD FRAME AND ARMATURE
    1. Remove the nut, and disconnect the lead wire from the magnetic switch terminal.

      Torque: 5.9 N.m (60 kgf.cm, 52 in..lbf)

    2. Remove the 2 through bolts.

      Torque: 9.3 N.m (95 kgf.cm, 82 in..lbf)

      Fig 1: Locating Nut
      G02650781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull out the field frame together with the armature from the magnetic switch assembly.
      NOTE: At the time of assembly, align the protrusion of the field frame with the groove of the magnetic switch.
    4. Remove the O-ring from the field frame.

      HINT:

      At the time of assembly, use a new O-ring.

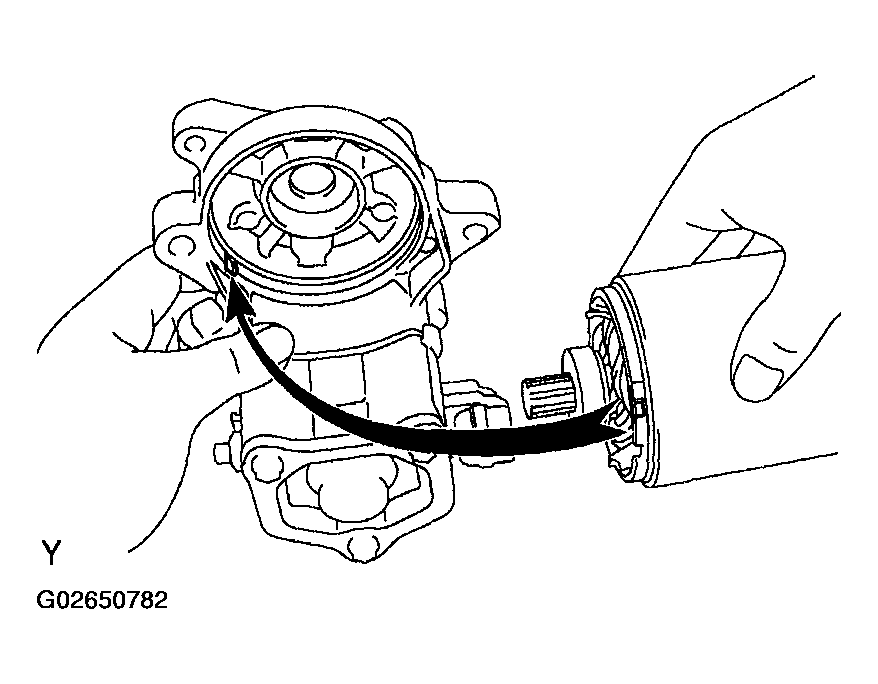

    Fig 2: Pulling Out Field Frame
    G02650782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STARTER HOUSING, CLUTCH ASSEMBLY AND GEAR
    1. Remove the 2 screws.

      Torque: 9.3 N.m (95 kgf.cm, 82 in..lbf)

      Fig 3: Locating Screws
      G02650783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove these parts from the magnetic switch assembly:
      1. Starter housing
      2. Return spring
      3. Idler gear
      4. Bearing
      5. Starter clutch assembly

      HINT:

      At the time of assembly, please refer to the following items. Apply grease to the return spring and insert the return spring into the clutch shaft hole.

    Fig 4: Idemtifying Parts From Magnetic Switch Assembly
    G02650784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEEL BALL

    Using a magnetic finger, remove the steel ball from the clutch shaft hole.

    HINT:

    At the time of assembly, apply grease to the steel ball and insert the steel ball into the clutch shaft hole.

    Fig 5: Removing Steel Ball From Clutch Shaft Hole
    G02650785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BRUSH HOLDER
    1. Remove the 2 screws w/ O-ring and the end cover from the field frame.

      Torque: 3.8 N.m (39 kgf.cm, 34 in..lbf)

    2. Remove the O-ring from the field frame.

      HINT:

      At the time of assembly, use a new O-ring.

      Fig 6: Locating Screws
      G02650786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, hold the spring back and disconnect the brush from the brush holder. Disconnect the 4 brushes, and remove the brush holder.
    NOTE: Check that the positive (+) lead wires are not grounded.
  5. REMOVE ARMATURE FROM FIELD FRAME

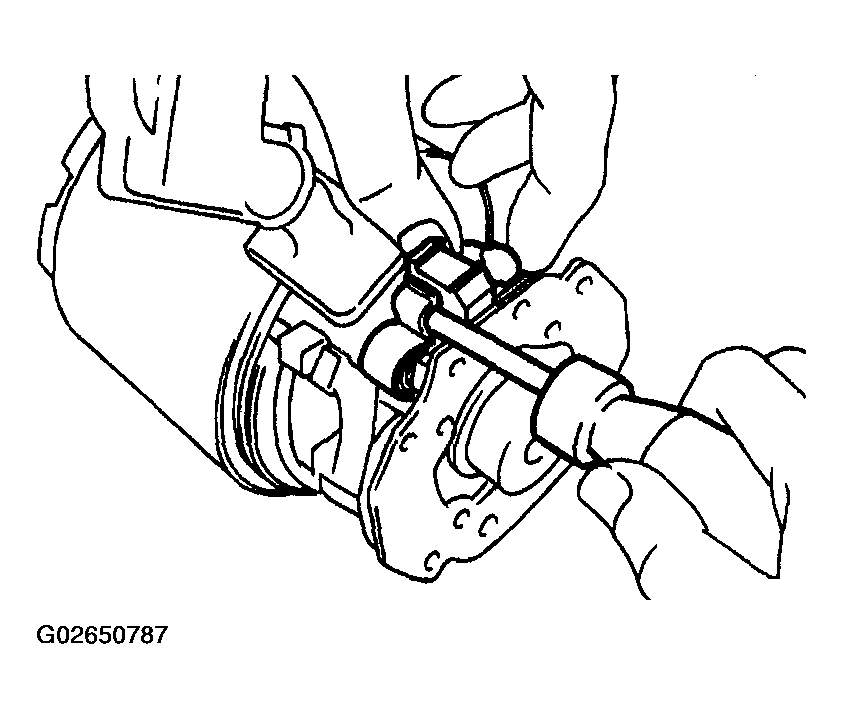

    Fig 7: Disconnecting Brushes, And Removing Brush Holder
    G02650787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
