Tilt Steering Column: Components

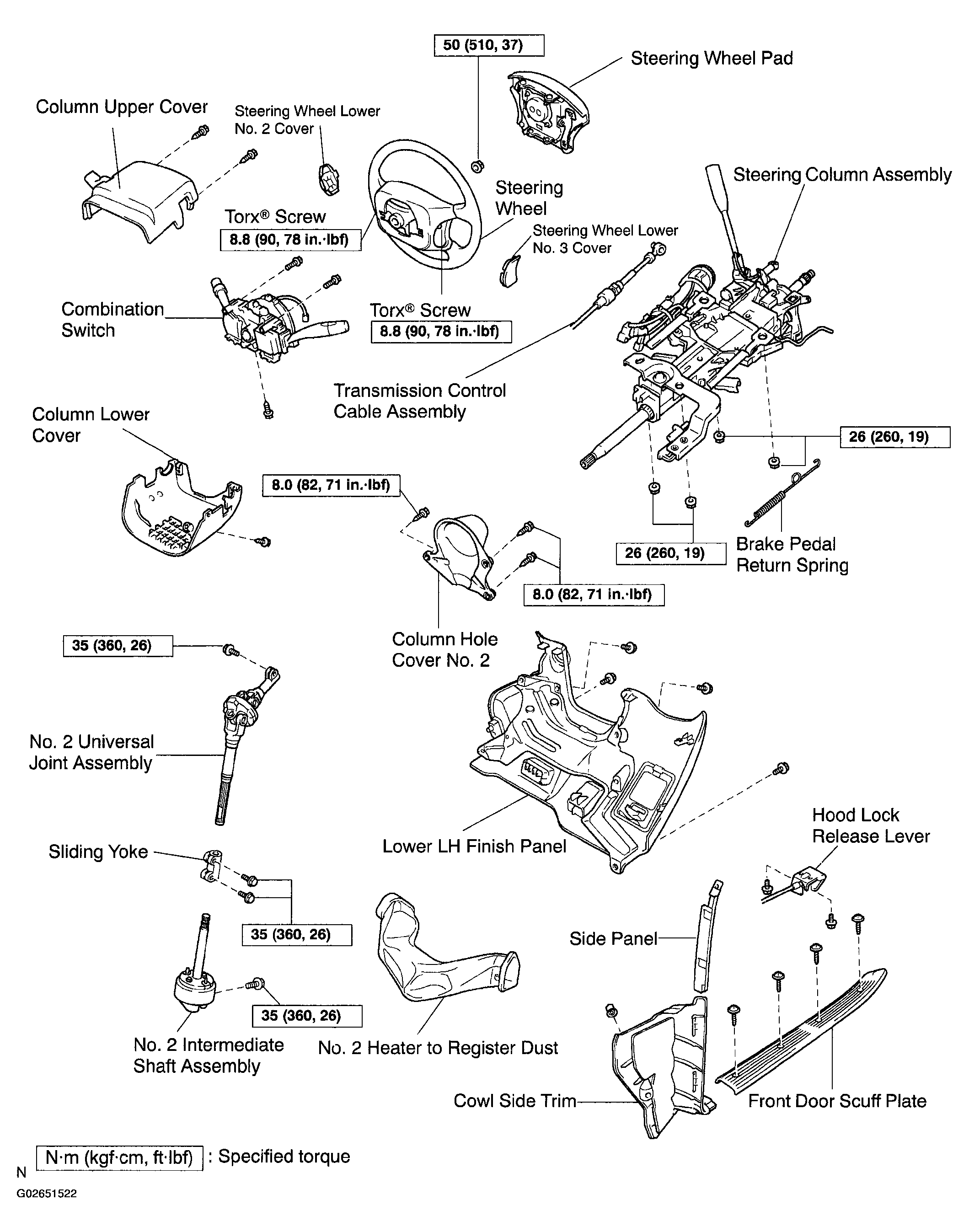

Fig 1: Exploded View Of Tilt Steering Column (1 Of 2)
G02651522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

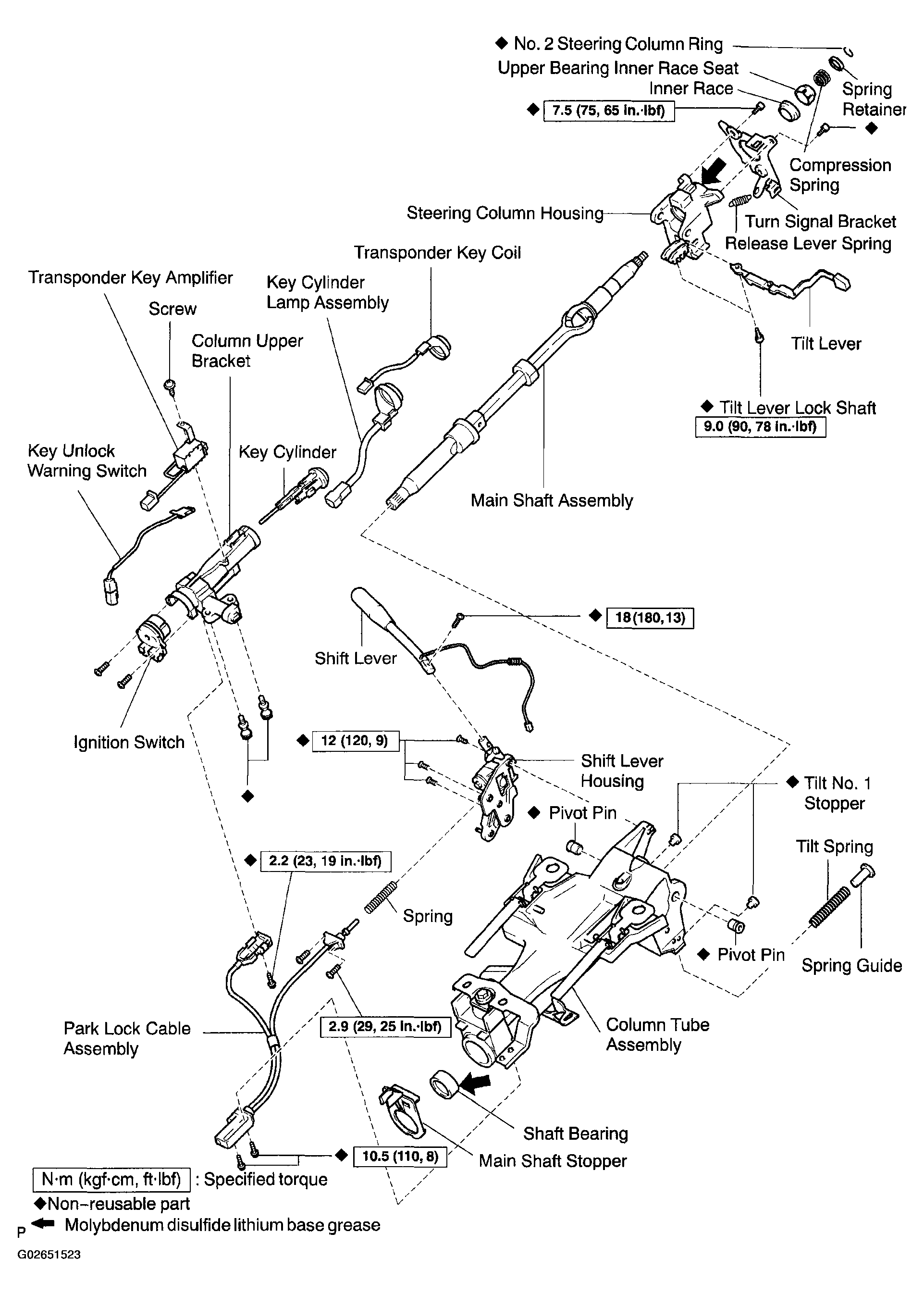

Fig 2: Exploded View Of Tilt Steering Column (2 Of 2)
G02651523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
