ECM Power Source Circuit: Wiring Diagram

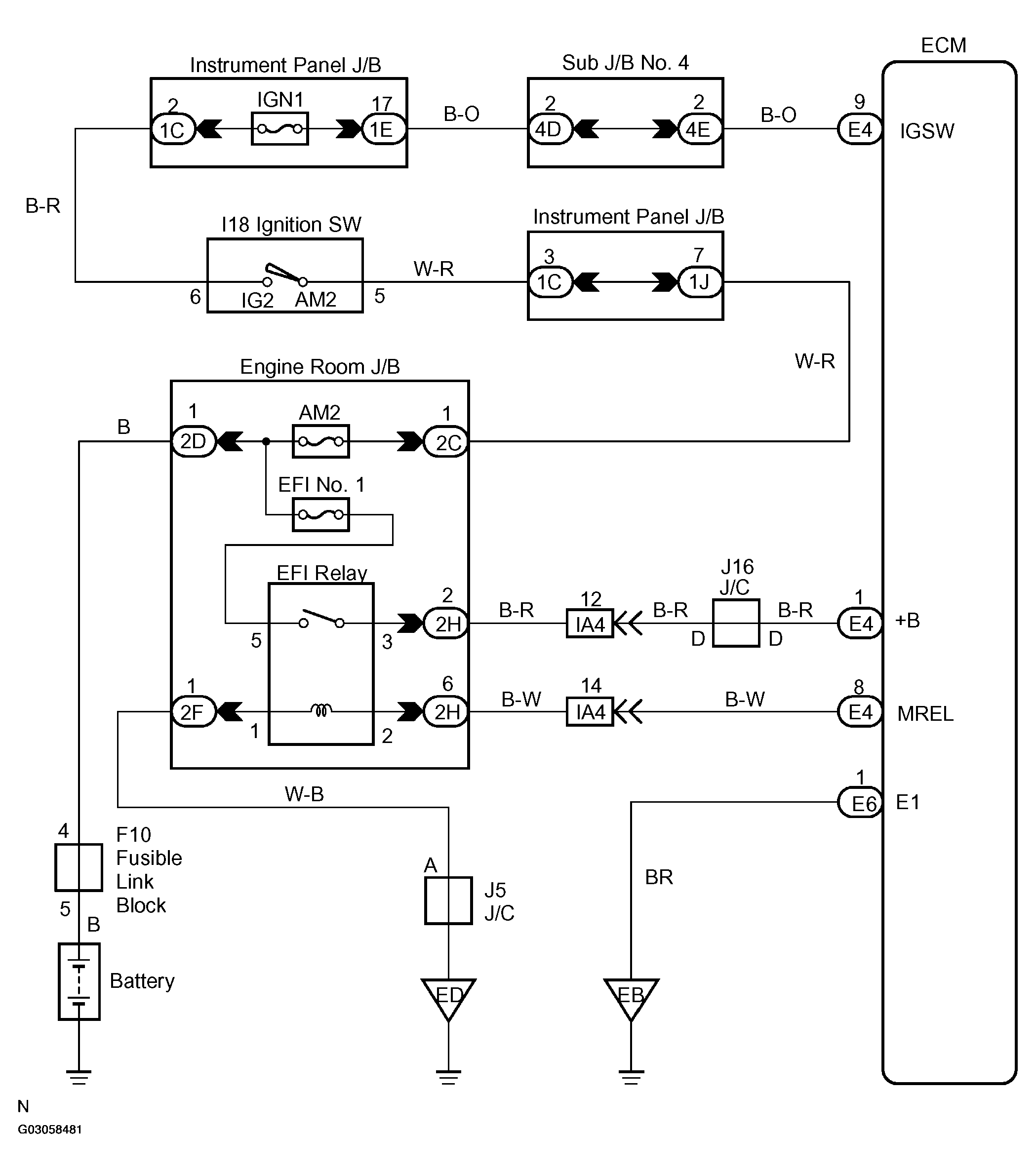

Fig 1: Power Source Wiring Diagram

G03058481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
