On-Vehicle Inspection

  1. REMOVE THROTTLE BODY COVER
  2. INSPECT SYSTEM OPERATION
    1. Inspect the throttle control motor for operating sound.

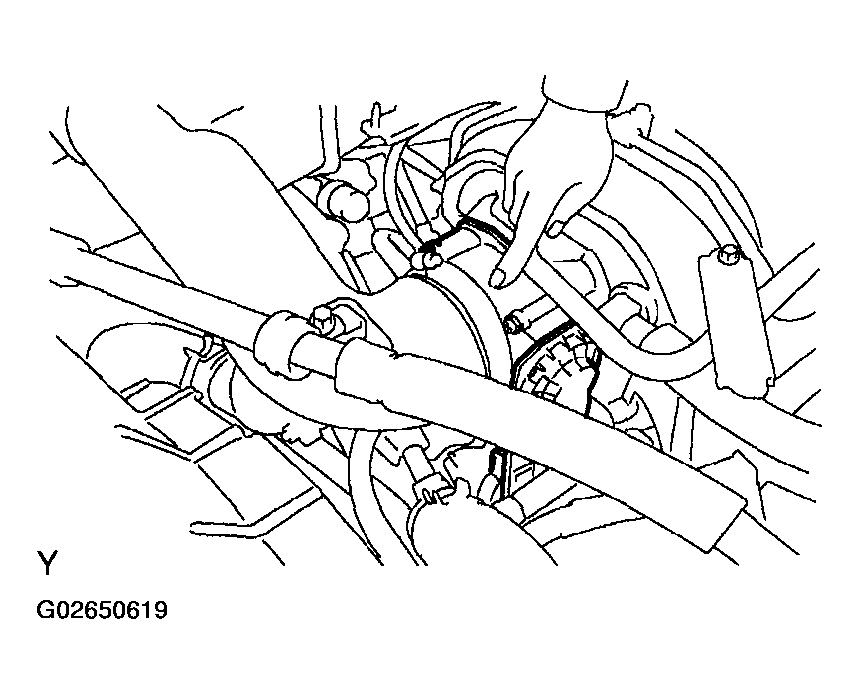

      Fig 1: Inspecting Throttle Control Motor For Operating Sound
      G02650619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Turn the ignition switch ON.
      2. When depressing the accelerator pedal, check the running sound of the motor. Also, check that there is no friction sound.

      If operation is not as specified, check the throttle control motor (see step  3), wiring and ECM.

    2. Inspect the accelerator pedal position sensor.
      1. Connect a hand-held tester to the Controller Area Network Vehicle Interface Module (CAN VIM). Then connect the CAN VIM to the Date Link Connector 3 (DLC3).

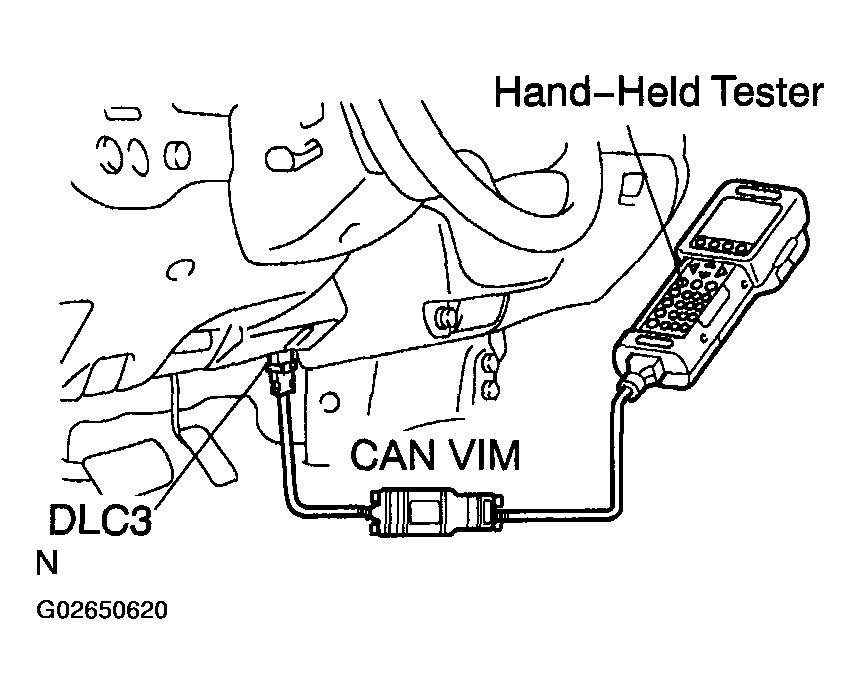

        Fig 2: Connecting Hand-Held Tester To Date Link Connector (DLC3)
        G02650620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check that the MIL does not light up.
      3. When turning the accelerator pedal position sensor lever to the full-open position, check that the throttle valve opening percentage (THROTTLE POS) of the CURRENT DATA shown the standard value.

        Standard throttle valve opening percentage: 60% or more

      If operation is not as specified, check that the accelerator pedal position sensor (see DTC P2120, P2122, P2123, P2125, P2127, P2128,P2138 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D&E" CIRCUIT LOW/HIGH & INPUT THROTTLE/PEDAL POSITION SENSOR/SWITCH "D&E" VOLTAGE CORRELATION ), wiring and ECM.

      If not using a hand-held tester, measure the voltage between terminals (VTA1-E2, VTA2-E2) of the ECM connector (See DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135: THROTTLE/PEDAL POSITION SENSOR SWITCH "A&B" CIRCUIT LOW/HIGH INPUT & THROTTLE PEDAL POSITION SWITCH "A&B" VOLTAGE CORRECTION ).

    3. Inspect the idle speed.
      1. Start the engine and check that the MIL does not light up.
      2. Allow the engine to warm up to normal operating temperature.
      3. Turn the A/C compressor ON to OFF, and check the idle speed.

        Idle speed (Transmission in neutral): 700 +/- 50 RPM

      NOTE: Perform inspection without an electrical load.
    4. After checking the above (a) to (c), perform the driving test and check that there is no sense of incongruity.
  3. INSPECT THROTTLE CONTROL MOTOR
    1. Disconnect the throttle control motor connector.
    2. Using an ohmmeter, measure the motor resistance between terminals M+ and M-.

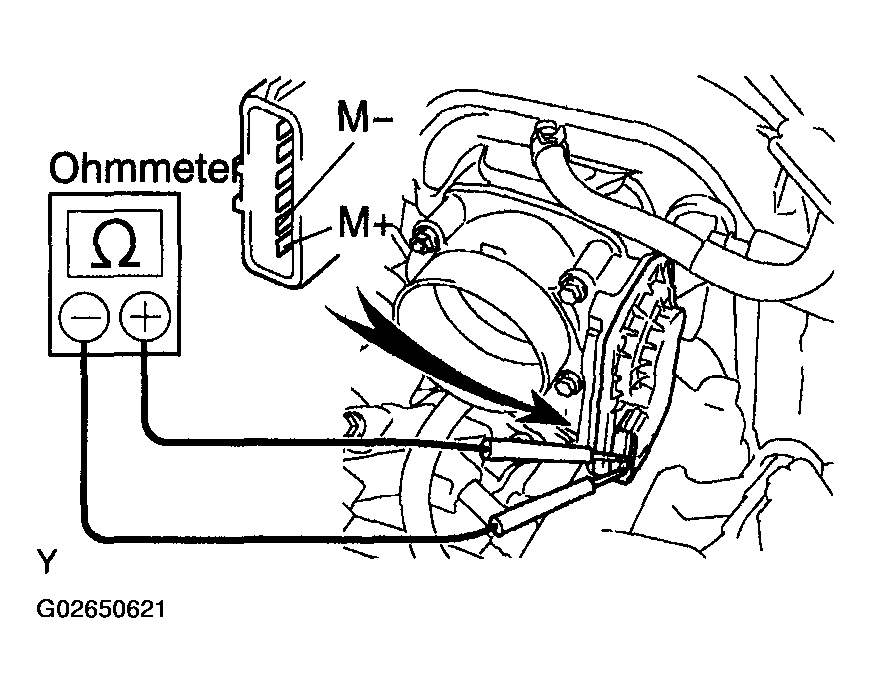

      Fig 3: Measuring Motor Resistance Between Terminals M+ And M-
      G02650621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Motor resistance: 0.3 to 100 Ω at 20° C (68° F)

      If the resistance is not as specified, replace the throttle body assembly (see REMOVAL ).

    3. Reconnect the throttle control motor connector.
  4. INSPECT THROTTLE POSITION SENSOR (See  DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135: THROTTLE/PEDAL POSITION SENSOR SWITCH "A&B" CIRCUIT LOW/HIGH INPUT & THROTTLE PEDAL POSITION SWITCH "A&B" VOLTAGE CORRECTION  )

    If necessary, replace the throttle body assembly (see REMOVAL ).

  5. REINSTALL THROTTLE BODY COVER
