Inspect Fuel Tank And Line

  1. Check the fuel lines for cracks or leakage, and all connections for deformation.
    2. Fig 1: Checking Fuel Lines For Cracks Or Leakage
    G02650609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
  3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
    4. Fig 2: Checking Fuel Tank Vapor Vent System Hoses And Connections For Looseness
    G02650610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Check the filler neck for damage or fuel leakage.
  5. Hose and pipe connections are as shown in the illustration.

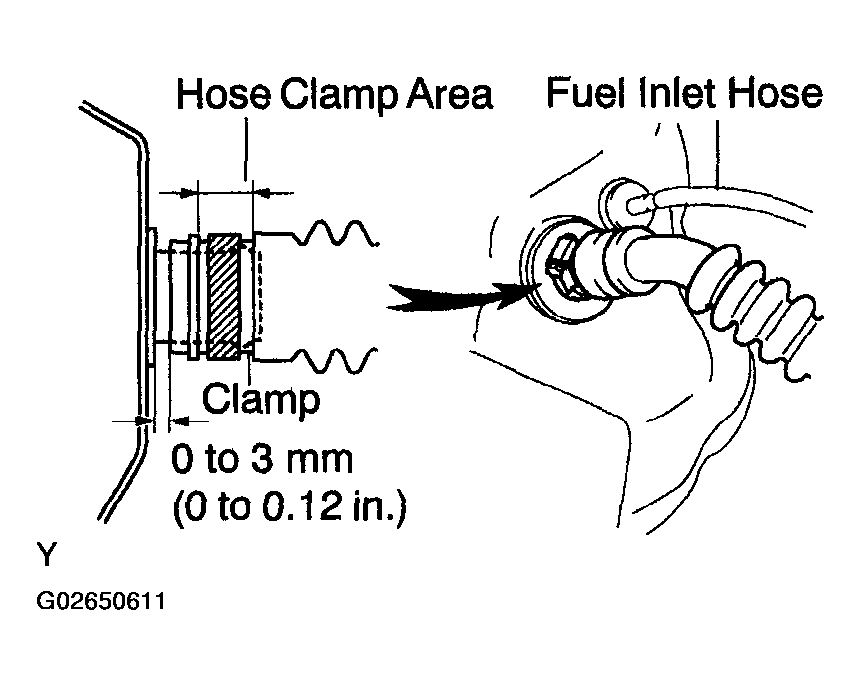

    Fig 3: Checking Hose And Pipe Connections
    G02650611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If a problem is found, repair or replace the parts as necessary.
