Air-Fuel Ratio (A/F) Sensor: Components

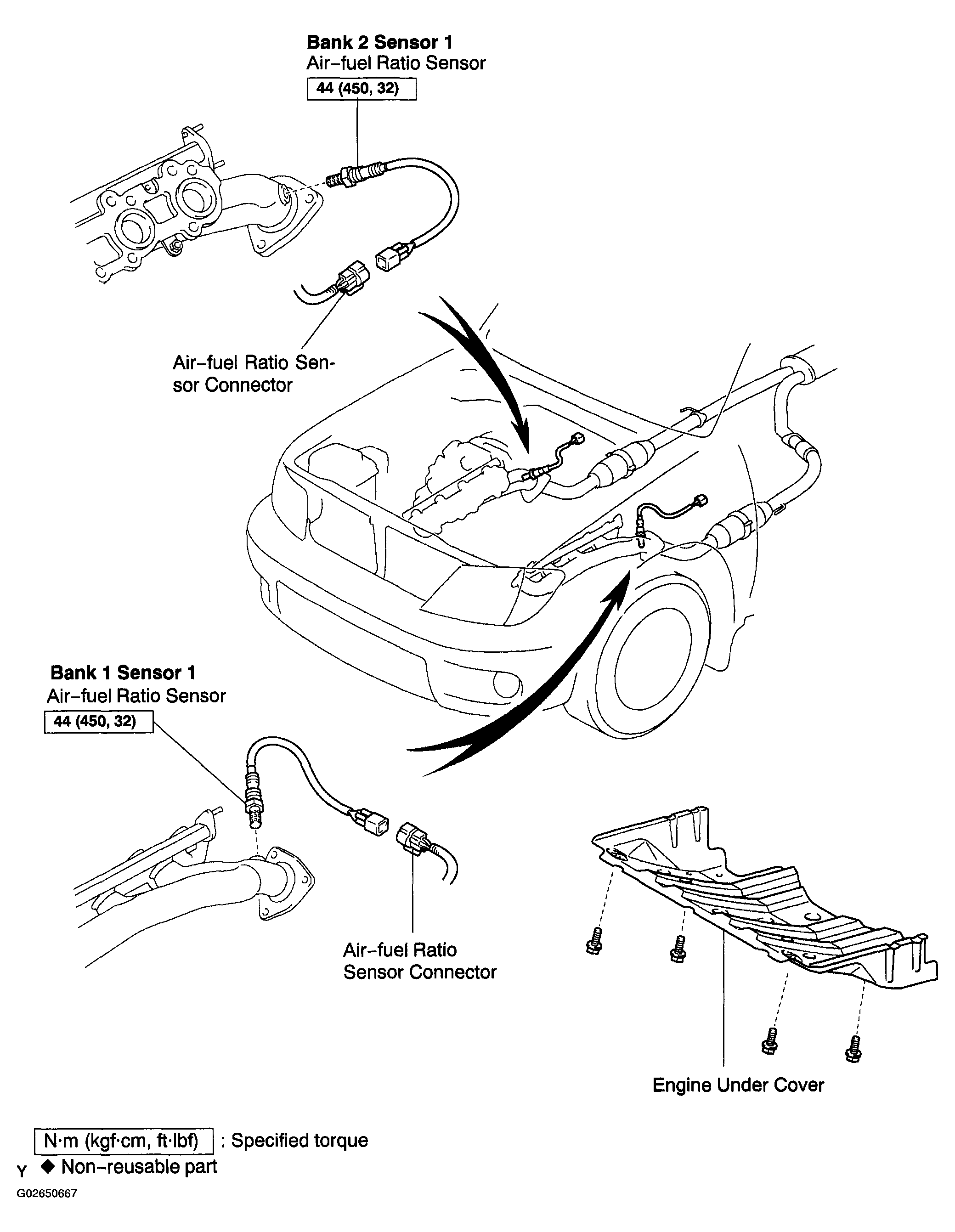

Fig 1: Identifying Air-Fuel Ratio (A/F) Sensor Components

G02650667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
