Acoustic Control Induction System (ACIS): Removal

  1. REMOVE THROTTLE BODY COVER
  2. REMOVE INTAKE MANIFOLD ASSEMBLY (See  REMOVAL  )
  3. REMOVE VSV FOR ACIS
    1. Remove the 2 vacuum hoses from the VSV.
    2. Remove the bolt and VSV from the intake manifold.

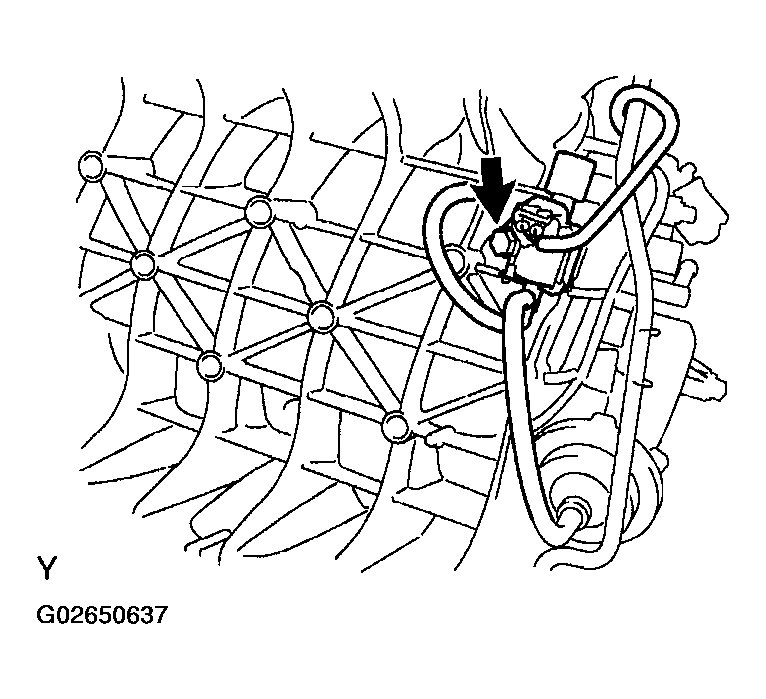

      Fig 1: Removing VSV From Intake Manifold
      G02650637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
