Three-Way Catalytic Converter (TWC) System: Components

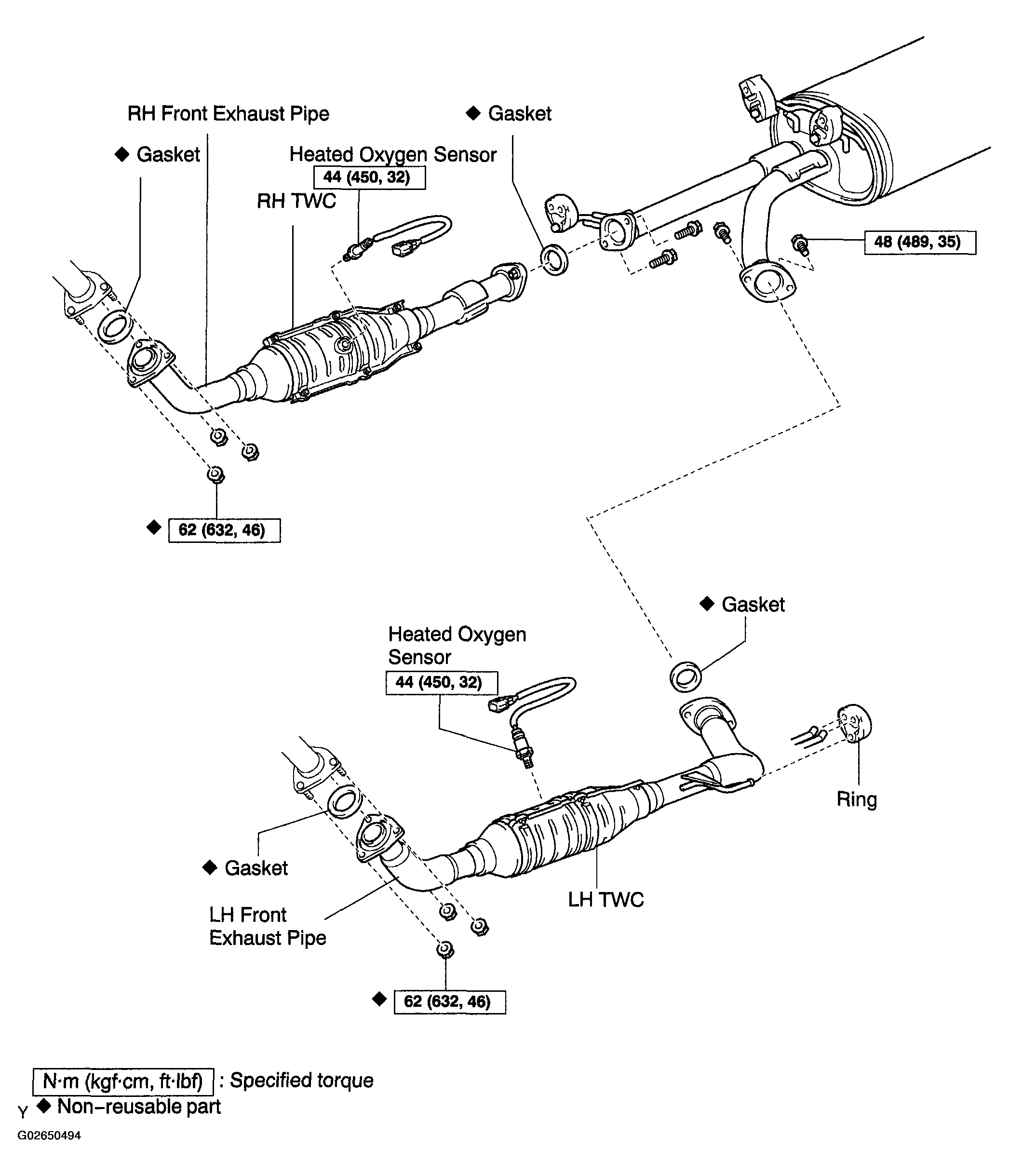

Fig 1: Identifying Three-Way Catalytic Converter System Components

G02650494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
