Positive Crankcase Ventilation (PCV) System: Components

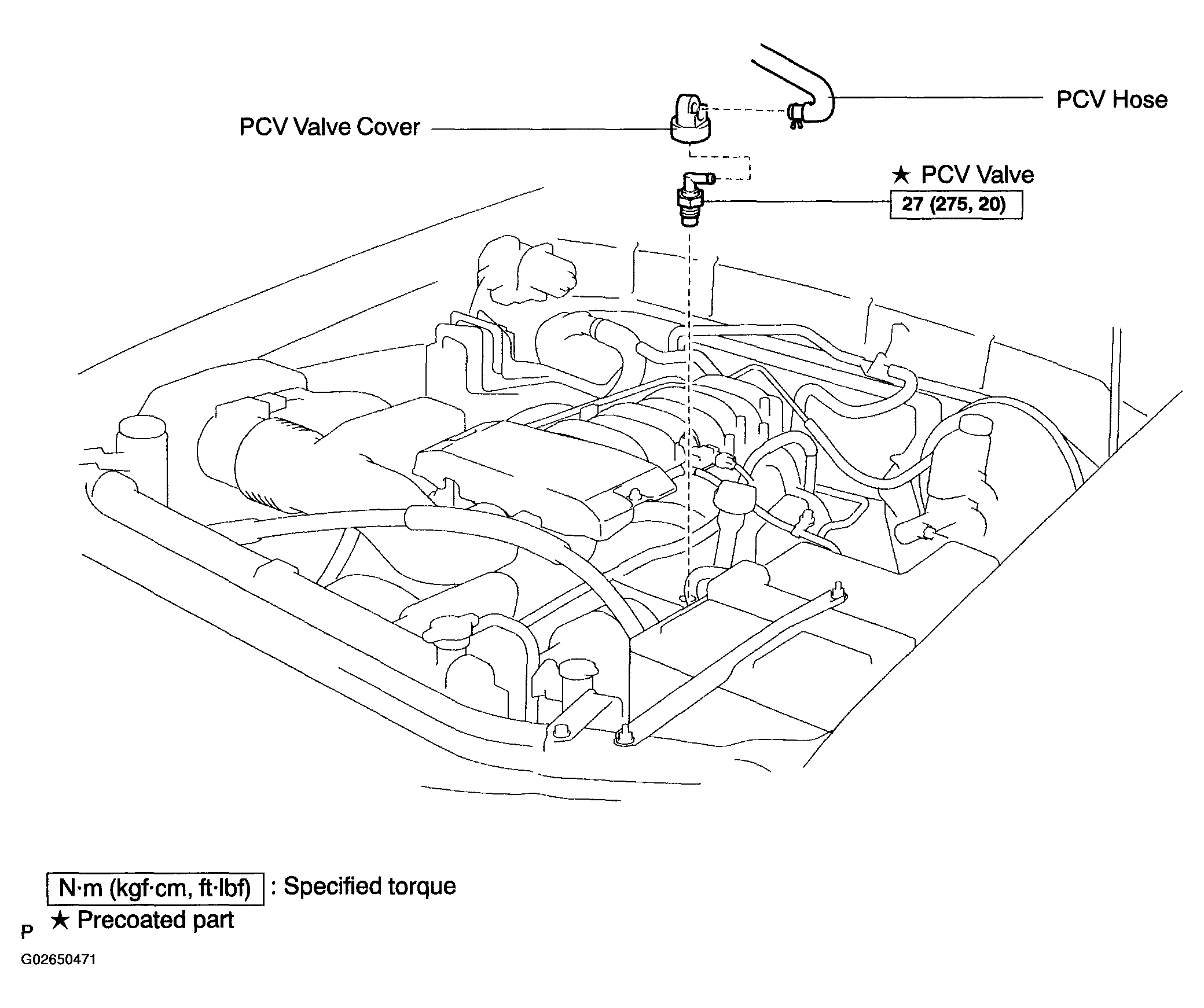

Fig 1: Identifying Positive Crankcase Ventilation Valve Cover And Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
